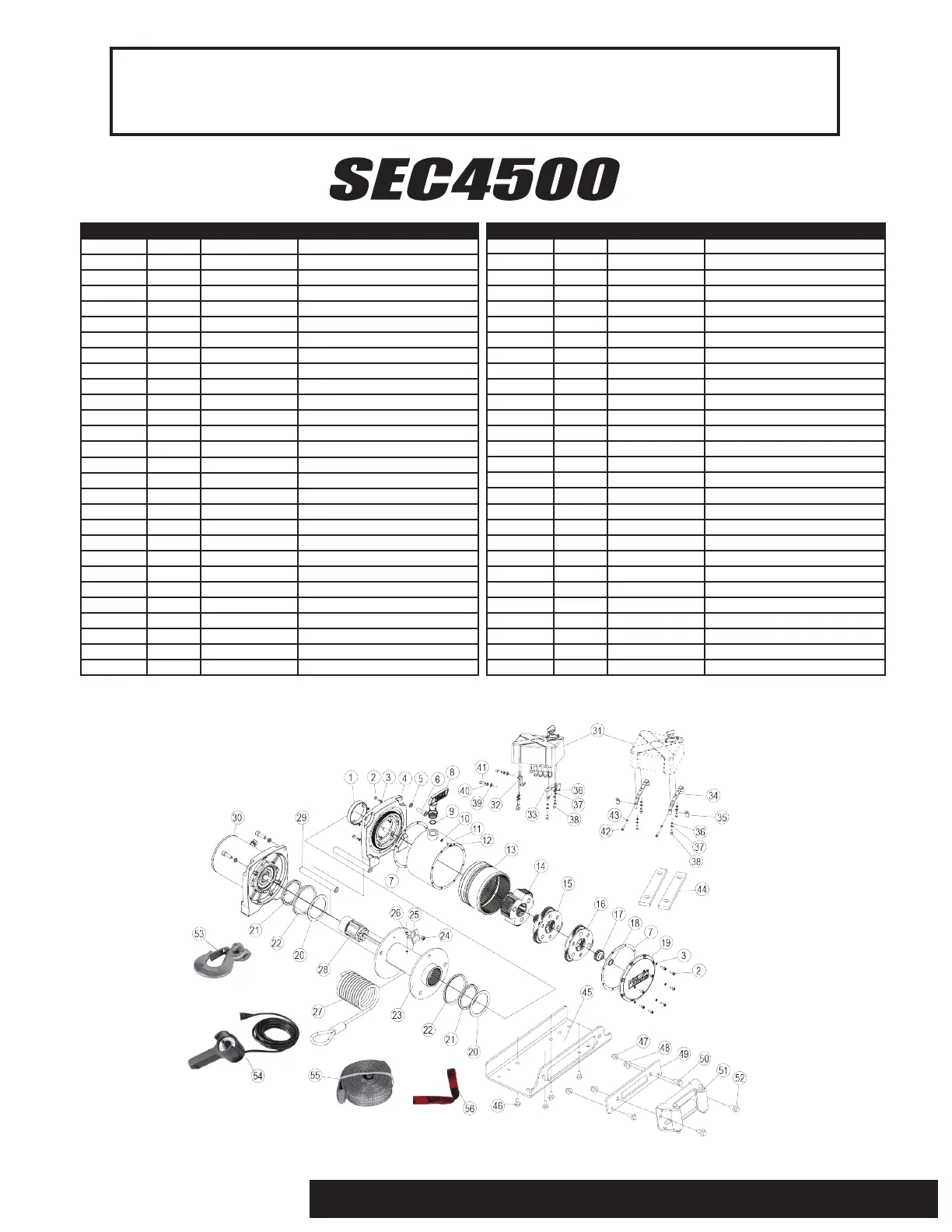

PARTS BREAKDOWN & ASSEMBLY
2121 Blount Road Pompano Beach, FL 33069 MileMarker.com 1.800.886.8647PAGE 21
ITEM QTY PART# DESCRIPTION
1 1 77-50141W-01 Dry Bearing
2 16 77-50141W-02 Screw M4 x 12
3 16 77-50141W-03 Spring Washer M4
4 1 77-50141W-04 End Bearing
5 4 77-50141W-05 Spring Washer M8
6 4 77-50141W-06 Screw M8 x25
7 2 77-50141W-07 Gasket
8 1 77-50141W-08 Clutch Handle
9 1 77-50141W-09 Seal
10 1 77-50141W-10 Spring Washer
11 1 77-50141W-11 Gear Ring
12 1 77-50141W-12 Retaining Screw
13 1 77-50141W-13 Gear Ring-input/intermediate
14 1 77-50141W-14 Gear Carrier Assy-output
15 1 76-50256BW-15 Gear Carrier Assy-intermediate
16 1 76-50256BW-16 Gear Carrier Assy-input
17 1 76-50256BW-17 Gear-input sun
18 1 77-50141W-18 Gear Bushing
19 1 77-50141W-19 Gear Box Cover
20 2 77-50141W-20 Spacer
21 2 77-50141W-21 Ring
22 2 77-50141W-22 Seal Ring
23 1 76-50141W-23 Drum Assy
24 1 77-50141W-24 Screw
25 1 77-50141W-25 Cable Anchor
26 1 77-50141W-26 Screw
27 1 76-50115BW-27 Cable
28 1 76-50115BW-28 Brake/Shaft Assy
29 2 76-50115BW-29 Tie Bar
30 1 77-50141W-30 Motor End
31 1 77-50141W-31 Solenoid Assy
32 1 77-50141W-32 Solenoid Bracket 1
33 1 77-50141W-33 Solenoid Bracket 2
34 2 77-50141W-34 Solenoid Bracket 3
35 2 77-50141W-35 Solenoid Bracket 4
36 5 77-50141W-36 Washer M6
37 5 77-50141W-37 Spring Washer M6
38 5 77-50141W-38 Screw M6 x 16
39 2 77-50141W-39 Washer M6
40 2 77-50141W-40 Spring Washer M6
41 2 77-50141W-41 Screw M6 x 12
42 2 77-50141W-42 Screw M6 x 16
43 2 77-50141W-43 Spring Washer M5
44 1 76-50115BW-44 Risers
45 1 76-50115BW-45 Mount Channel
46 4 77-50141W-48 Screw
47 2 76-50115BW-47 Nut M10
48 2 76-50115BW-48 Nut M12
49 1 76-50115BW-49 Farilead Mount Plate
50 2 76-50115BW-50 Screw
51 1 WH-4 Roller Fairlead
52 4 76-50115BW-53 Screw
53 1 76-50115BW-53 Safety Hook
54 1 77-50141W-50 Switch Assy
55 1 19108 1” x 8’ ATV Strap (Optional)
56 1 77-50141W-51 Hand Strap
