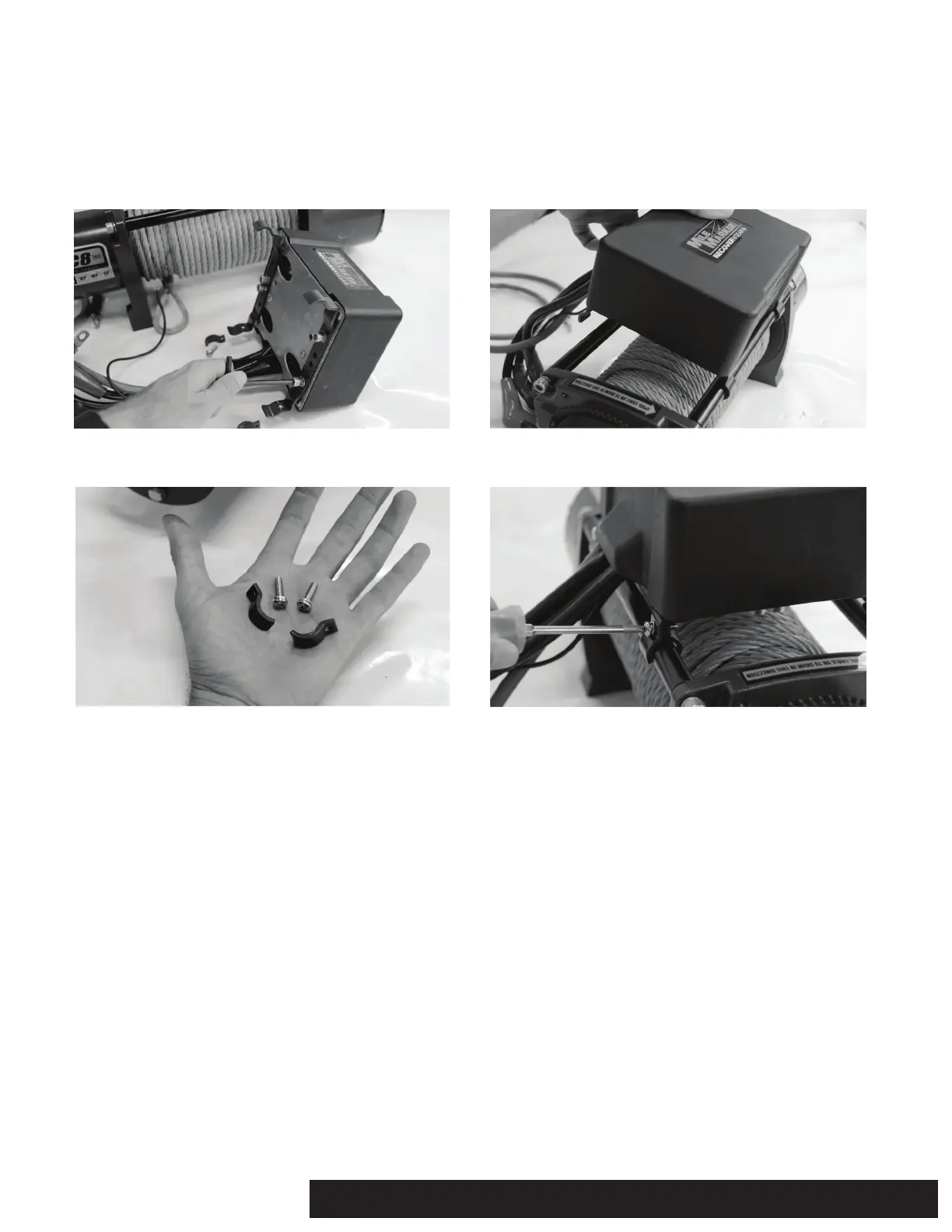

Mounting Control Box on Tiebars
1. Mount the control box to mounting brackets using 10 mm wrench (Fig 2-8).
2. Mount control box on the tie bars by attaching front end first and pushing down to snap in the back end (Fig. 2-9).
3. Locate the two extra pieces for the tie bars mounting brackets (Fig. 2-10).
4. Screw in these pieces to the rear side of the tie bar bracket using a Philips Head Screw Driver (Fig. 2-11).
2-8: Install the mounting bracket to the bottom of the control box with a
10mm wrench.
2-10: Locate the extra pieces for the Tie Bar Mountin Brackets.
2-9: Mount Control Box on the Tie Bars.
2-11: Screw in pieces to the rear of the Brackets.
2121 Blount Road Pompano Beach, FL 33069 MileMarker.com 1.800.886.8647PAGE 7
