Ethos EZ User manual MA073-006 Installation chapter - 16 -

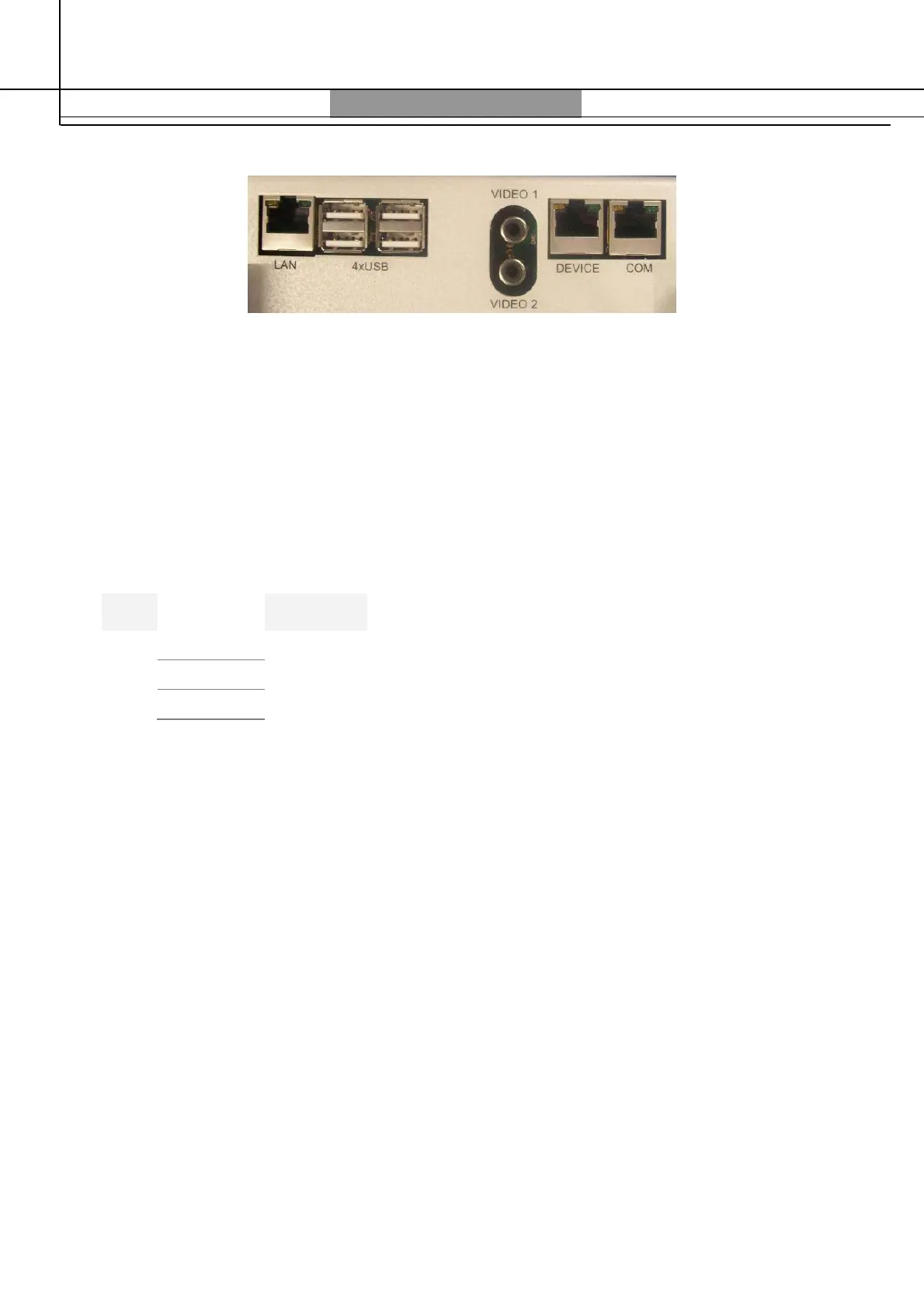

Connections on the back panel
LAN: network connection.
4 x USB: mouse, keypad and storage devices connections (mouse and keypad not included
in the supply).
VIDEO:
connection for an external camera
DEVICE: interface cable RJ45
PIN SIGNAL
2 RxT (In)
5 GND
6 TxD (Out)
COM: the use of these ports as well as the balance connection are described in detail in the
software chapter.
For more info, see the chapter EasyCONTROL.
