Section 3: Product Overview

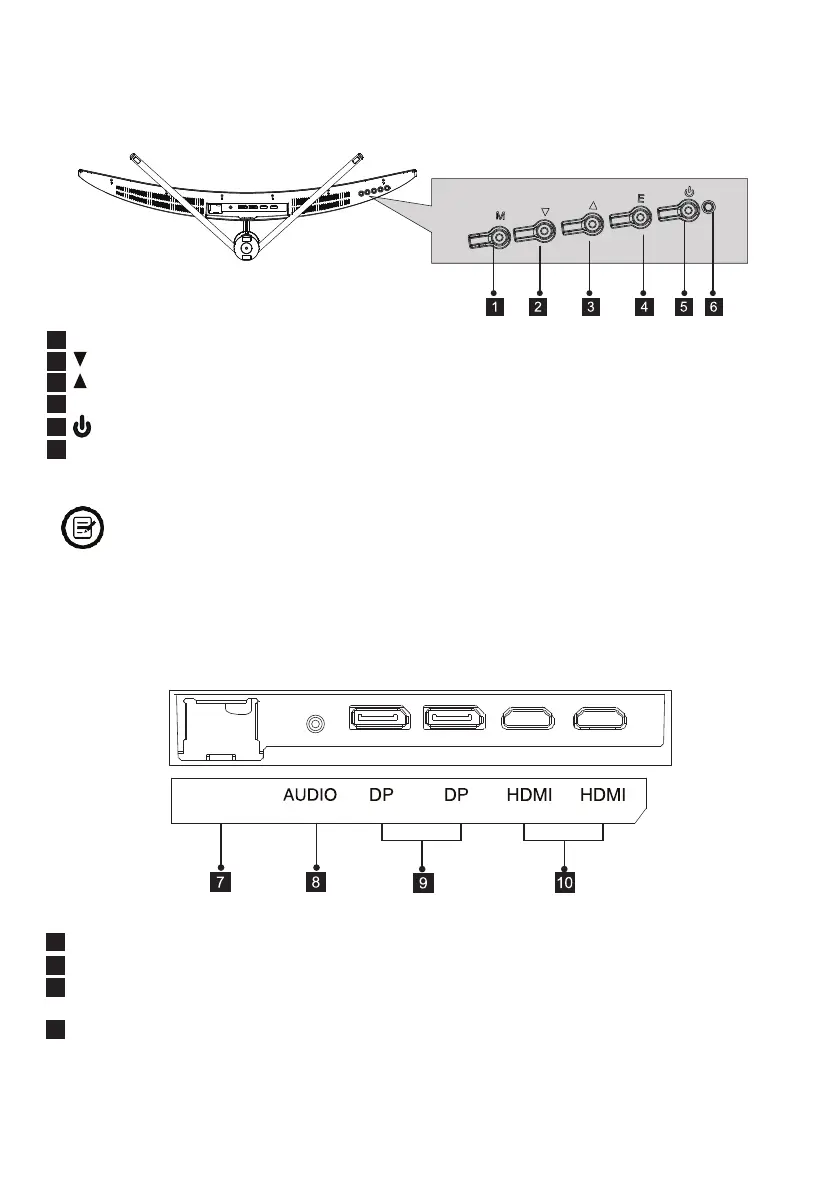

3.1 - Monitor Buttons
M Button Menu: Press to view the OSD menu or access the sub-menus.
Down Button: Press to go down in the menus.
Up Button: Press to get into the menus.
E Exit Button: Press to exit.
On / Off Button: Press to turn on / off the monitor.
LED indicator: Changes color to indicate the status. See section 8.
The E button can also be used to switch between the color schemes "Limit" an
d "Full" when a
compatible graphics card and HDMI or DP connections are used.
3.2 - Monitor Ports
Audio output: Insert the audio cable for outputting audio signals.
DP connector: Insert one end of the cable in the DP computer DP output and connect the other
end in the DP port monitor.
9 HDMI Connectors: Insert one end of the HDMI cable into the computer's HDMI output and connect
the other end into the HDMI port of the monitor.
Power Conn
ector: Insert the power cable to power the monitor.
(1.4)
(1.4)
(2.0)
(2.0)
1
2
3
4
5
6
AC
7
8
9
10
EN-10
