Section 3: Product Overview

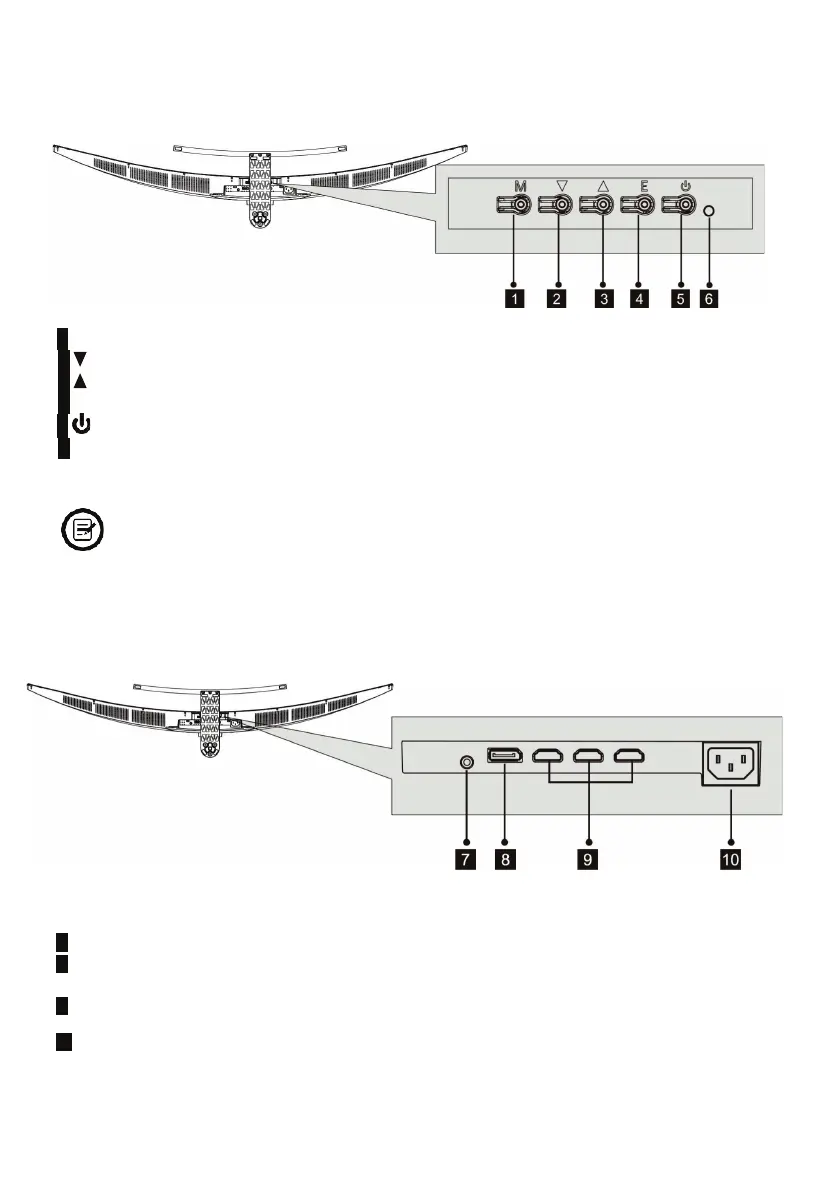

3.1 - Monitor Buttons
1
M Button Menu: Press to view the OSD menu or access the sub-menus.
2
Down Button: Press to go down in the menus.
3
Up Button: Press to get into the menus.
4
E Exit Button: Press to exit.
5
On / Off Button: Press to turn on / off the monitor.
6LED indicator: Changes color to indicate the status. See section 8.
The E button can also be used to switch between the color schemes "Limit" and "Full" when a
compatible graphics card and HDMI or DP connections are used.
3.2 - Monitor Ports
7 Audio output: Insert the audio cable for outputting audio signals.
8 DP connector: Insert one end of the cable in the DP computer DP output and connect the other
end in the DP port monitor.
9 HDMI Connectors: Insert one end of the HDMI cable into the computer's HDMI output and connect
the other end into the HDMI port of the monitor.
10 Power Connector: Insert the power cable to power the monitor.
