EN-11
Section 4: base installation
Hold the foam in the monitor before attaching the base.
1. O
pen the package, remove the product with the foam still attached, and place it gently on
a
des
k or table.

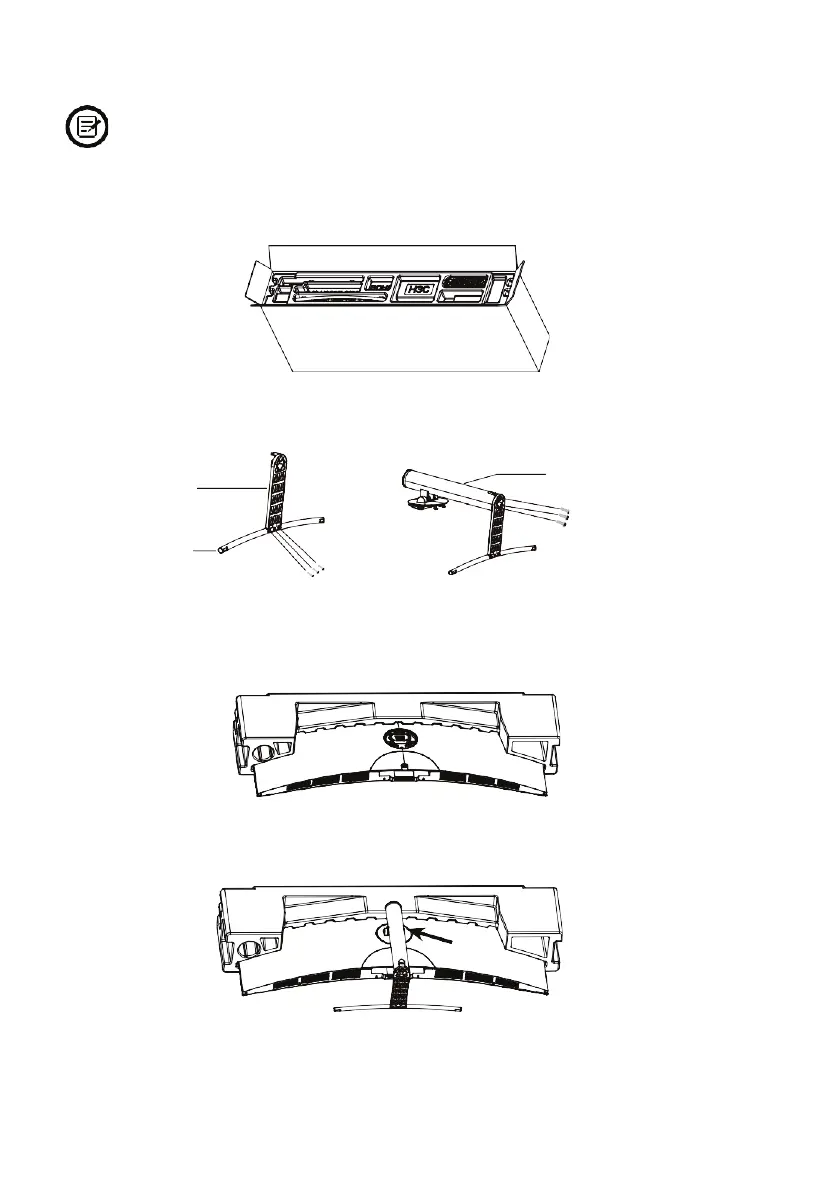

2. Take out the three main parts of the carrier. Then, attach the three screws to secure
the base A and base B, and three screws for securing the base to the stem.
A base
base B
Screw (8 mm x3)
Trunk
Screw (12mm x3)
3. Remove the monitor and remove the element in less foam.
4. Align the base of the foot holder with the opening in the back of the monitor and gently insert
the support. The elements must snap into place.
To Next Page
