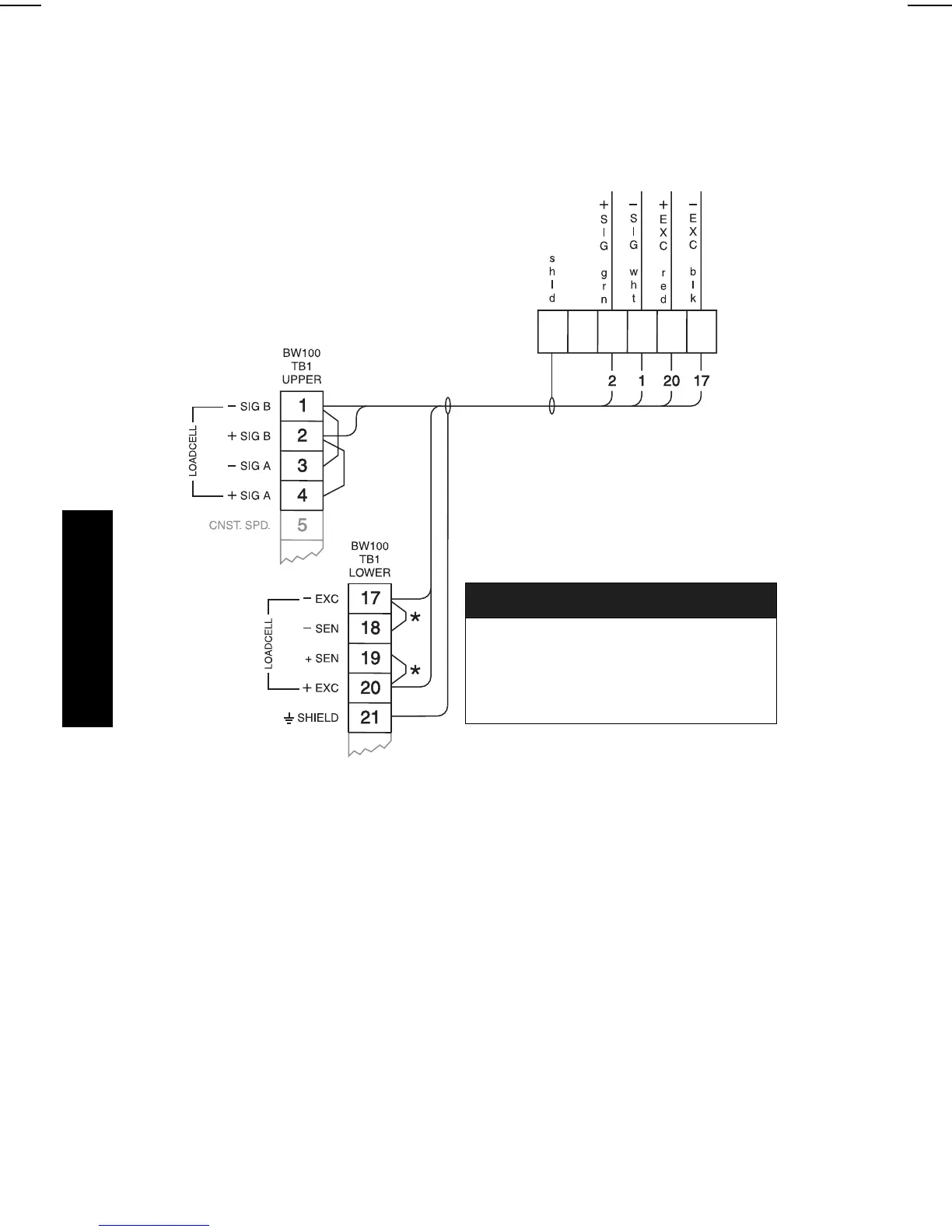

LOAD CELL - SINGLE
*
Where separation between the BW100 and belt scale exceeds 150 m (500 ft) :
» remove the jumpers BW100 TB1 – 17/18 and TB1 19/20
» run additional conductors from :
» BW100 TB1 – 18 to scale ‘– EXC’
» BW100 TB1 – 19 to scale ‘+ EXC’
If load cells are supplied with sense wiring:
:
terminate brown with black = T17
and blue with red = T20
at junction box.
08/24/99
Belt Scale
customer
junction box
INSTALLATION
PL-531 12
To Next Page
