Milltronics XPS-10 - XPS-15 F Series Transducers

Page 10 XPS 10/15 F Series Transducer PL-551

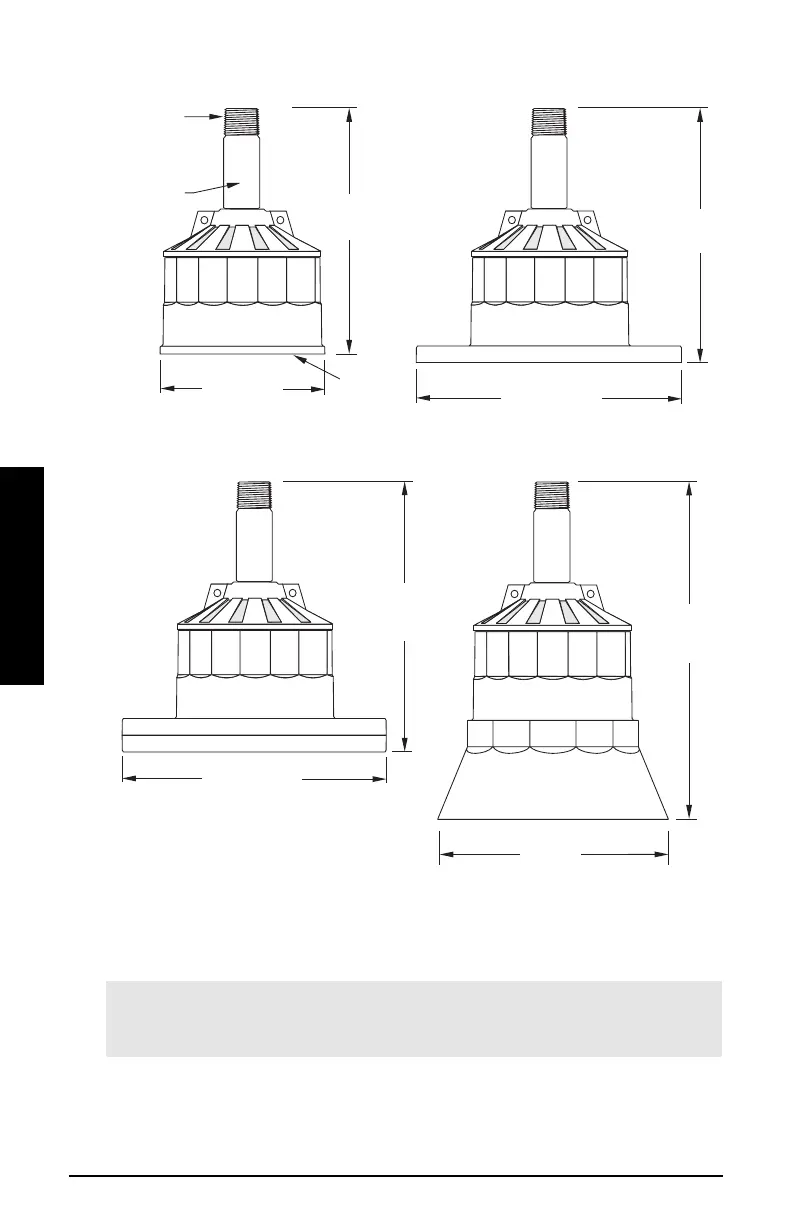

Outline & Dimensions
XPS-15 F Series Transducers
Standard Flange (optional)
Split Flange (optional) Submergence Shield (optional)
Refer to submergence shield instructions
(Milltronics’ manual number PL-530)
Note:
The XPS 15 F comes equipped with a stainless steel coupling suitable for
use in hazardous locations.
radiating
face
185mm
(7.3”)
120mm
(4.7”)
185mm
(7.3”)
to suit ANSI
standards
to suit ANSI
standards
191mm
(7.5”)
nominal
253mm
(10.0”)
158mm
(6.2”)
304
stainless
steel
1” NPT
