PL-551 XPS 10/15 F Series Transducer Page 9

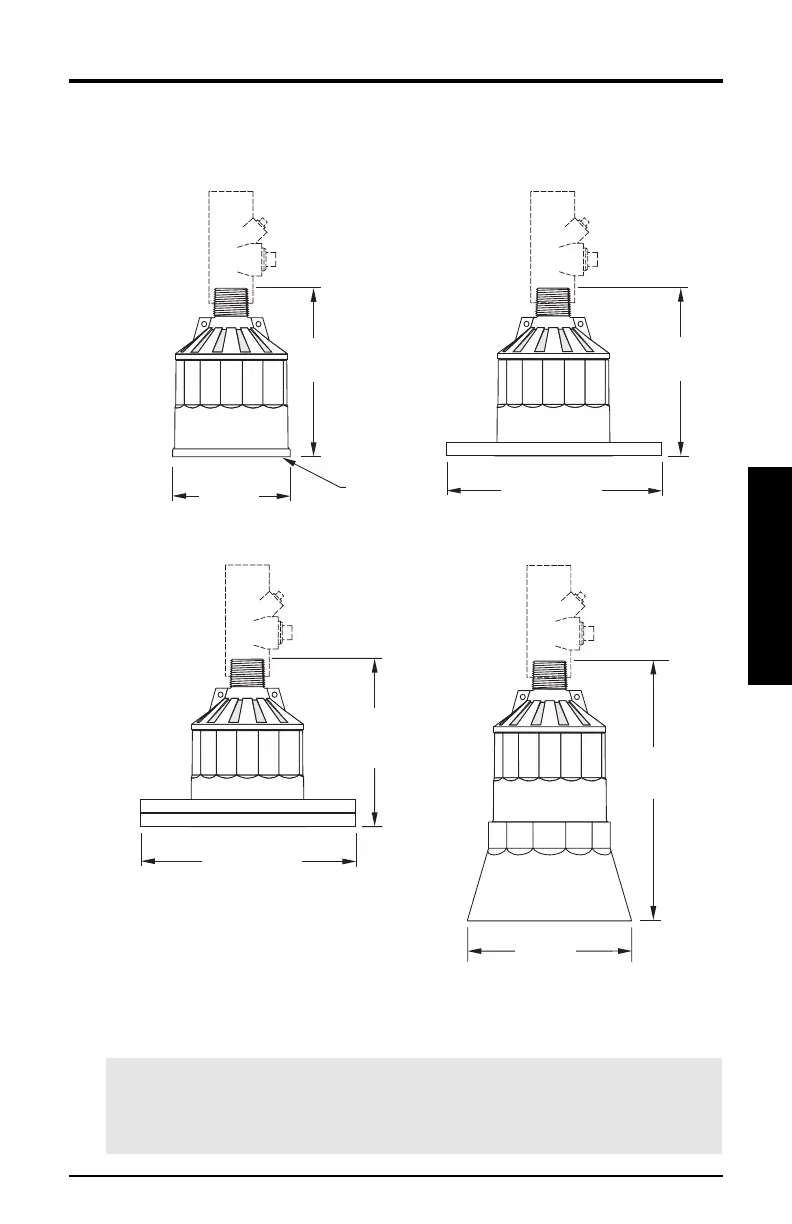

Outline & Dimensions
Outline and Dimensions
XPS 10 F Series Transducers
Standard Flange (optional)
Split Flange (optional) Submergence Shield (optional)
Refer to submergence shield instructions
(Milltronics’ manual number PL-530)
Note:
For the XPS 10 F series transducer, a hazardous seal must be used to
suit hazardous area classification. This seal is
not
supplied by Milltronics.
For more information, refer to page 26.
radiating
face
122mm
(4.8”)
86mm
(3.4”)
122mm
(4.8”)
to suit ANSI
standards
to suit ANSI
standards
128mm
(5.0”)
nominal
152mm
(6.0”)
124mm
(4.9”)
