PL-551 XPS 10/15 F Series Transducer Page 17
Applications
Applications
Notes:
• The transducer is to be used only in the manner outlined in this
instruction manual.
• Normally, the transducer requires no cleaning or maintenance.
However, if performance changes are observed, immediately shut
down the level measurement system and perform a thorough
inspection, especially on the transducer.
• An XPS 10 F Series transducer is shown in these examples. An XPS
15 F transducer can also be used, but no hazardous seal is required.
Liquid Applications

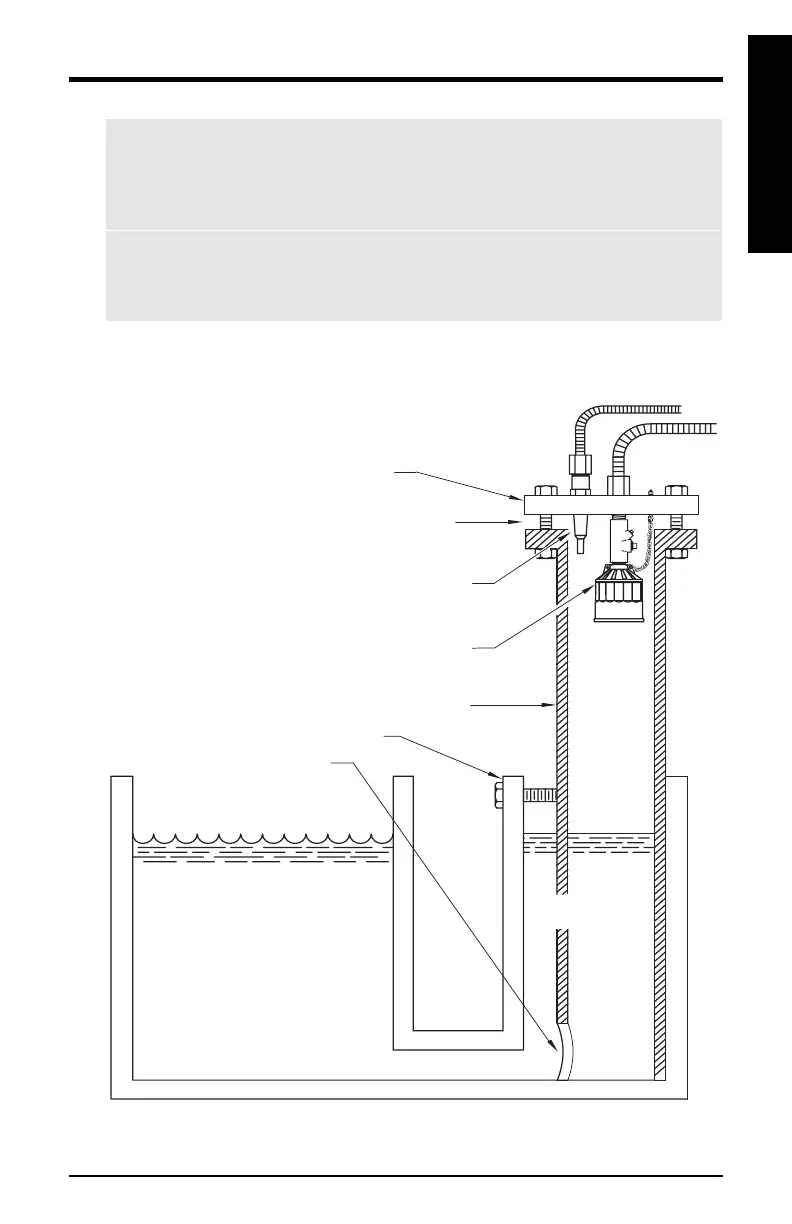

Stilling Well / OCM
Refer to page 19.
* the use of a TS-3 temperature sensor provides better temperature tracking in
applications where the temperature can change quickly.
air vent
blind flange
TS-3 *
transducer
standpipe
bracing
standpipe inlet
primary element
stilling well
stilling well inlet
