Page 16 XPS 10/15 F Series Transducer PL-551

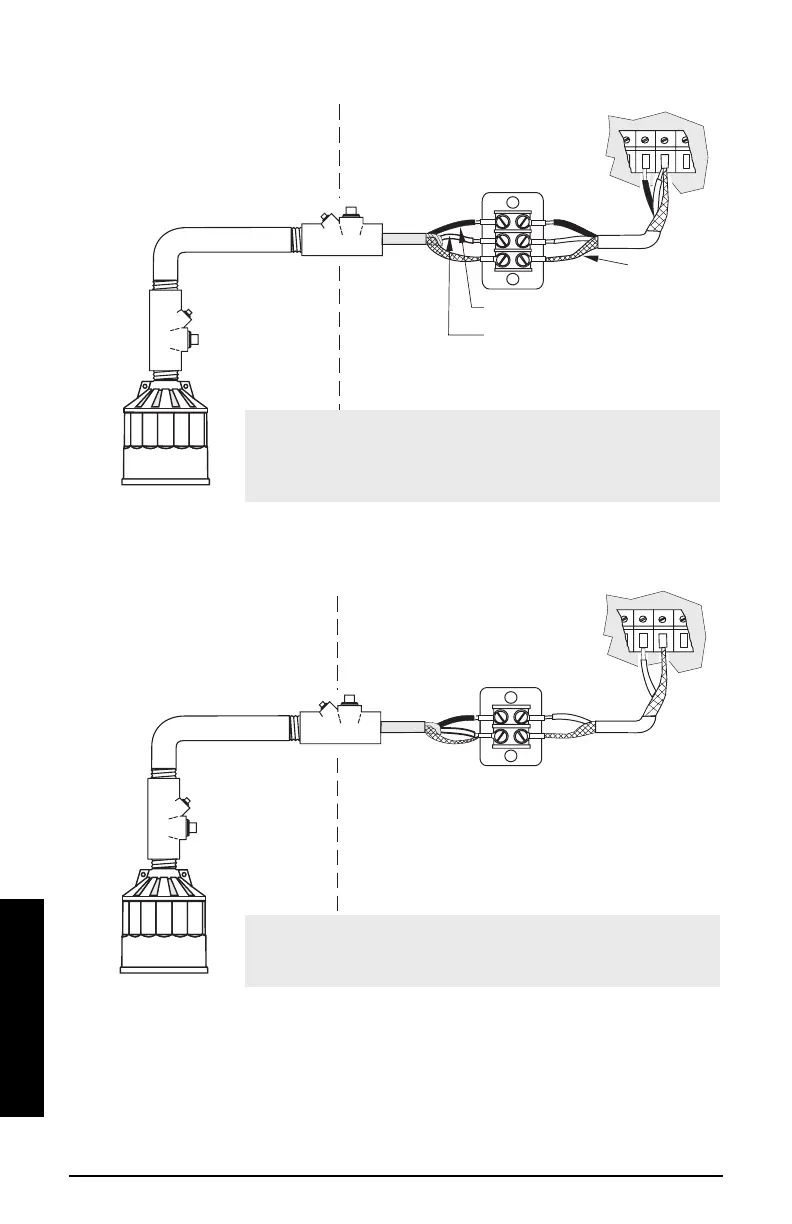

Interconnection
2-Wire Extension
(XPS 10 F shown)
Coaxial Cable
(XPS 10 F shown)
metal conduit
blk
drain / shield
wht
extend cable using 18 AWG
shielded / twisted pair
junction box
metal conduit
extend cable using RG – 62 A/U
coax for optimum noise immunity
Note:
When connecting to an EnviroRanger ERS 500, do NOT
use coaxial cable.
Hazardous Location
(Class I, Div. 1, Group
A,B,C,D or Class II, Div.
1, Group E,F,G)
Non-Hazardous Location
(Safe)
Hazardous Location
(Class I, Div. 1, Group
A,B,C,D or Class II, Div.
1, Group E,F,G)
Non-Hazardous Location
(Safe)
Note:
When connecting to an EnviroRanger ERS 500, the
white, black, and shield wires are all connected
separately. Do not tie the white and shield wires together.
