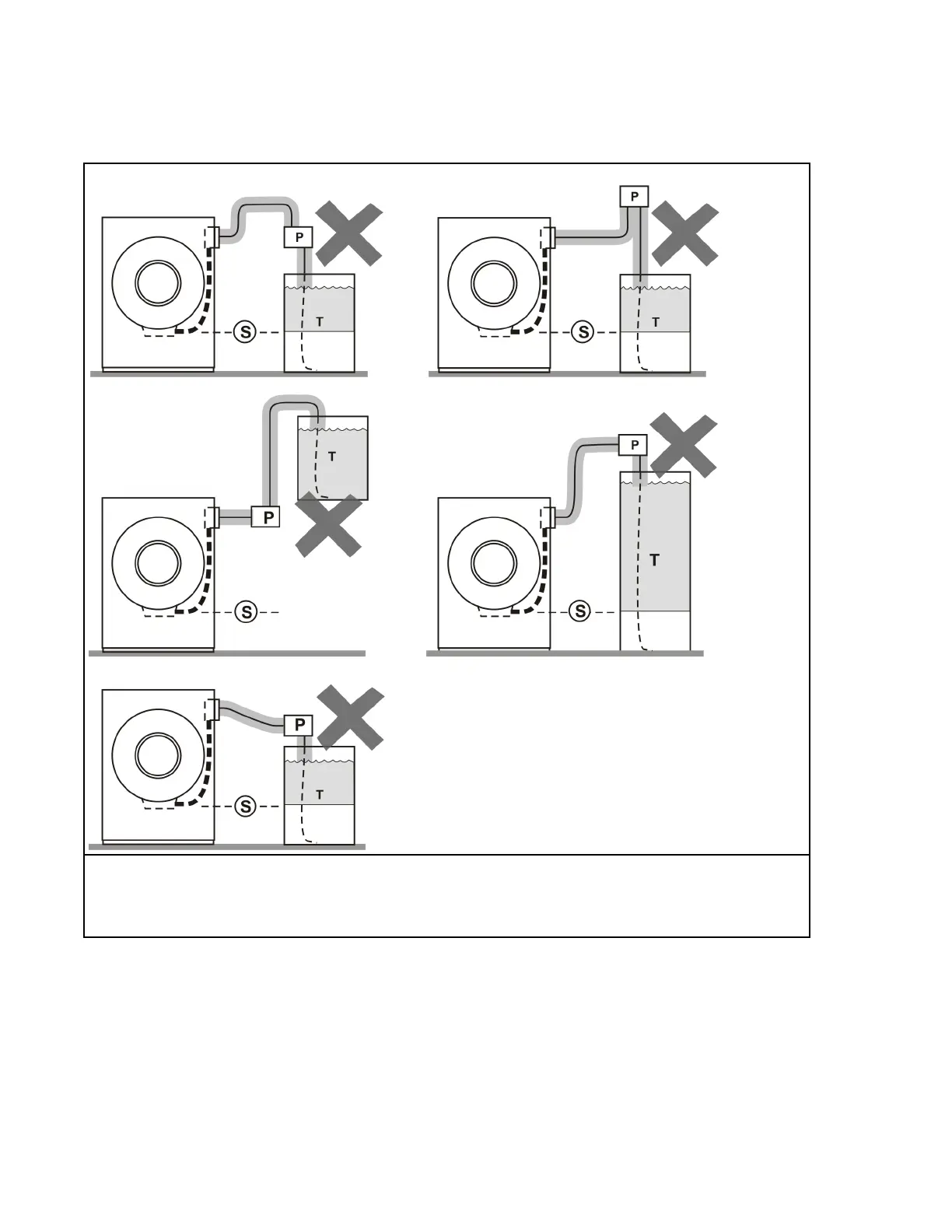

Figure 1. Incorrect Configurations That Let the Chemical Supply Go In the Machine by a Siphon
Schematic Views
Legend
P. Pump
T. Chemical tank
S. The siphon occurs above here. Liquid in the gray parts of the chemical tube and tank can go in the machine.
Prevent Damage from Chemical Supplies and Chemical Systems
