ËVent
— Because of the relatively small volume of exhaust air produced by a washer-extractor (versus a dryer, for
example) it is almost never necessary to vent a washer-extractor to the outside. One possible exception is with
Staph-Guard
®
models, for sanitary reasons. Note, however, that even without exterior venting, the vent mechanism
on Staph-Guard
®
machines will draw air in from the clean side and exhaust it to the soil side, providing a barrier
wall has been properly installed in accordance with the machine dimensional drawing.
ÊPrecautions for Electrical Connections
ELECTROCUTION HAZARD—Contact with high voltages can kill or seriously
injure you.
☞ All electrical connections must be made by a competent electrician.
ËWhen Making Electrical Power Connections
1. Connections must be made by a competent electrician.
2. See fuse and wire sizing information in the schematic manual and on the machine nameplate.
3. “Stinger leg,” if any, must be connected to terminal L3 only.
4. Make power and liquid supply electrical connections within junction boxes on rear of machine.
5. Use only Bussman Fusetron FRN (up to 250V), FRS (up to 600V) or similar lag fuses. The nameplate fuse
sizes must not be applied to standard fuses.
6. See nameplate and wire sizing information in the schematic manual for fuse and wire sizes. For wire runs of
more than 50 feet (15.24), increase by one wire size per each additional 50 feet (15.24).
7. Verify all motor rotation (see the Mark II washer-extractor reference manual for further information).
ÊElectric Power Connections
Voltage fluctuations of more than 10% above or below the specified voltage for the machine
are extremely detrimental to electrical components, especially motors.
☞ Correct any such conditions prior to commissioning the machine.
The customer must furnish a remotely mounted disconnect switch with lag type fuses, circuit breakers, and
wiring between the electrical service box and the junction box on the machine. The sizes of these fuses and wires,
along with the motor fuses supplied with the machine, depend on the machine voltage. See fuse and wire sizing
information in the schematic manual and on the machine nameplate. If machine has been in storage or transit for
several months, the time relay(s) may not time out correctly the first time. After a few operations they will correct
themselves. Do not condemn them until they are allowed to operate several times.

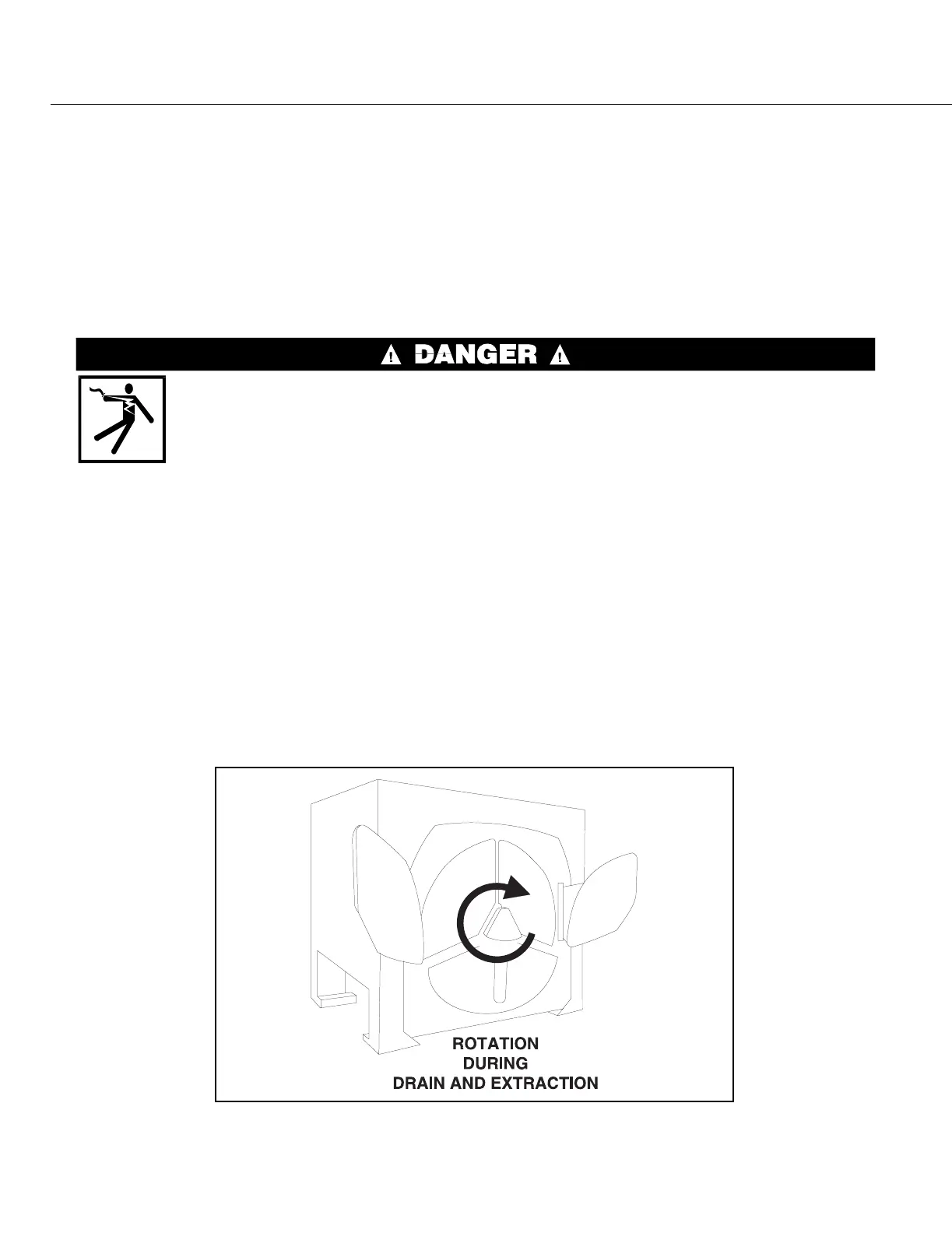

ÎFIGURE 12
(MSIN0201BE)
ÎCylinder Rotation (Viewed from front)
ÎFIGURE 13
(MSIN0201BE)
ÎElectrical Service Example
