Chapter 3. Routine Maintenance
PELLERIN MILNOR CORPORATION

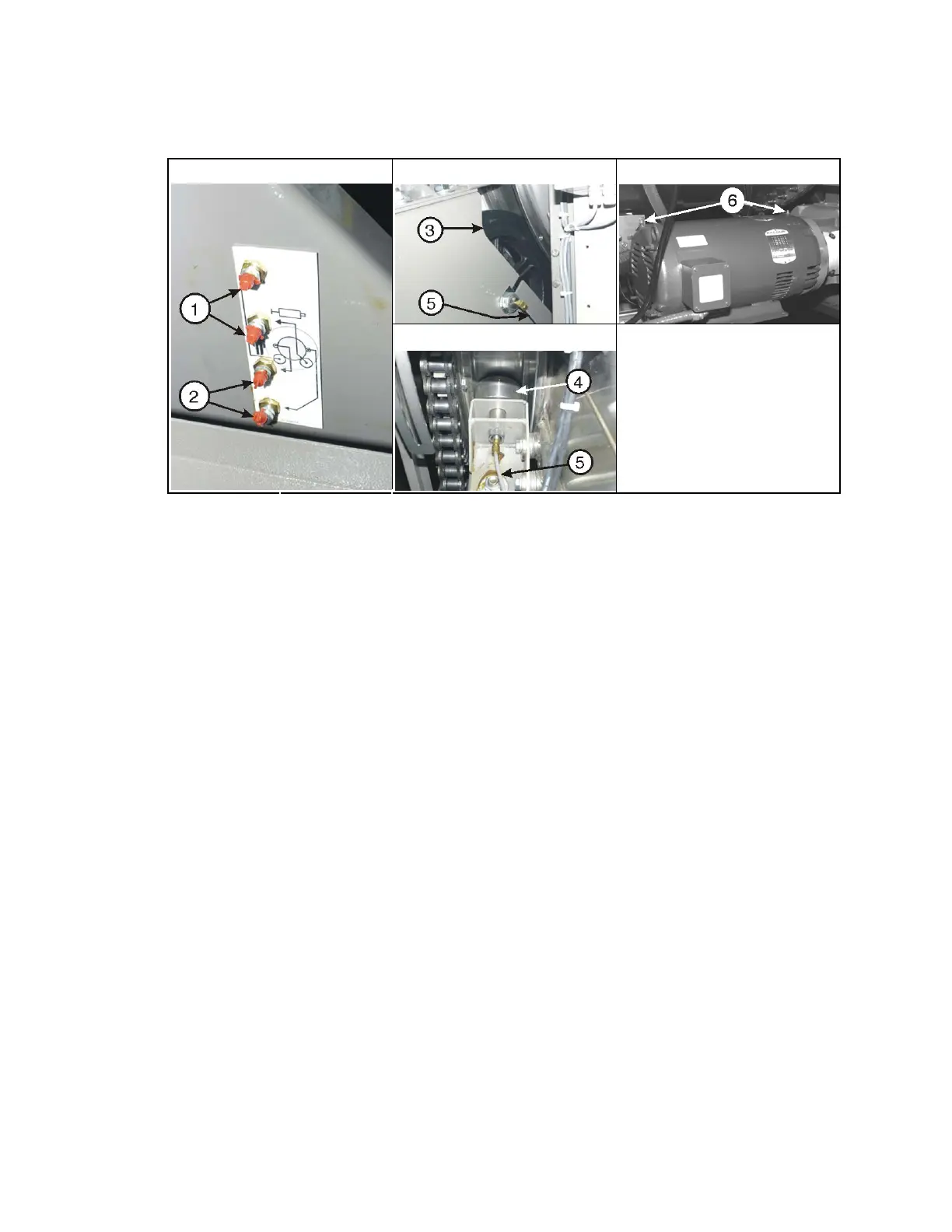

Figure 21: Grease Points. These are examples. Your machine can look different.
Grease plate—76039CBW Support wheel—76039CBW Drive motor—92048CBW
Tracking wheel—76039CBW Legend
.
1. Support wheel fittings
2.
Track
ing wheel fittings
3.
Supp
ort wheel
4.
Trac
king whee
l
5. Tube t
o grease
plate
6. Mo
tor grease fittings
(all
d
rive and pump motors)
45
