Chapter 3. Routine Maintenance
PELLERIN MILNOR CORPORATION

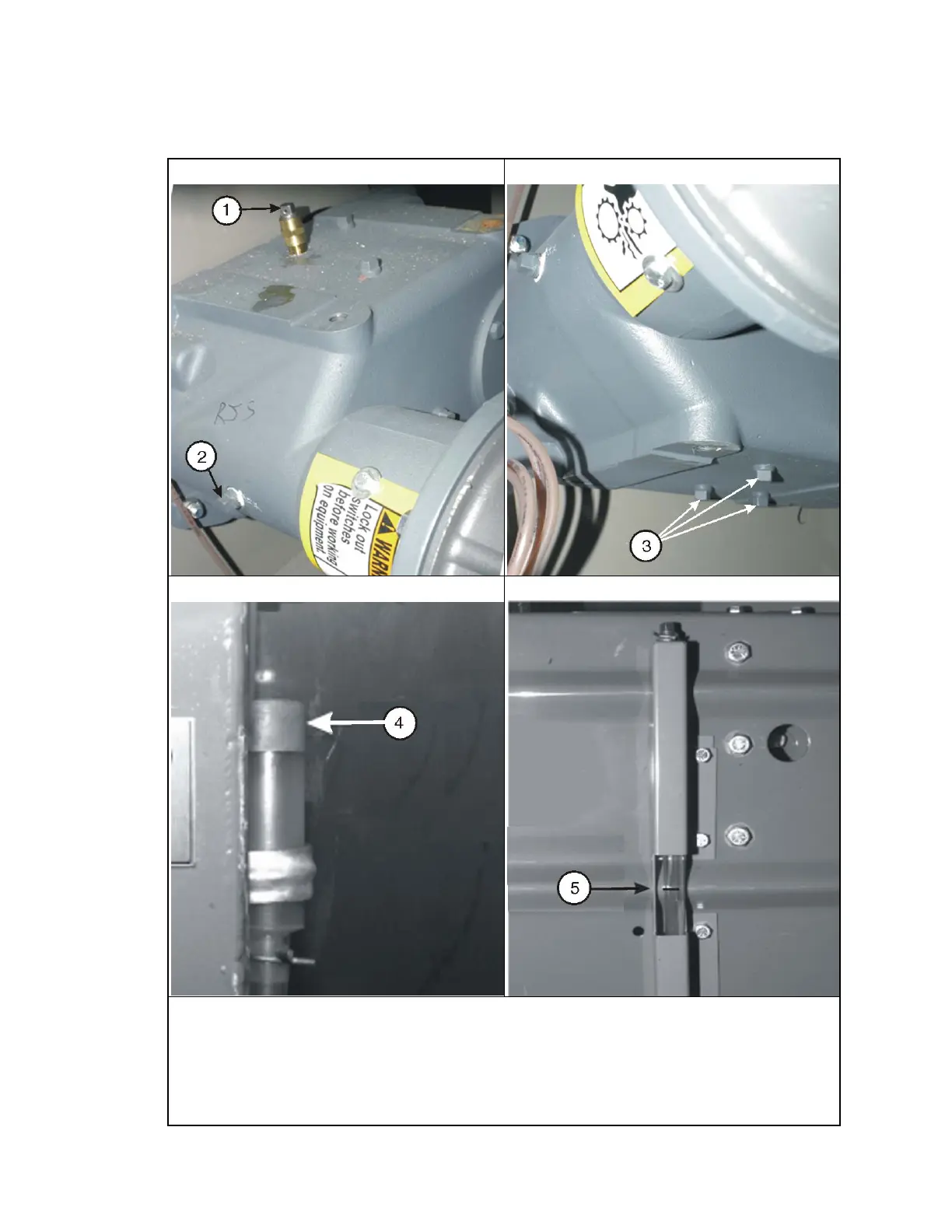

Figure 22: Speed Reducer (gear reducer). These are examples. Your machine can look different.
Where to Add Oil—G3 or G4 CBW Where to Remove Oil—G3 or G4 CBW
Where to Add Oil—76032CBW Where to Remove Oil—76032CBW
Legend
1. Remove plug with vent hole and add oil.
2.
Rem
ove this plug when you add oil. Fill until the oil starts to come out
here.
3. R
emove one of the plugs to remove oil.
4.
R
emove the stopper and add oil.
5.
Fill u
ntil the oil level is here. Remove the tube through the bottom of the bracket to remove o
il.
.
46
