Pellerin Milnor CorporationPellerin Milnor Corporation
P. O. Box 400, Kenner, LA 70063-0400
Litho in U.S.A.
BMP750046/97341V
(Sheet 1 of 2)

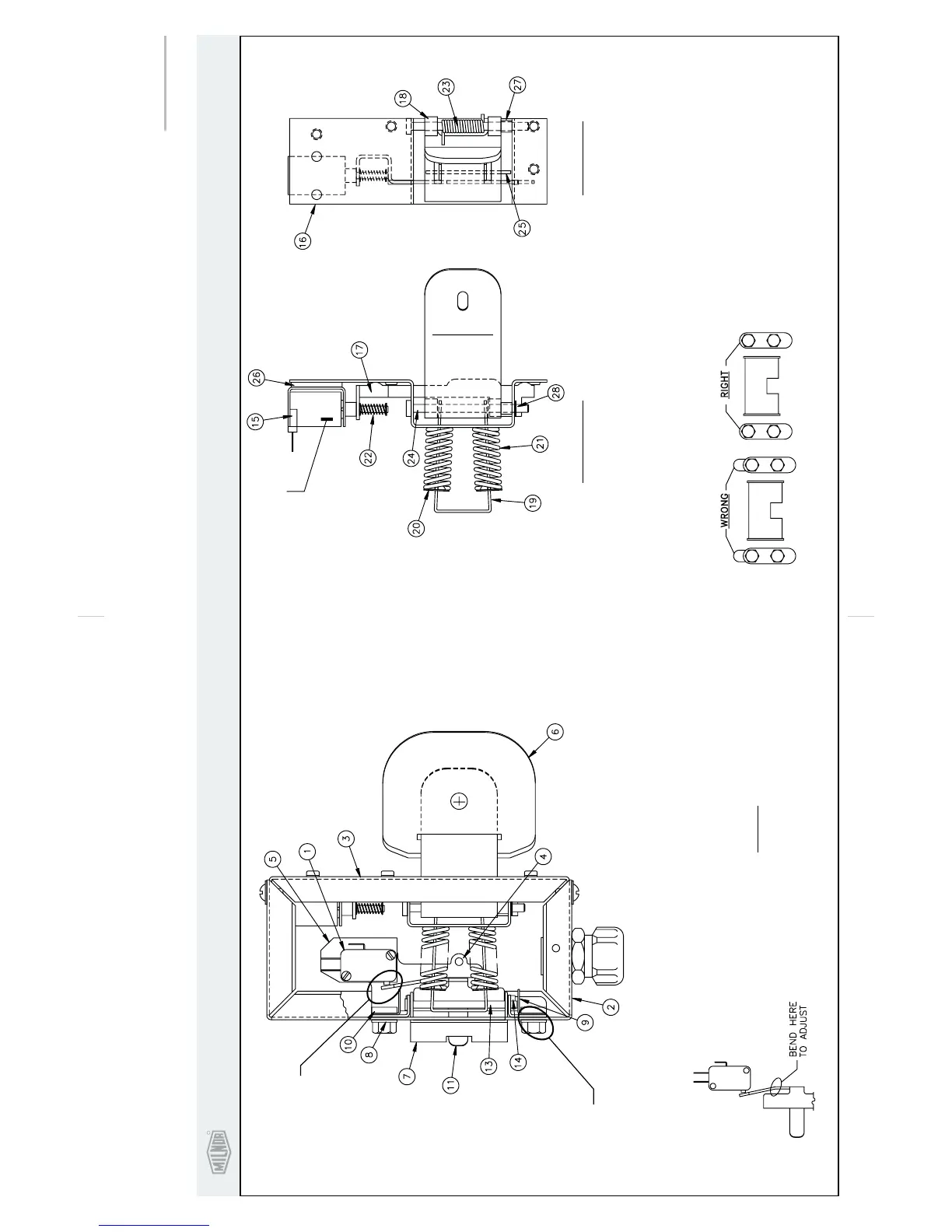

Interlock Assembly
BMP750046/97341V (1 of 2)
Adjust the switch striker arm by bending as
shown so that :
1) The switch is activated when the door is
closed
2) The switch does not actuate when the
unlatching lever is fully depressed with the
door open
3) The arm does not over travel and hit the
switch housing when the door is closed
and the switch is actuated.
Bolt Spacer Adjustment
1) On a new machine the slots on the front
housing should not show a gap past the
bolt spacers.
2) The spacers should be installed with the
long side toward the shellfront
SWITCH STRIKER ADJUSTMENT BOLT SPACER ADJUSTMENT
ASSEMBLIES 00AA,00BB,00CC,00DD
FRONT VIEW SIDE VIEW
SEE
SWITCH
STRIKER
ADJUSTMENT
SEE
BOLT
SPACER
ADJUSTMENT
110V-120V=GREEN
220V-240V=YELLOW
To Next Page
