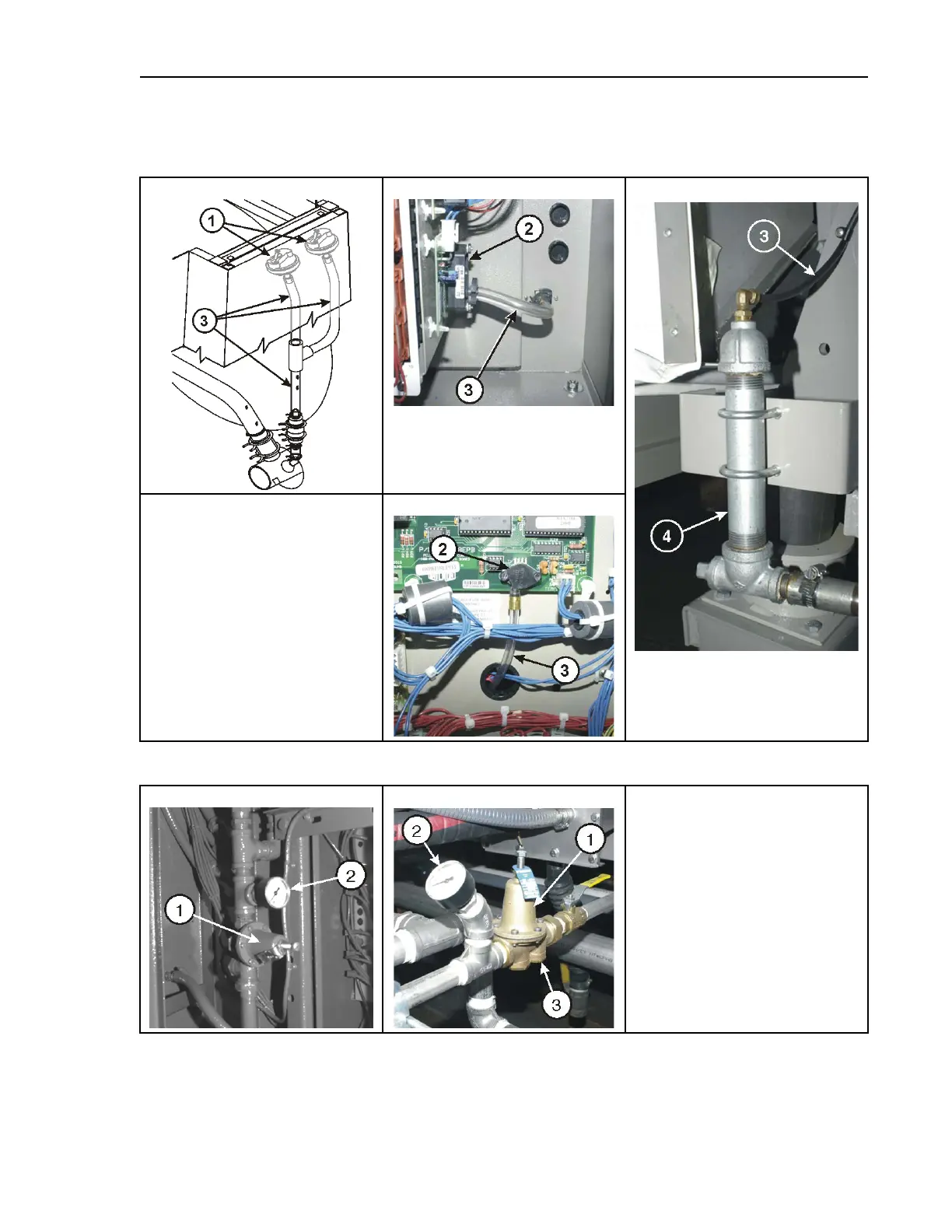

Figure 12. Air Tube for the Water Level Sensor. These are examples. Your machine can look
different.
30022T5E Washer-extractor
42044SP2 Washer-extractor
36030F8_ Washer-extractor
Legend
1...Level switches
2...Pressure transducer
3...Air tube. See caution state-
ment below.
4...Air chamber
30022V6J Washer-extractor
Figure 13. Water Pressure Regulator for Chemical Flush. These are examples. Your machine can
look different.
64050E6N Washer-extractor
76039CBW
®
Tunnel Washer
Legend
1...Water pressure regulator
2...Water pressure gauge
3...See caution statement below.
Remove plug to remove
strainer.
