Milnor Phase 7.2.2

To Next Page

To Previous Page

From

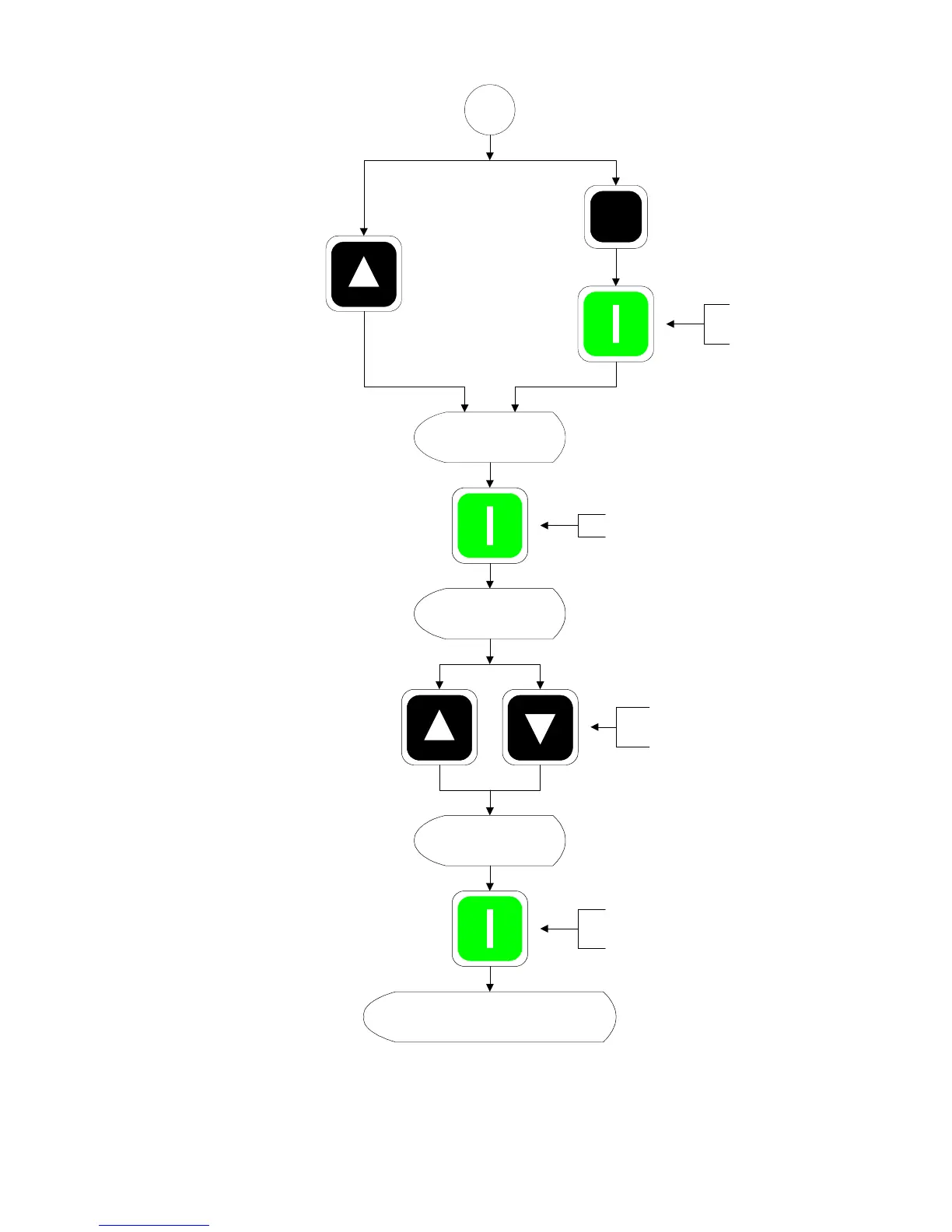

1: SYSTEM TEMP

Press the up or down arrow

key to select DEG F or DEG C

DEG C

DEG F

Use arrow

key

Or number

Press ENTER to jump

directly to the location

Press ENTER to access

Press ENTER to store

new changes

2: ENTER LINT CLEANING

FREQUENCY 1 TO 10 HOURS

Main Page

Default Chapter3
- Table of Contents3
Section I5
Introduction5
- Phase 7 Non-Coin Microprocessor Controller (Computer) Drying System5
Section II6
Features6
- Dependable Phase 7 Non-Coin Microprocessor Controller (Computer) Solid State Integrated Circuitry6
- Fire Suppression System (F.S.S.)6
- Program Changes Are Easily Made at the Keyboard (Touch Pad)6
- Automatic Drying Cycle (Patent No. 4,827,627)6
- Timed (Manual) Drying Cycle6
- Preprogrammed Cycles6
- Manually Loaded Cycles6
- Variable (Programmable) Fabric/Temperature Selections6
- Cool Down/Controlled Cool down Program6
- Temperature Conversion Status7
- High Temperature Protection7
- Cycle Preview7
- Reversing Option7
- Rotation Sensor7
- Clean Lint7
- Language Selection7
- Model Selection7
- Default Factory Settings7
- Keyboard (Touch Pad) Symbols7
Section III8
Program Selections8
- Preprogrammed Cycles8
- Manually Loaded Cycles10
- Automatic Drying Cycle (Patent No. 4,827,627) Operations10
- Timed (Manual) Drying Cycle Operation10
- Light Emitting Diode (L.E.D.) Dot Matrix Display11
- Cycle in Progress Temperature Display11
- Temperature Conversion Status11
- Wrinkle Guard Program12
- Audio Alert on Times 0 to 1012
- Preprogrammed Cycle Preview12
- Diagnostics13
- Program Locations13
- Reversing Option13
Section IV16
Operating Instructions16
- Operating Sequence16
- Operating Notes20
- Fire Suppression System (F.s.s.) Theory of Operation21
Section V24
- L.e.D. Display Messages24
- L.e.D. Display Operating Status24
- Cycles in Progress24
- Cycle Status24
Section VI25
Programming Instructions25
- Introduction to Programming25
  - Entering the Programming Mode25
  - Exiting the Programming Mode25
- Programming Flowcharts27
Section VII77
Factory Preset Parameters (Programs)77
- Cycle "A-F" Parameters (Programs) Preset by the Factory77
- Cycle "0-40" Parameters (Programs) Preset by the Factory77
Section VIII78
Programming Limits78
- Phase 7 Non-Coin Microprocessor Controller (Computer Programming Limits78
- Preprogrammed Cycles78
- Fixed Parameters79
- System Parameters (Program Locations)79
Section IX80
Phase 7 Non-Coin Auto Cycle (Patent No. 4,827,627) Cycle Adjustment Values80
Section X81
- Diagnostic (L.e.D. Display) Fault Messages81
  - Burner Control Fault81
  - Ignition Fault81
Phase 7 Non-Coin Microprocessor Controller (Computer) System Diagnostics81
- Burner High-Limit Fault82
- Burner Purge Fault82
- Check Control Board Fuse82
- Flame Fault82
- Exhaust High Temp Fault83
- Exhaust High-Limit Fault83
- Exhaust Probe Fault/Axial Probe Fault83
- Model Error, Enter Correct Model83
- F.s.s. Activated84
- Rotation Sensor Fault84
- Sail Switch Closed Fault84
- Sail Switch Open Fault84
- B. F.s.s. Diagnostic Conditions85
- Disconnected Water Valve85
- Input/Output (I/O) Board L.e.D. Indicators86
- Keyboard (Touch Pad) Layout87
Section XI88
Customer Custom Parameter Settings88
