Milnor Phase 7.2.2 - Keyboard (Touch Pad) Layout

85

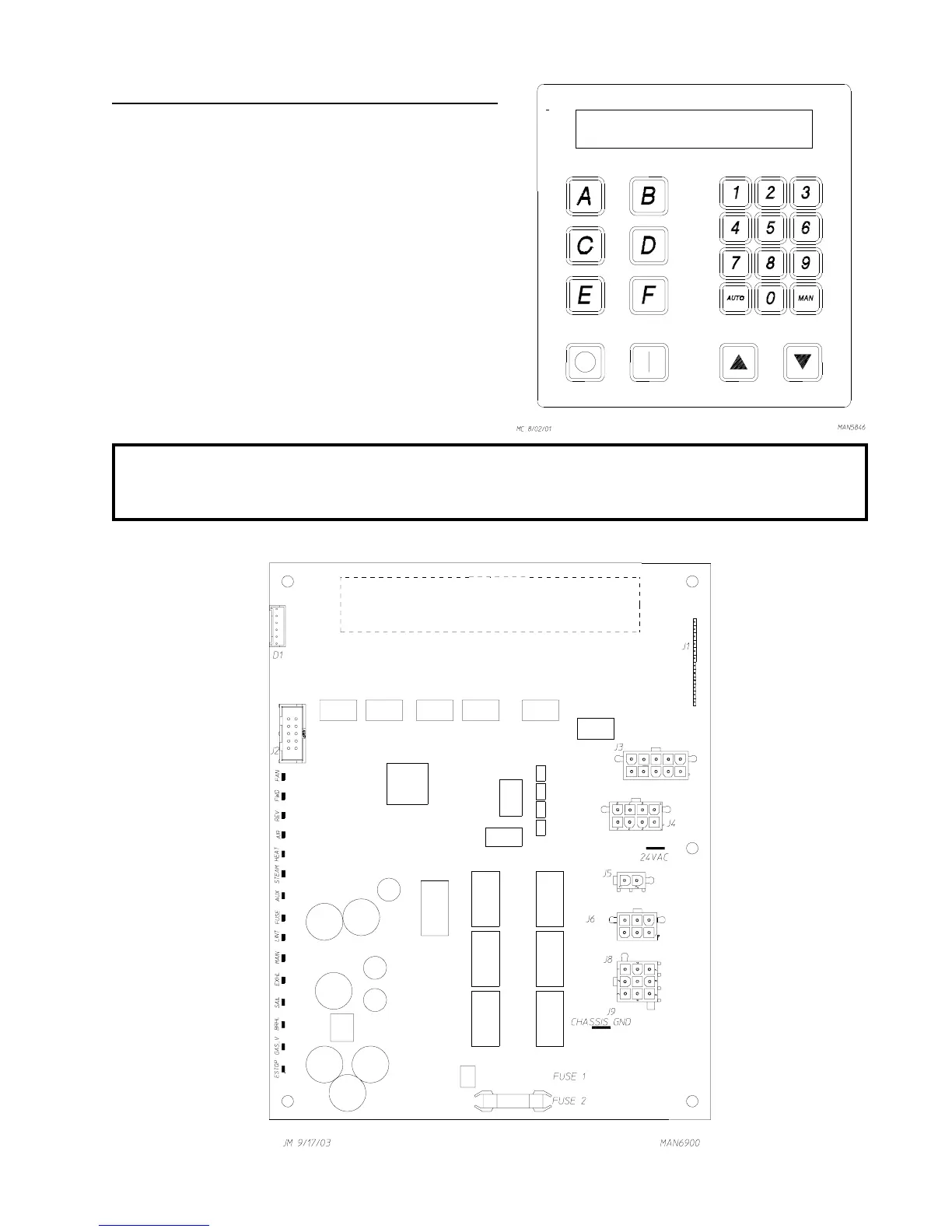

D. KEYBOARD (TOUCH PAD) LAYOUT
1. Dot Matrix Display
2. A-F Preprogrammed Cycles
3. Stop/Pause Button
4. Start Button
5. Increment Button
6. Decrement Button
7. One Time Auto (Dryness Level)
and Manual (Timed) Cycle
NOTE: Fuse 1 is for the Phase 7 non-coin microprocessor controller (computer) power rated at
1/2-amp. If the fuse blows, it is a computer board fault. Fuse 2 is for 24v control power rated
at 5-amps. If fuse blows it is a 24v control fault.
1
2
7
3 4 5 6
