Maintenance Manual > Disassembly and Reassembly > Drive System > Y-axis Motor
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
1.0
Rev.

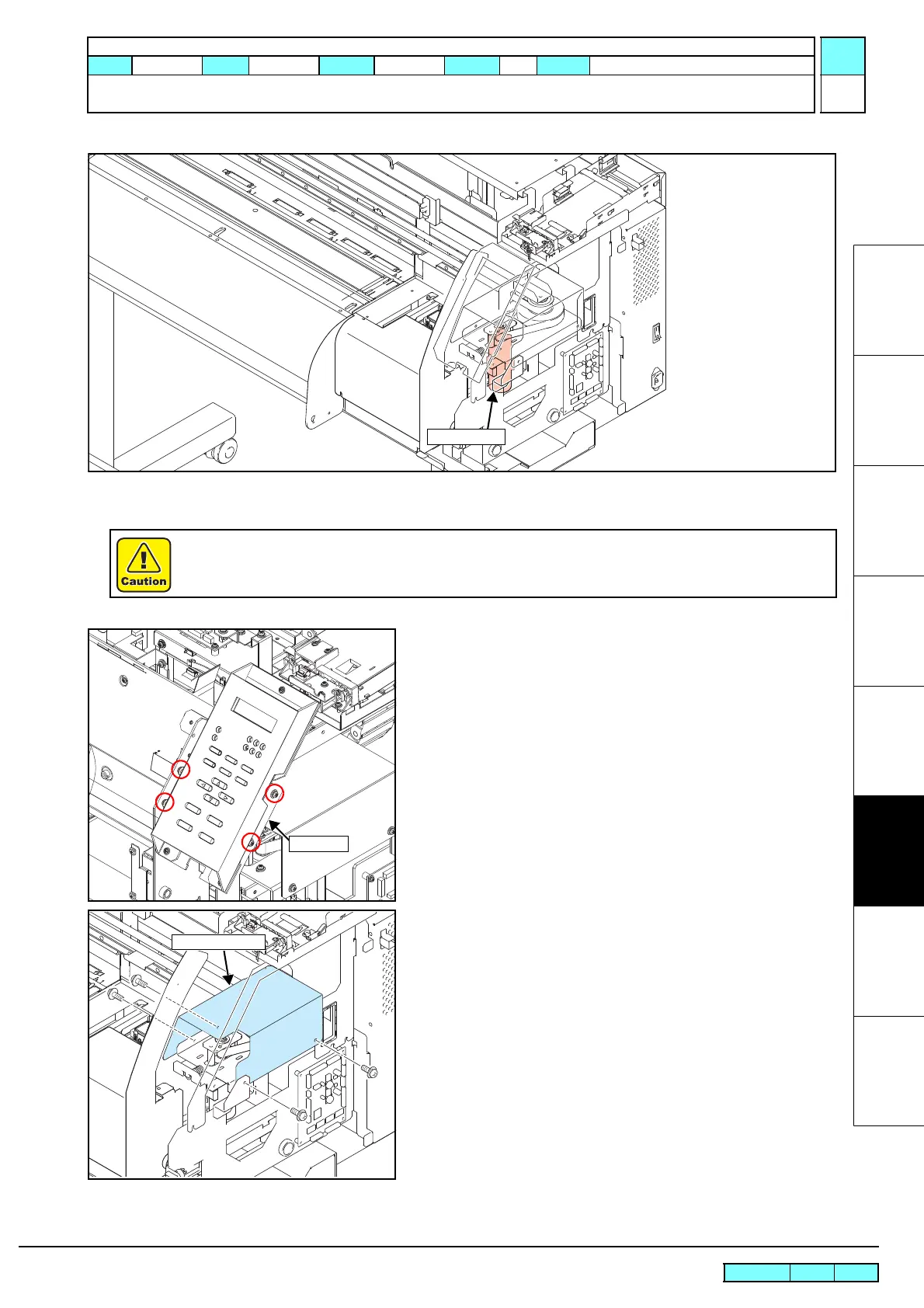

6.4.2 Y-axis Motor
Work procedures
1. Remove the following covers.
• C Y Cover F
• KB Cover
• Right Cover
2. Remove the KB BKT screws, disconnect the connector and
then remove the keyboard assy.
3. Manually move the print head carriage on the platen and
remove the D-BKT cover.
Be sure to turn off the main circuit breaker to prevent unexpected movements of the printer.
Y-axis Motor
KB BKT
D-BKT Cover
