MIMAKI CJV30-100 Service Manual

© 2009 MIMAKI ENGINEERING CO.,LTD.
8.5.1 P.2

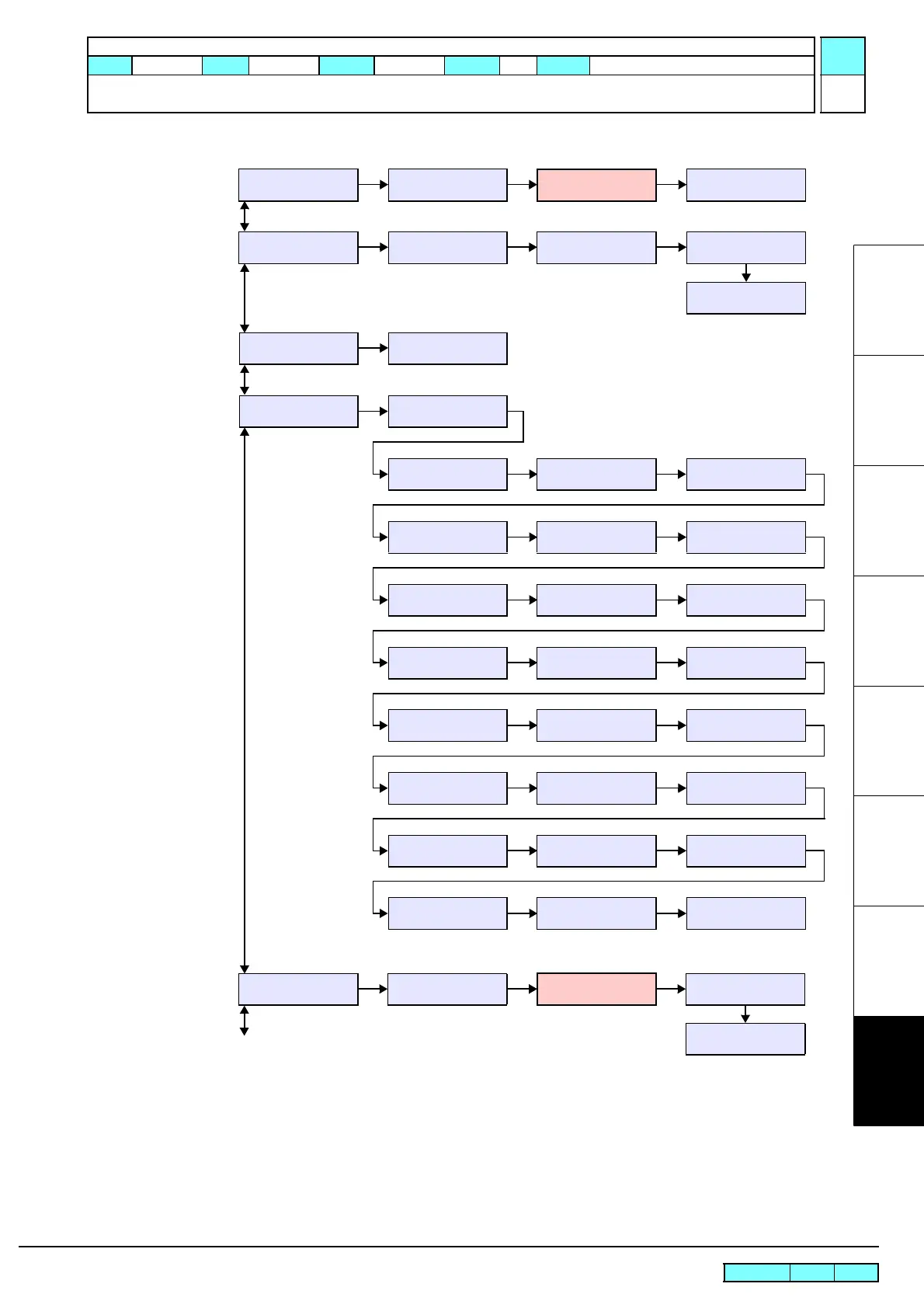

8.5.1 #ADJUST
1
2
3
4
5
6
7
8
#ADJUST / PRINT
MEDIA COMP.2 <ent>
[] / []
#MEDIA COMP.2
PRINT START :ent
#MEDIA COMP.2
VALUE = 0
#ADJUST / PRINT
CAPPING <ent>
[] / []
#CAPPING
CAPPING POS= 0.0mm
#CAPPING
FlushingPOS= 0.0mm
#CAPPING
AirPullPOS.= 0.0mm
#CAPPING
WiperPOS(X)= 0
#HEAD ID/ 
 
#ADJUST / PRINT
HEAD ID <ent>
[] / []
Do you change an
ink set? NO < > YES
#ADJUST / PRINT
HEAD WASH <ent>
Remove:InkCartridges
MMCCYYKK
 DISCHARGE 
00:00
Set:WashingCartridges
12345678
 ABSORPTION 
00:00
Remove:Cartridges
12345678
 DISCHARGE 
00:00
Set:WashingCartridges
12345678
 ABSORPTION 
00:00
Remove:Cartridges
12345678
 DISCHARGE 
00:00
Clean a wiper.
COMPLETED :ent
END< >CONTINUE
V Re-WASH
Set:TRANS Liquid
12345678
 ABSORPTION 
00:00
Remove:TRANS Liquid
12345678
 DISCHARGE 
00:00
Maint.WashLiquid
END< >DISCHARGE
Remove:Maint.Wash
12345678
 DISCHARGE 
00:00
TRANS Liquid
END < >ABSORB
Set:TRANS Liquid
 ABSORPTION 
00:00
Remove:TRANS Liquid  DISCHARGE 
00:00
[] / []
#500mm SQUARE
CLEAR < > DRAW
#500mm SQUARE
dX = 0.0 dY = 0.0
#500mm SQUARE
ANGLE ADJUST = 0.25
#ADJUST / CUT
500mm SQUARE <ent>
[] / []
Pattern drawing
Pattern drawing
R.1.1
Maintenance Manual > Operation Flow > Service Mode > #ADJUST
Model CJV30/TPC Issued 2008.08.04 Revised 2008.09.17 F/W ver. 1.20 Remark
