Mindray DP-9900Plus - Rear View

Introduction
1-3

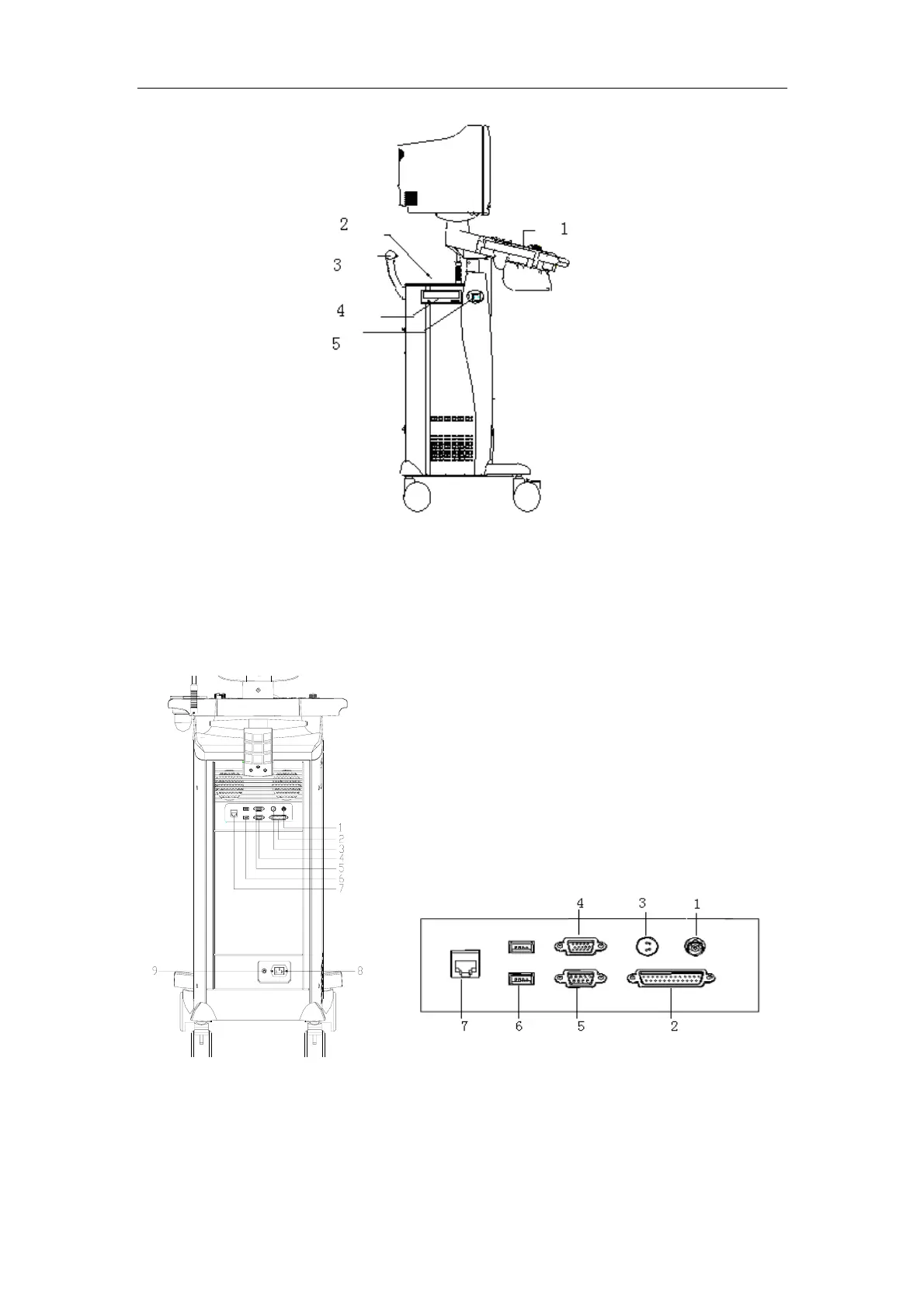

1. Control panel 2. Top plate 3. Push handle 4. CD writer 5. Power switch
Left view for the DP-9900plus/DP-9600/DP-9900 systems
1.4 Rear View
Figure for IO ports
Note: 1. VIDEO 2. Parallel port 3. SVIDEO 4. RS232 5. VGA 6. USB 7. NET 8.
Power inlet 9. Ground terminal
Rear view for the DP-8800plus/DP-8600 systems
