Mindray Z50 User Manual

12-14 Probes and Biopsy
 NGB-001, NGB-002, NGB-003, and NGB-005 (Metal/needle un-detachable)

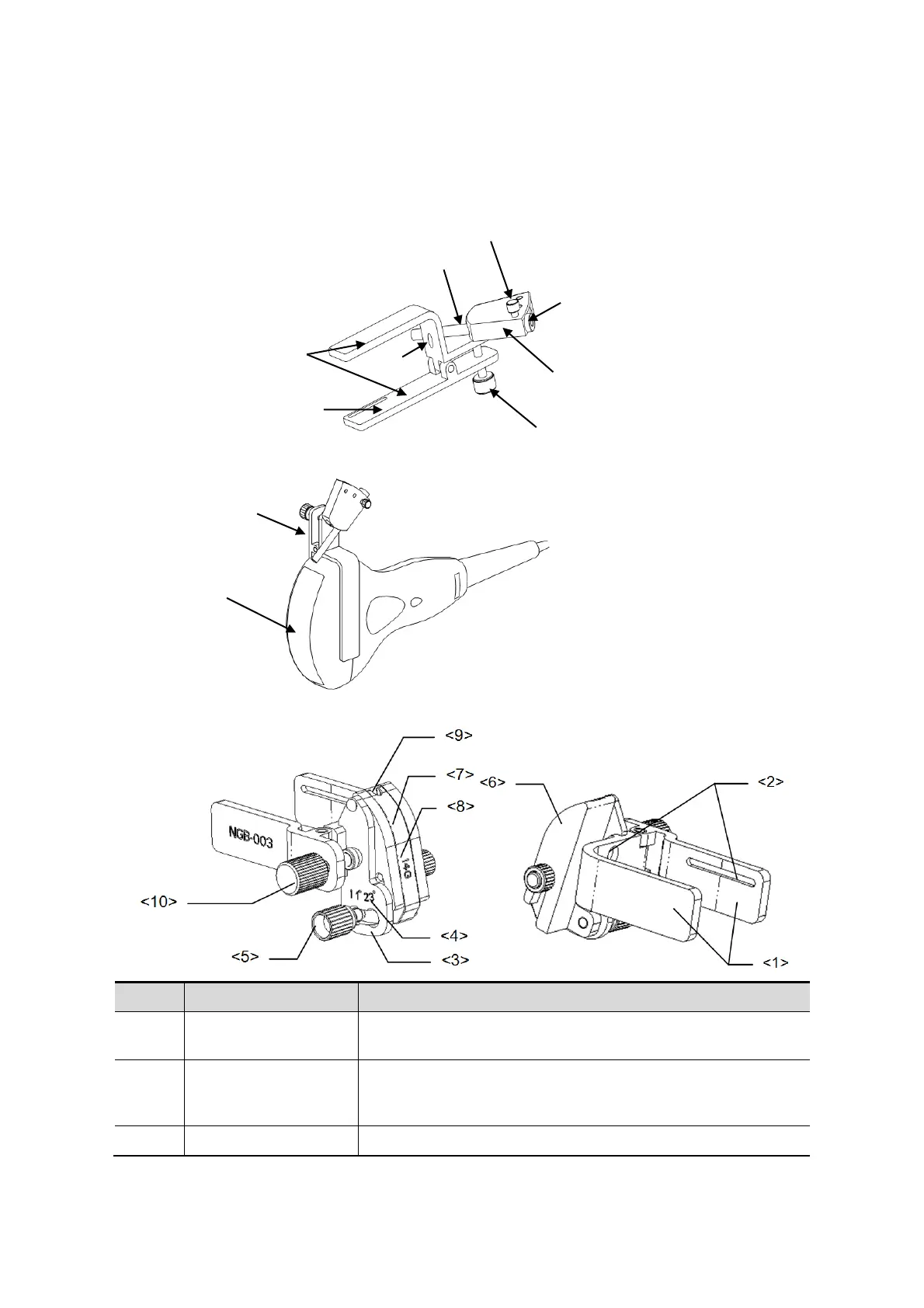

The structure of plastic needle-guided bracket NGB-001, NGB-002, NGB-003 and NGB-
005 are similar to each other. The following figure shows the structure with NGB-001 as
an example.
 NGB-003 (Metal/needle detachable)
No.
Name
Description
<1>
Clamp of needle-
guided bracket
Used for installing the needle-guided bracket on the
transducer
<2>
Groove of the
needle-guided
bracket
Matches with the tab of the transducer
<3>
Angle adjusting base
There are 3 types of angles available to be adjusted
Needle guide rack
Locating
groove
Clamp
Needle guide
Clamping knob of
the needle guide
Needle guide
hole
Grip knob
Locating pit
Transducer
Needle-guided
bracket
