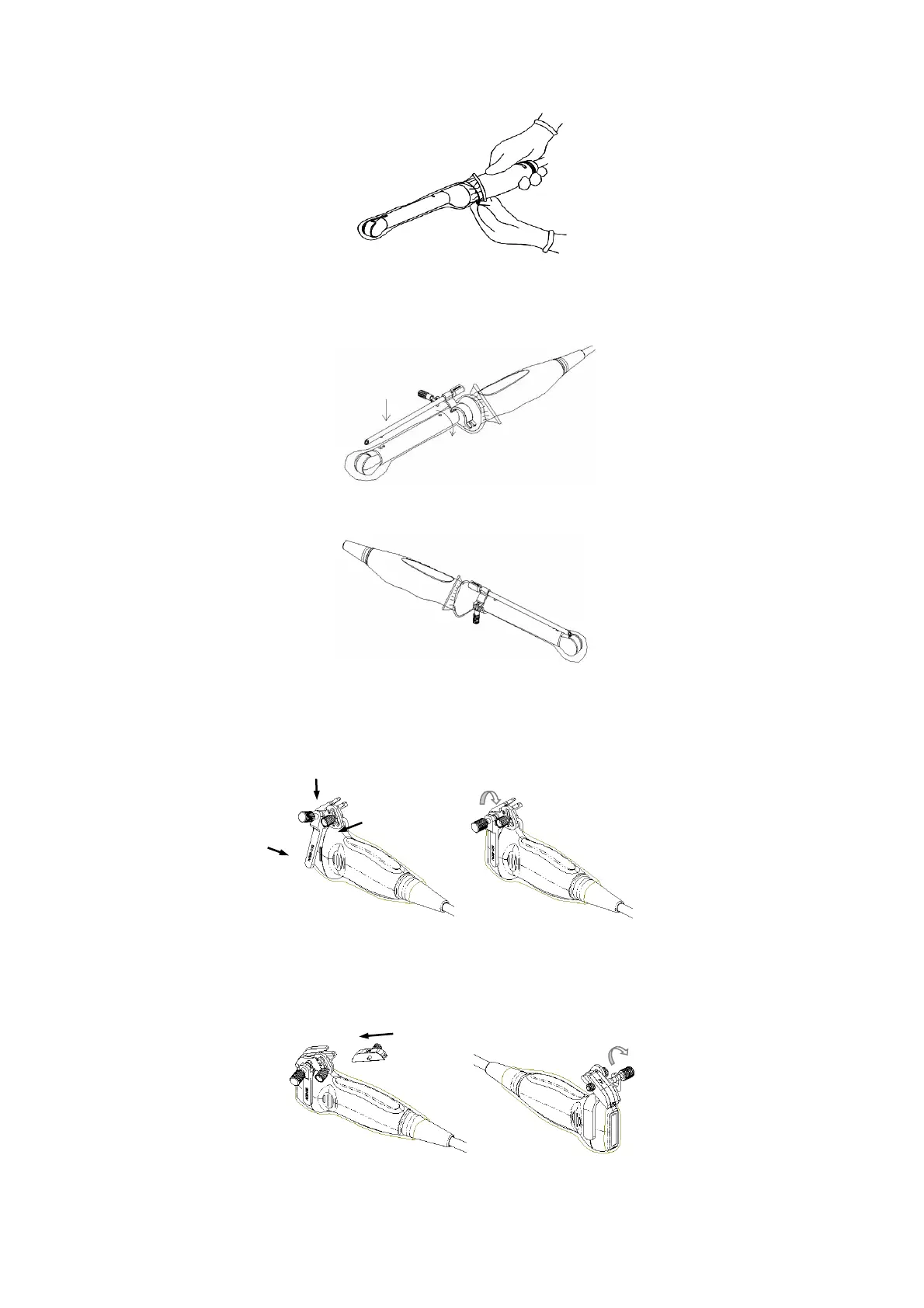

12-18 Probes and Biopsy
2. Open the retaining clamp, align the needle-guided bracket with the transducer to locate
the locating bulge on the needle guide to the locating grooves on the transducer, and
then turn the retaining clamp to match it with the transducer.
3. When the retaining clamp is turned to the right position, the locking nut will lock the
retaining clamp and the needle-guided bracket is then mounted to the right position.
NGB-016
1. Put on the sterile transducer sheath.
2. Select a proper needle-guided bracket, and match the groove with the tab of the
transducer. Mount the bracket onto the transducer.
3. Screw the pinch nut of the needle-guided bracket to confirm that the needle-guided
bracket is properly installed on the transducer.
4. Select a proper guiding block and push it into the groove above the angle block, and
clamp it tightly.
5. Screw the nut of the block to secure the block.
