Scale
---
CAIS / CAW / CAAP
Revision
03
Released by
Reviewed by
Written by
1/8/2021
1/8/2021
1/6/2021
Date
T. Hiller
T. Hiller
NameMaterial
Title
Alteration
543604
Drawing number
Safety instructions
65954-750-16 (EN)
Sheet
2
R. Koch
of
4
The copying, distribution and utilization of this document as well as the communication of its contents to others without expressed authorization is
prohibited. Offenders will be held liable for the payment of damages. All rights reserved in the event of thegrant of a patent, utility model or ornamental
design registration. Any information in this document is subject to change without notice and does not represent a commitment on the part of Minebea
Intec unless legally prescibed.
Analog weighing platforms
of the CAAP..-......-...... +
option Y2 series or other
weighing platforms suitable
for zone 2 or 22 (category
3G or 3D), which may be
supplied with at least 9 VDC
(±4.5 VDC).
ADC output with bridge
rated voltage
9 VDC (±4.5 VDC)

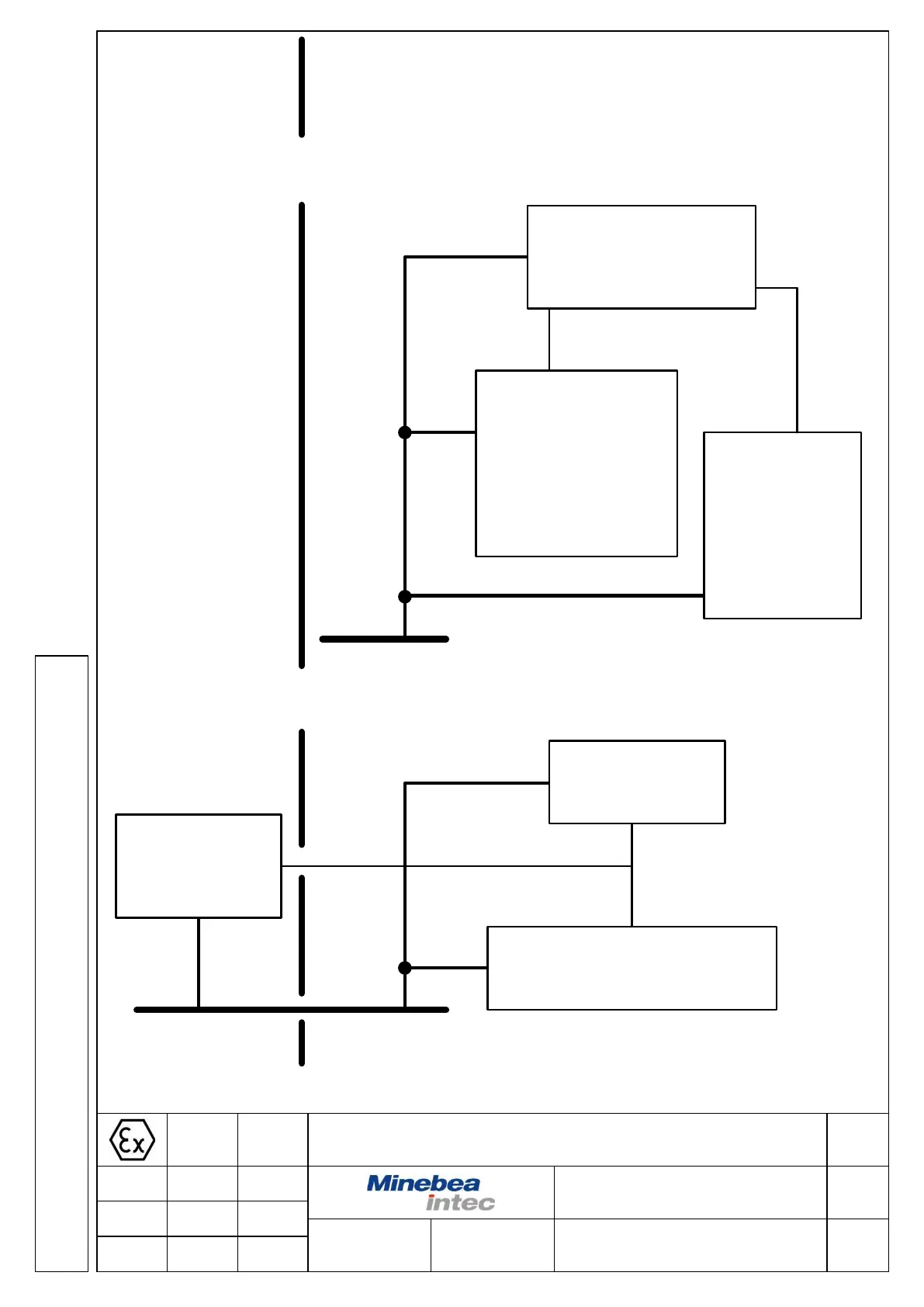

3. Connecting weighing platforms
4. Connection to external equipment
Potential equalization
Potential equalization
Indicator
CAIS. with option Y2
Analog weighing platforms (load cells)
of the
CAAP..-......-...... + option Y2 series
Connection
alternatives
Explosion-safe area
Note 8)
Note 8)
Note 8)
Note 8)
Note 8)
External equipment
with bridge rated
voltage
12 VDC (±6.0 VDC)
External equipment
with bridge rated
voltage
12 VDC (±6.0 VDC)
Equipment must
be suitable for
zone 2 or 22.
Digital weighing
platforms, suitable for
zone 2 or 22 (category
3G or 3D) which may
be supplied with
nominal supply voltages
of at least 16 VDC via
the data output.
Data output with
supply voltage
16 VDC
Note 8)
Explosion-risk area zone 2 or zone 22
Gas:Group IIC, temperature class T4
Dust:Group IIIC, Tmax 80°C
Ambient temperature: -10°C to +40°C
