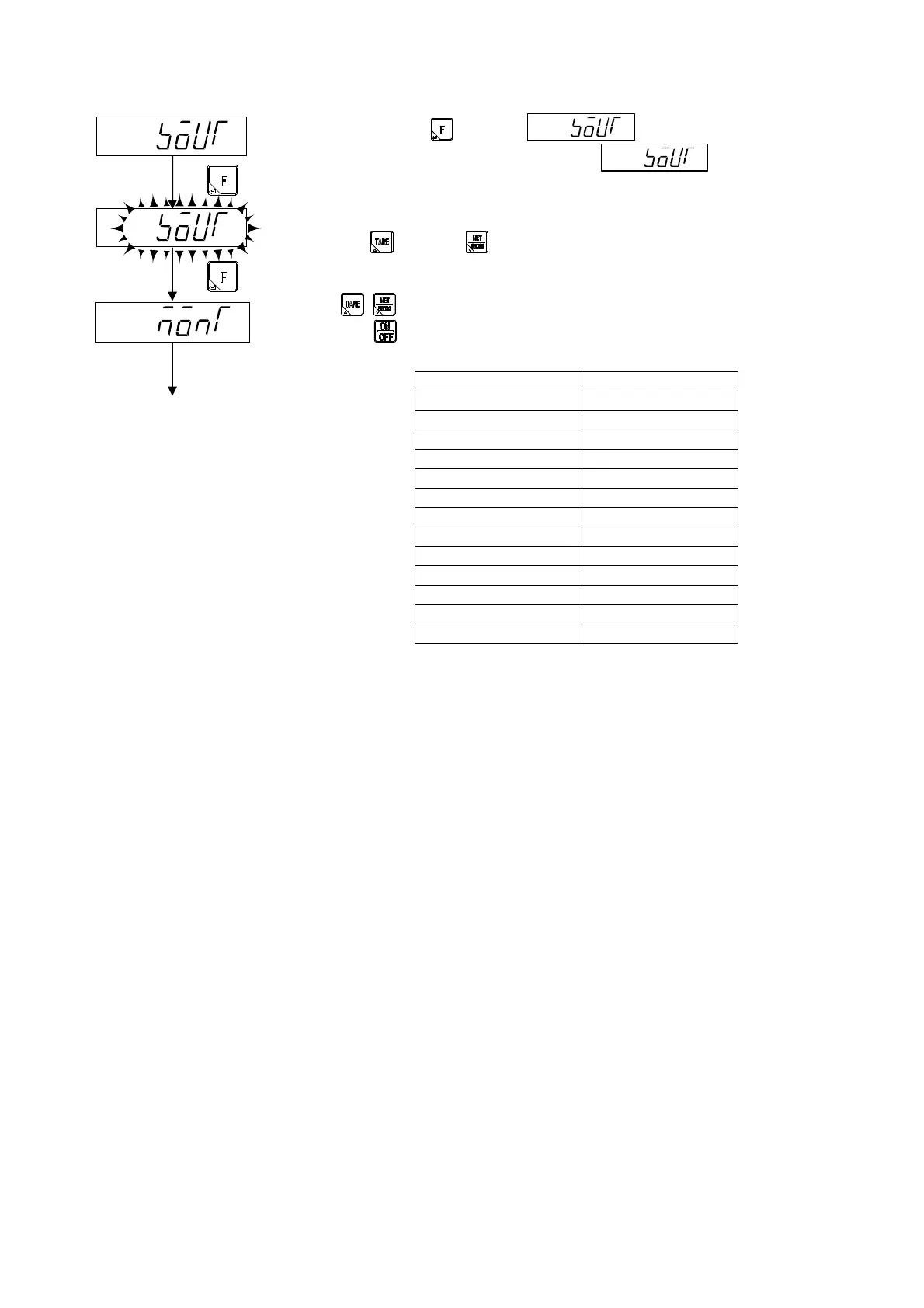

12-6. Confirmation of external control output
By pressing key with display, OUTPUT1 of
external control output is output after display blinks
and [Stable mark] lights.
The position when the lighting [▼] mark is displayed moves when
the key and key is operated at this moment, and the
external control output that respond to the position of the mark is
turned on.
: Changeover the each contact output
: Quit from the check mode
Condition Pin No.
STABLE OUTPUT1
PRESET TARE OUTPUT2
TARE OUTPUT3
GROSS OUTPUT4
NET OUTPUT5
ZERO OUTPUT6
HOLD OUTPUT7
ERROR OUTPUT8
Z-BAND OUTPUT9
F.FLOW/S1 OUTPUT10
M.FLOW/S2 OUTPUT11
D.FLOW/S3 OUTPUT12
OVER/S4 OUTPUT13
Move to the Confirmation of load
