16. Options
16-1. Analog output
16-1-1. Current output specifications (model: CSD903-P07)
Specifications Content
Output DC4 mA ~ 20 mA
Load characteristic 510 ohm or less
Non linearity 0.02 %F.S.
Resolution Approx. 1/12000 or more
Over range Approx. DC2.4 mA, [-OL] displayed.
Approx. DC21.6 mA, [OL] displayed.
Output rate 4 times/s, 20 times/s
16-1-2. Voltage output specifications (model: CSD903-P25)
Specifications Content
Output
DC0 V ~ 10 V
Load characteristic
5 k-ohm or more
Non linearity
0.02 %F.S.
Resolution
Approx. 1/12000 or more
Over range
Approx. DC-1 V, [-OL] displayed.
Approx. DC11, [OL] displayed.
Output rate
4 times/s, 20 times/s
・ The analog output of this unit executes rewriting the output synchronizing with the display.
・ The internal circuit and photo-coupler is insulated.
・ After turning on the power supply, the analog output has the output change element.
Please turn on the power supply for about one hour before to use it in stable condition.

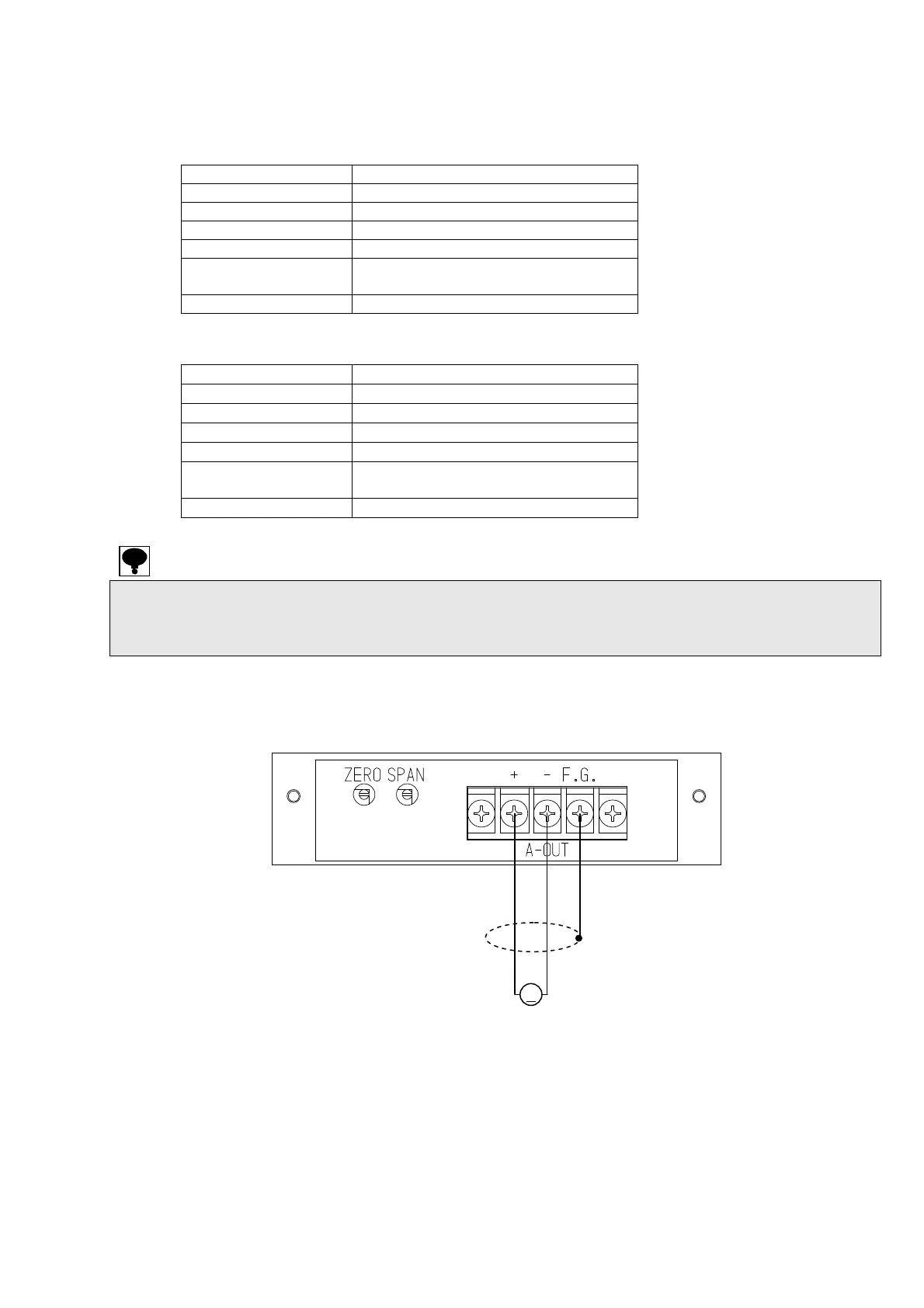

16-1-3. Connection of analog output
(1) Current output
A
Shield
－＋
Load resistance
510 ohm or less
