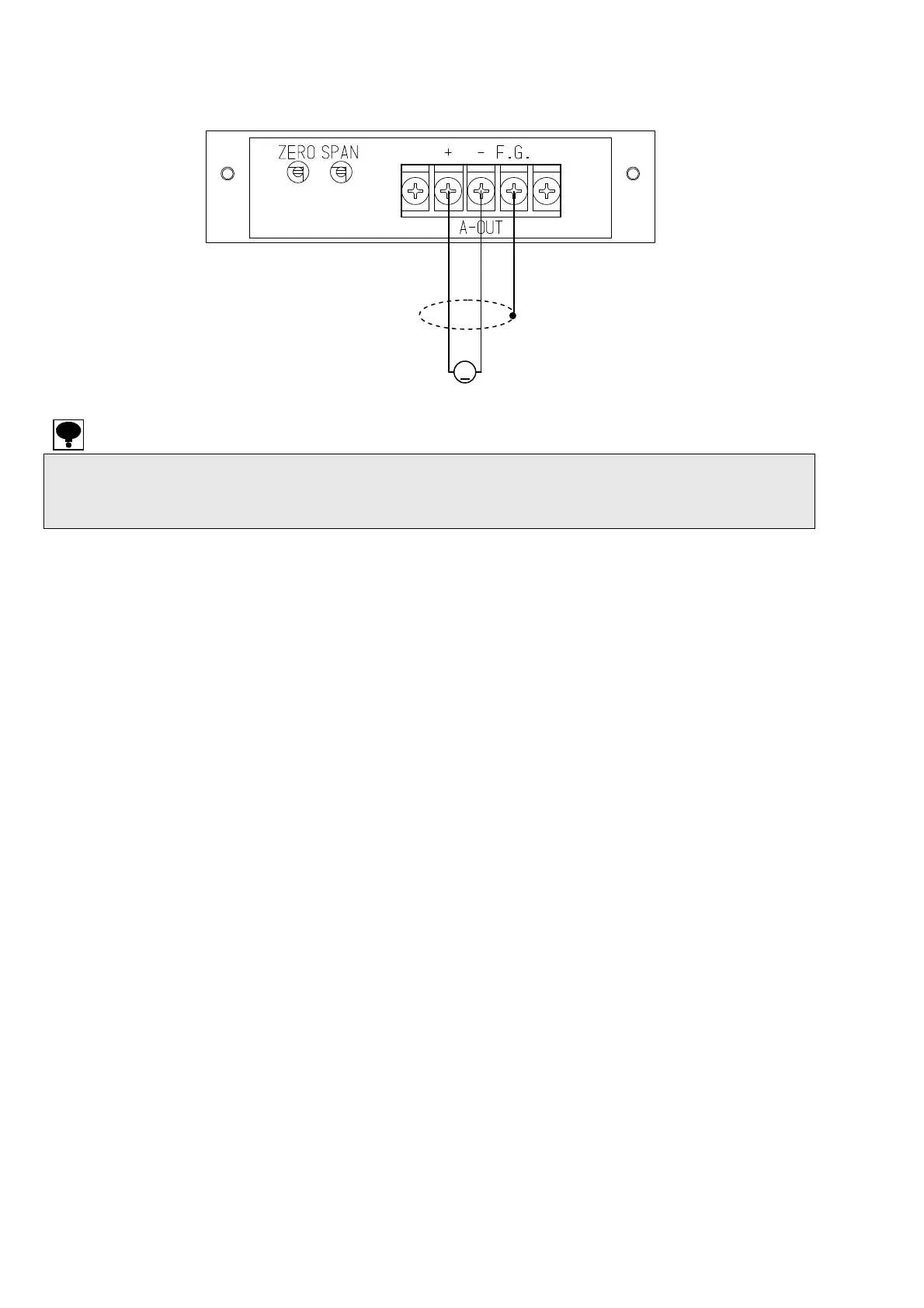

(2) Voltage output
・ For the connection with the analog output, be sure to apply the shielded cable and shield should be
connected with F.G terminal.
・ To comply the instrument with the CE conformity or applied JIS standard, please use shielded cable
and connect the shield with the F.G. terminal.
16-1-4. Analog output target
The analog output target is selected by C function CF-70.
The analog output target can be selected from [Display interlock], [Gross value] and [Net value].
Default is set to [Display interlock].
V
Shield
－＋
Load resistance
5 k-ohm or more
