16-1-6. Fine adjustment of analog output
After the analog output scaling is executed by setting C function CF-71 and CF-72, the fine adjustment
is executed by the trimmer ZERO and the trimmer SPAN.
The range of the fine adjustment is approx.±10 % against the full scale.

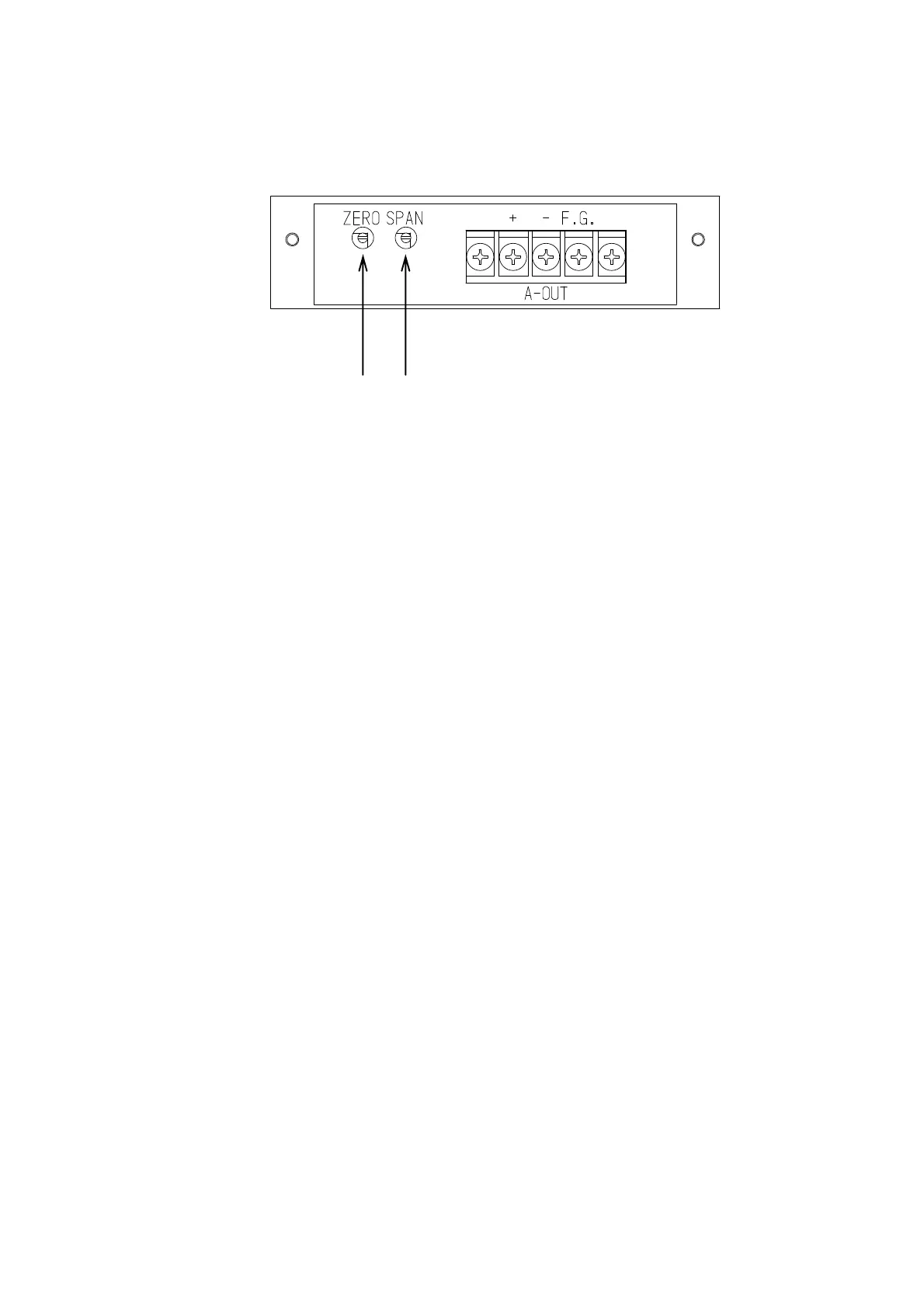

ZERO trimmer SPAN trimmer
