138

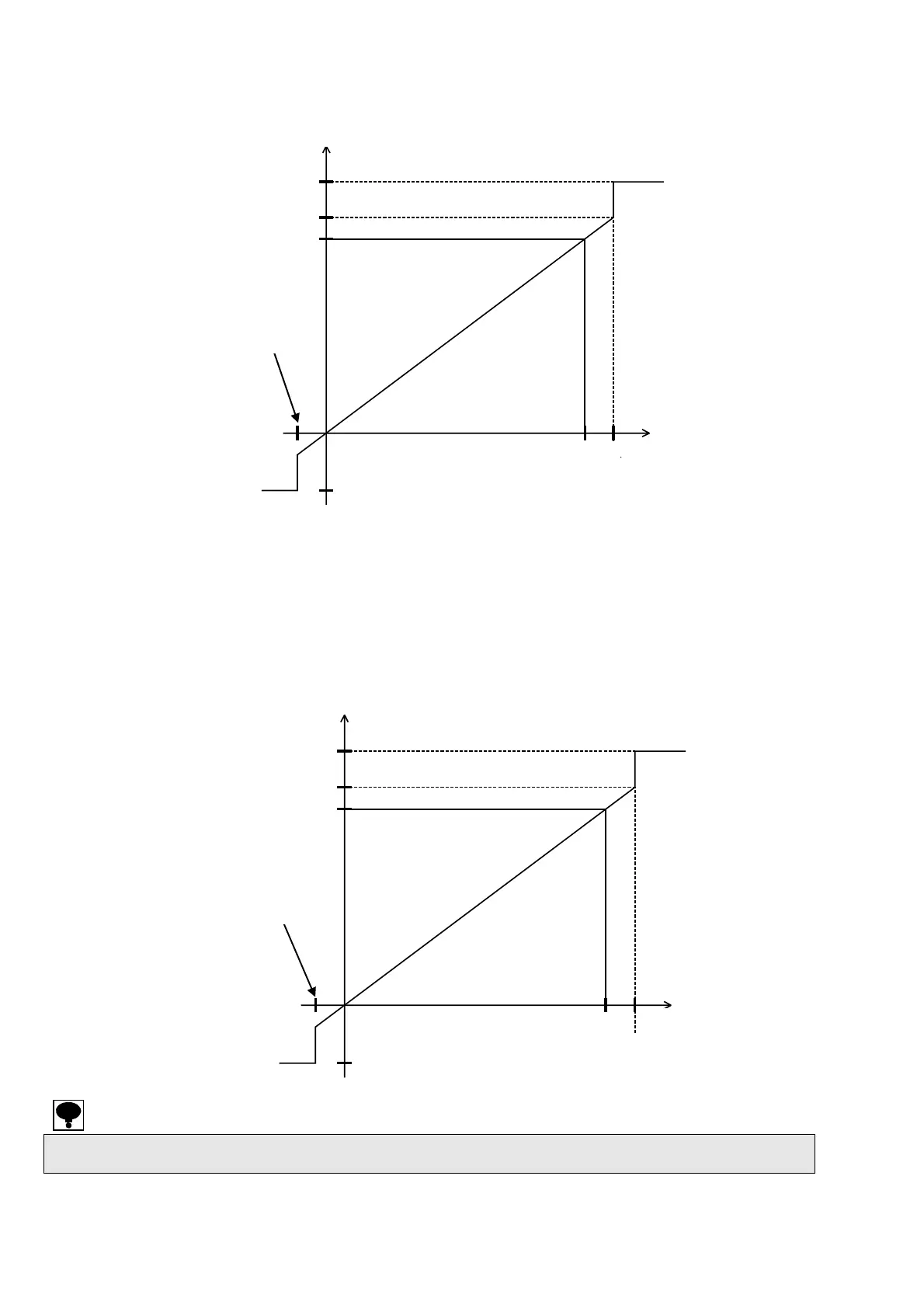

Scaling of analog output when set value of CF-03 is set to 0 or 1.
CF-71 set the display when the minimum value is output.
CF-72 set the display when the maximum value is output.
Ex) CF-71: set as 1 000
CF-72: set as 5 000
When the display is 5 000, the maximum value is output.
When the display is 1 000, the minimum value is output.
・ The setting of CF-72 must not exceed the weighing capacity set in clause 4.
・ Please set the smaller value in CF-71 than the value set in CF-72.
最大表示
表示
最大表示の＋110 %
アナログ出力
約21.6 mA
約11 V
最大値 20 mA
10 V
最小値 4 mA
0V
0表示
約2.4 mA
約－1 V
最大表示の－10 %
Display
+110 % of the maximum displa
y
The maximum display
+110 % of the maximum displa
y
Display
Approx.2.4 mA
Approx. –1 V
-10 % of the maximum display
the maximum display
Approx.21.6 mA
Approx. 11 V
The minimum display
Analog output
5000
表示
5500
アナログ出力
約21.6 mA
約11 V
最大値 20 mA
10 V
最小値 4 mA
0V
1000
約2.4 mA
約－1 V
最大表示の－10 %
Analog output
Approx.21.6 mA
Approx. 11 V
the maximum display
-10 % of the maximum display
The minimum display
Approx.2.4 mA
Approx. –1 V
Display
