2-2. Connection with strain gage applied transducer
The instrument can connect with the strain gage applied transducers, such as load cells, pressure
sensors, etc. Here, we describe the example of connection with load cells, so that the connection
with another type of strain gage applied transducers shall be preceded in the same way.
When the tension is applied with the use of tension type or universal (tension/compression) type load
cell, and display of (+) direction is required, connect the input (+) of the load cell to the terminal B and
the input (-) of the load cell to the terminal D individually.

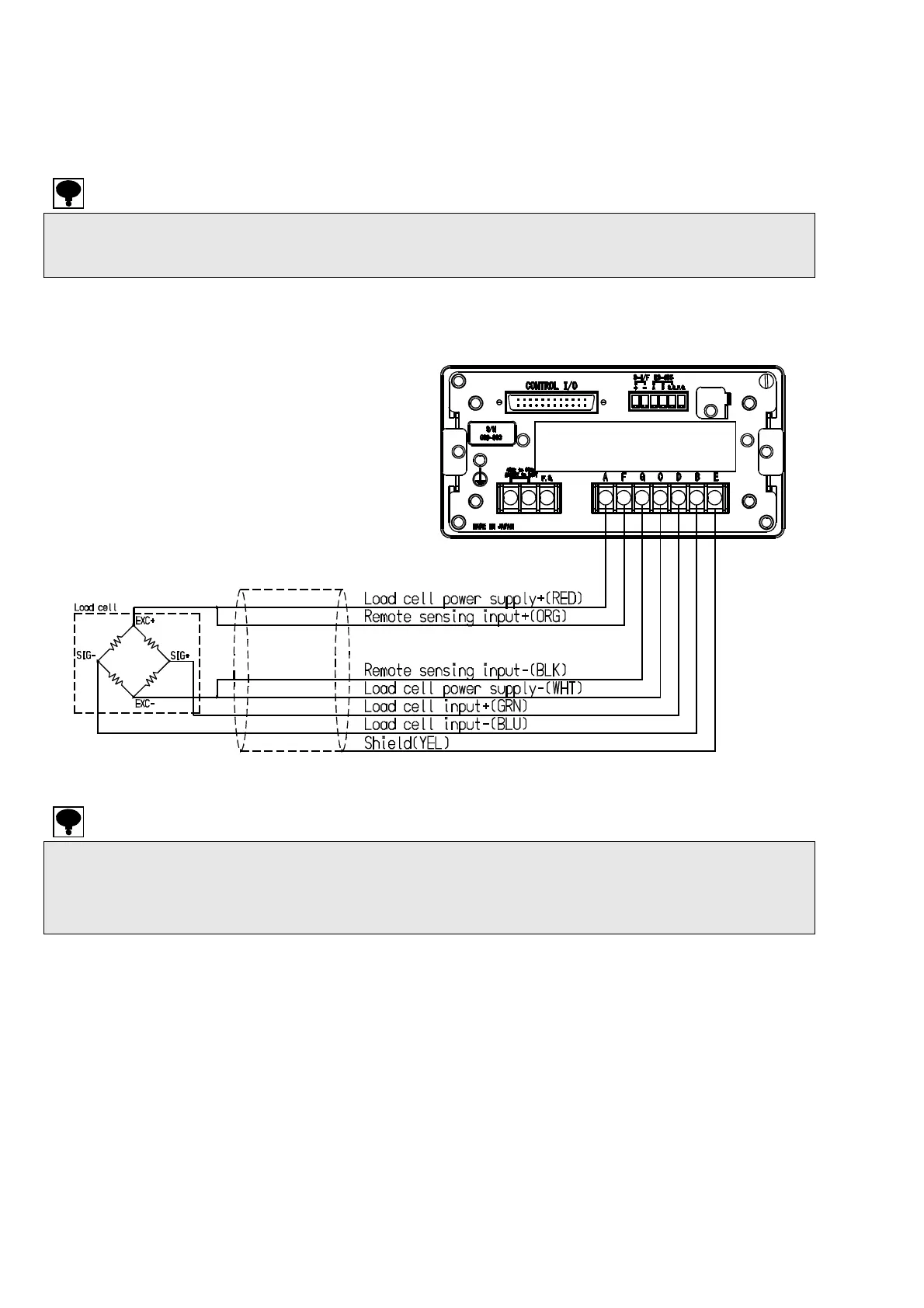

(1) Case 6-wires type connection cable
・ When the length of CAB-501 (our standard cable) is more than 100 m totally, there may have the
case that accuracy is out of warranty as the remote sensing function of the instrument does not
work enough due to the resistance of the cable.
・ Shorten the remote sensing input + and remote sensing input – near the main body of load cell.
However, when the short is made near the instrument, it will not work as the six-wire type.
