8

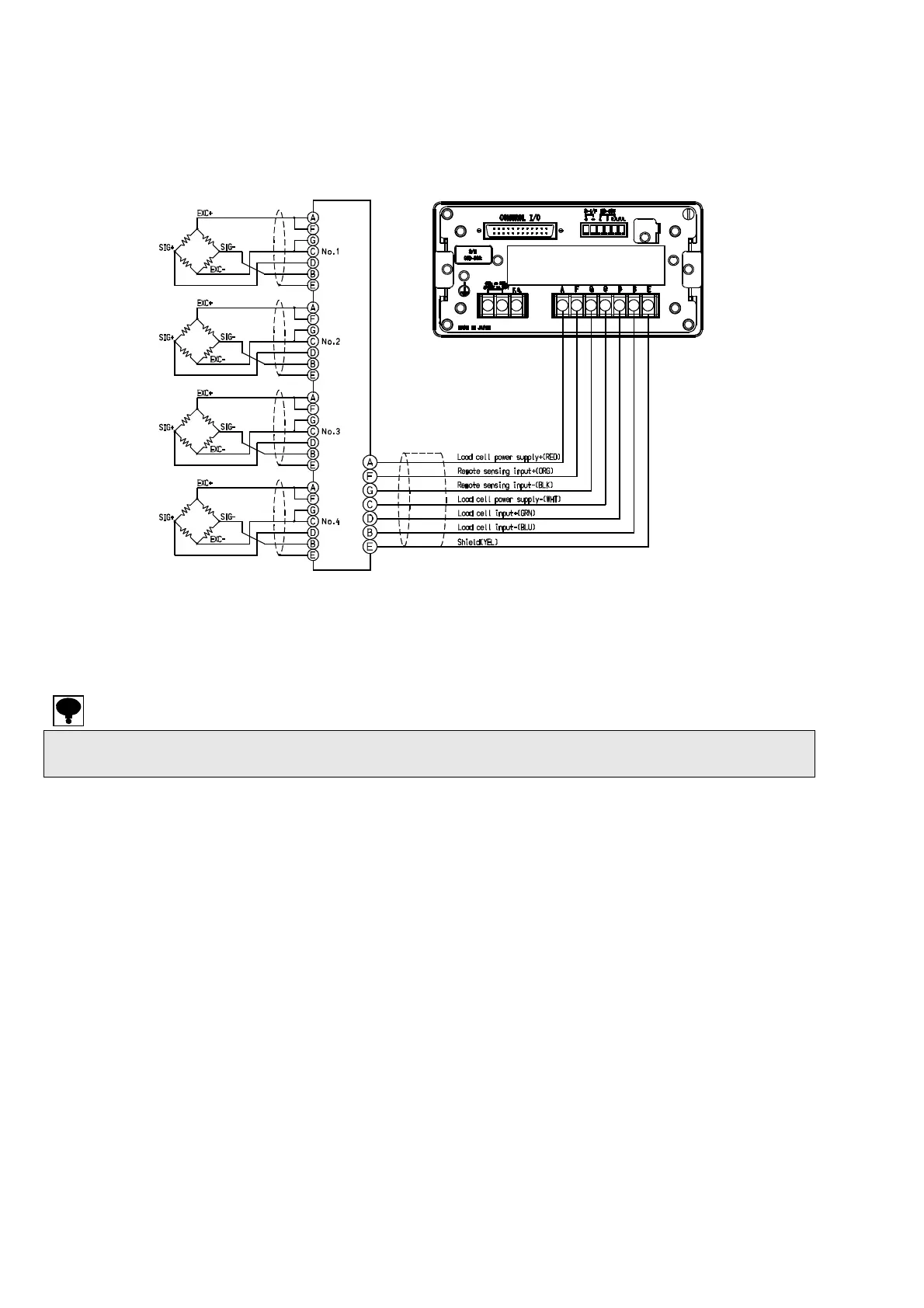

(3) Case connection of the load cells in parallel
The hopper scale, the track scale, etc, have the case to connect with several pieces of the load cells
in parallel. The parallel connections can be easily executed by using optional SB-310 and SB-320
(Summing type junction box).
CSD-903 can make up to 6 parallel connections when the load cell is 350 ohm type. Please consult us
as for a method over 5 parallel connections.
