2-6. Connection with power supply and ground

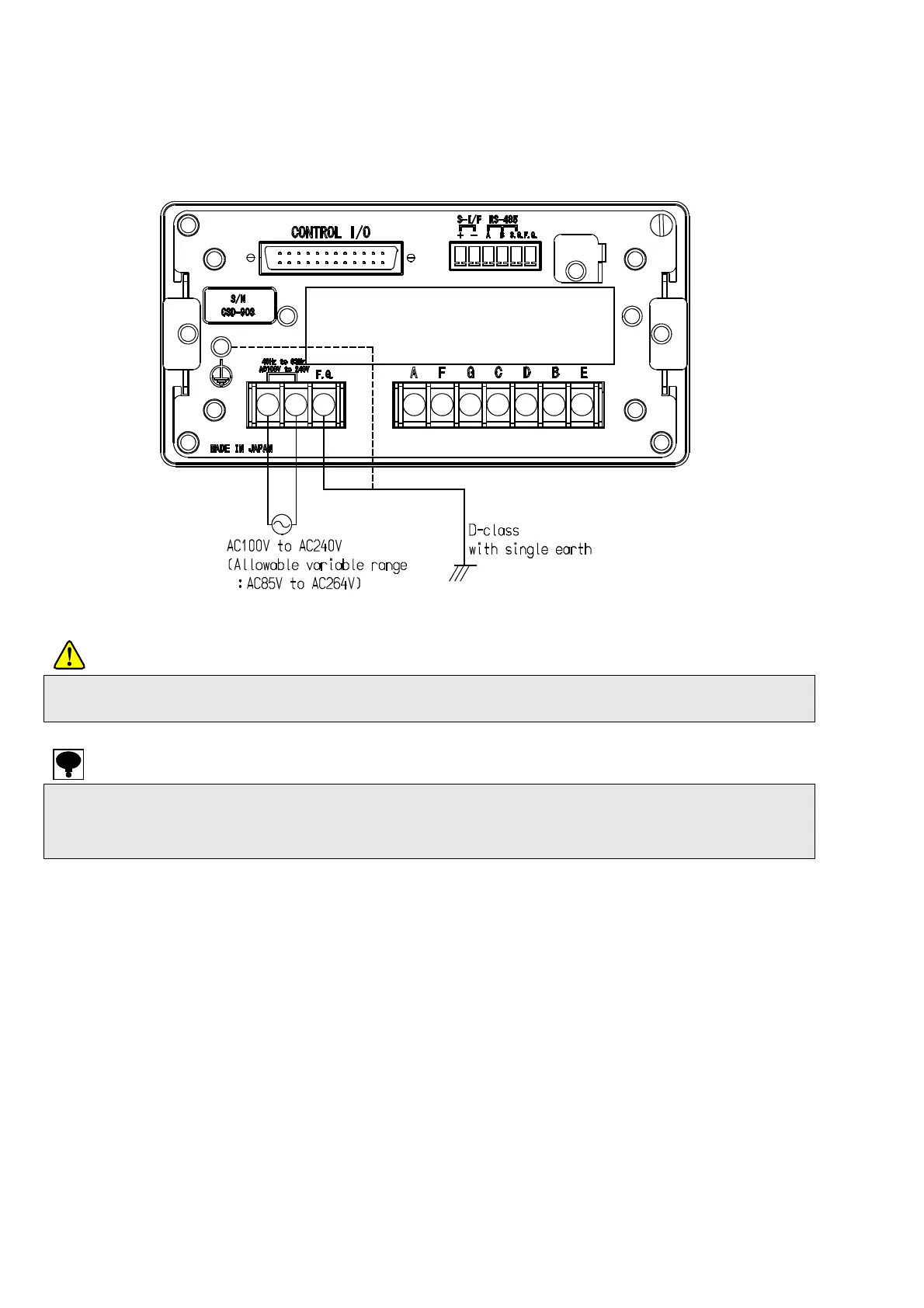

Connect the power supply with the power supply terminal board on the rear panel of the instrument
shown as below figure.
Grounding should be the D class with the single earth.
Warning
Connection with the power supply and the earth should be made surely according to the figures, and
also within the specified power supply condition.
・ The grounding of the instrument should be the D-class with single earth.
It may cause an unexpected malfunction due to the effects of noise from other equipments.
・ When suiting the instrument with the CE conformity standard or JIS standard, please make the
single earth with a protective ground terminal.
