(3) Applicable environment
Warning: The instrument may subject to use in a highly humid area or in full of powder dust.
In such a case, use the instrument by inserting the panel mount gasket attached between the control
panel (cabinet) and the main body.
By inserting the panel mount gasket, the front panel section becomes IP65 (International Protection
Code) or equivalent in dust-proof and water-proof construction.
* Care should be taken when handling the panel mount gasket.
2.

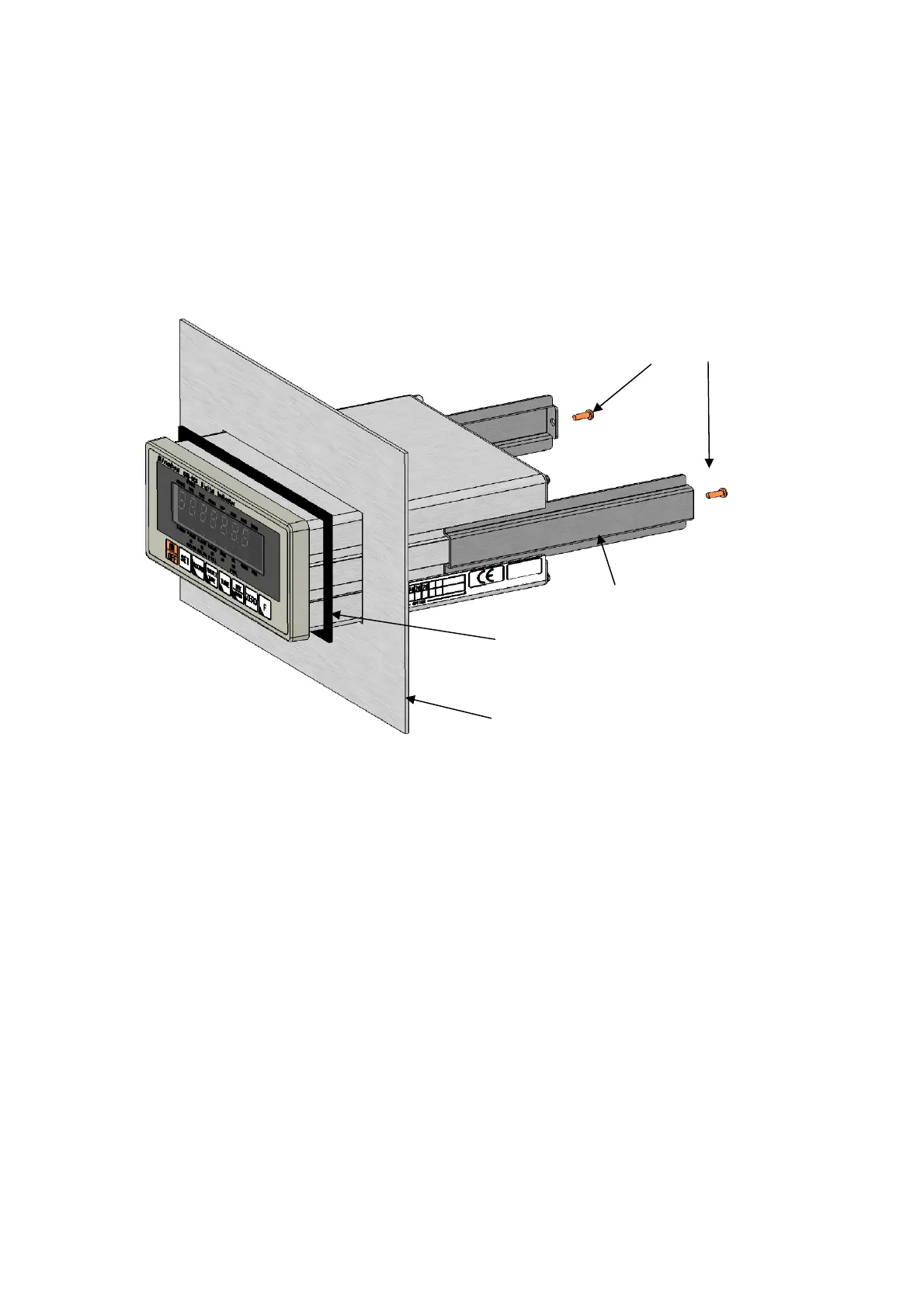

Screw (M3×10 bind)
Panel mounting metal
Panel mount gasket
(Dust proof・Water proof)
Control board (cabinet)
To Next Page
