55
[Example] The data width to which the stabilization filter is executed is selected by the function F-06.
The data width of the stabilization filter for each set value [n] is obtained in the display conversion by
the following expression.
[Data width of stabilization filter] ＝ [Setting value of F-06] x [The scale interval]
When the setting by function F-06 is [10], and the scale interval is [D＝5], it will be as follows;
[Data width of stabilization filter] ＝10 x 5 x 0.1 ＝5 D

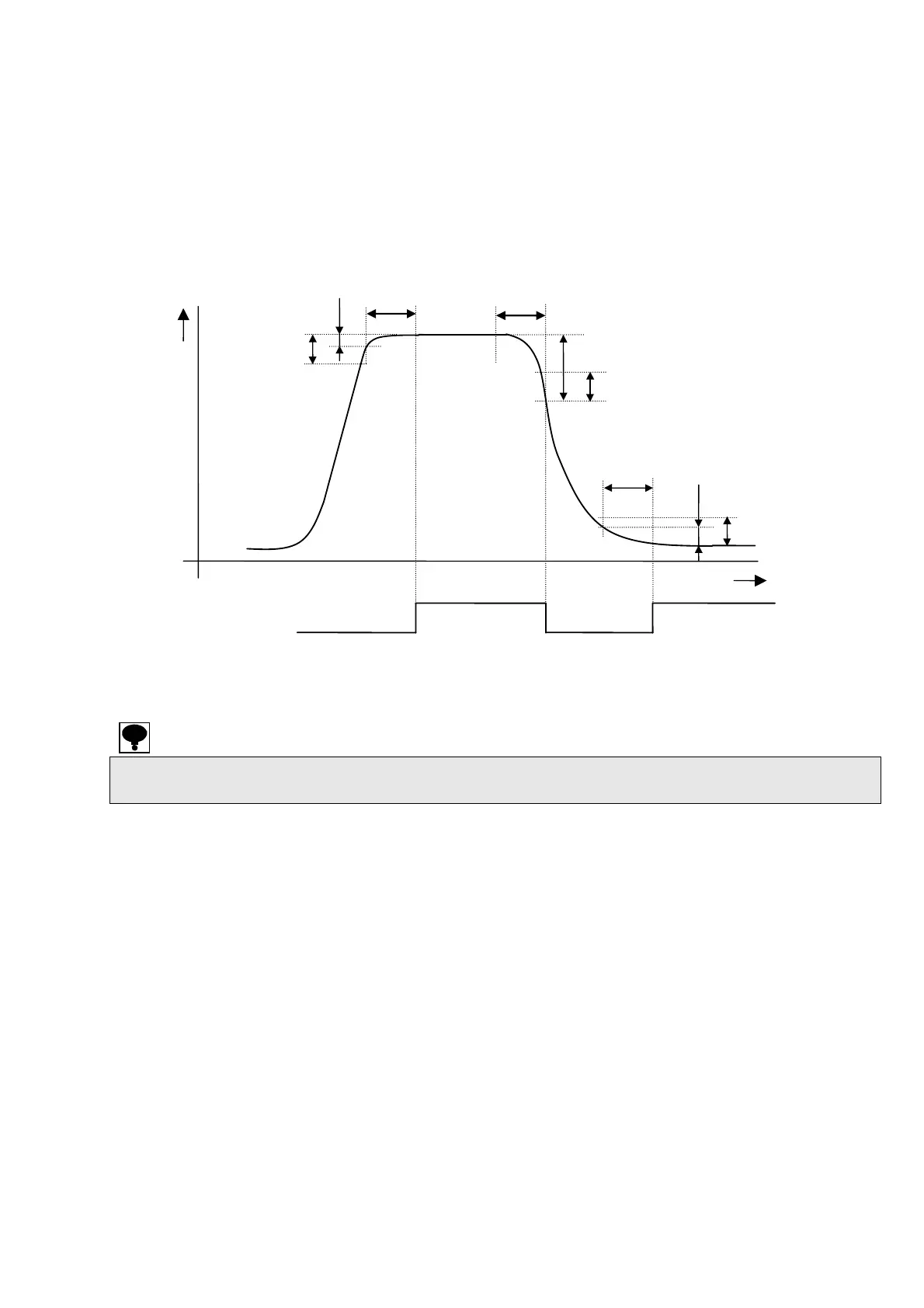

When the change width of the load display is within the value set by function F-06, and when the
condition continues for the time for function F-07 or more, the stabilization filter set by function F-05
becomes effective.
When the digital filter is set by function F-01, the moving average process executes [Moving average
of stabilization filter function (F-05)], after [The moving average of digital filter(F-01)]
Display
Time
Time width of stabilization filter
Data width of
Load variation width
Time width of
stabilization filter
Load variation width
Data width of
stabilization width
Digital filter for
stabilization filter
ON
OFF
Time width of
stabilization filter
Load variation width
Data width of
