9. Measurement mode
CSD-903 consists of four measurement modes. Please set it with [Clause 9-1].
In addition, please set each measurement comparison value in referring to [Clause 9-2].
Furthermore, there are two control modes about [Simple comparative mode], [Sequential mode],
and they divide to [Batch mode], and [Discharge mode].
Please control the supply of the raw material to the measurement hopper while observing the full
amount output by PLC etc.
CSD- 903
1）Simple comparison mode
2）Sequence mode
3）4 steps comparator mode 1
Batching
m
ode
Discharge mode
Batching mode
Discharge mode
4）4 steps comparator mode 2
Supply gate
Full･Medium･Dribble flow
Measurement hopper
Raw material
Lode cell
Container
Discharge gate
Full amount output
Programmable logic controller
F
・
F
M
・
F
D
・
F

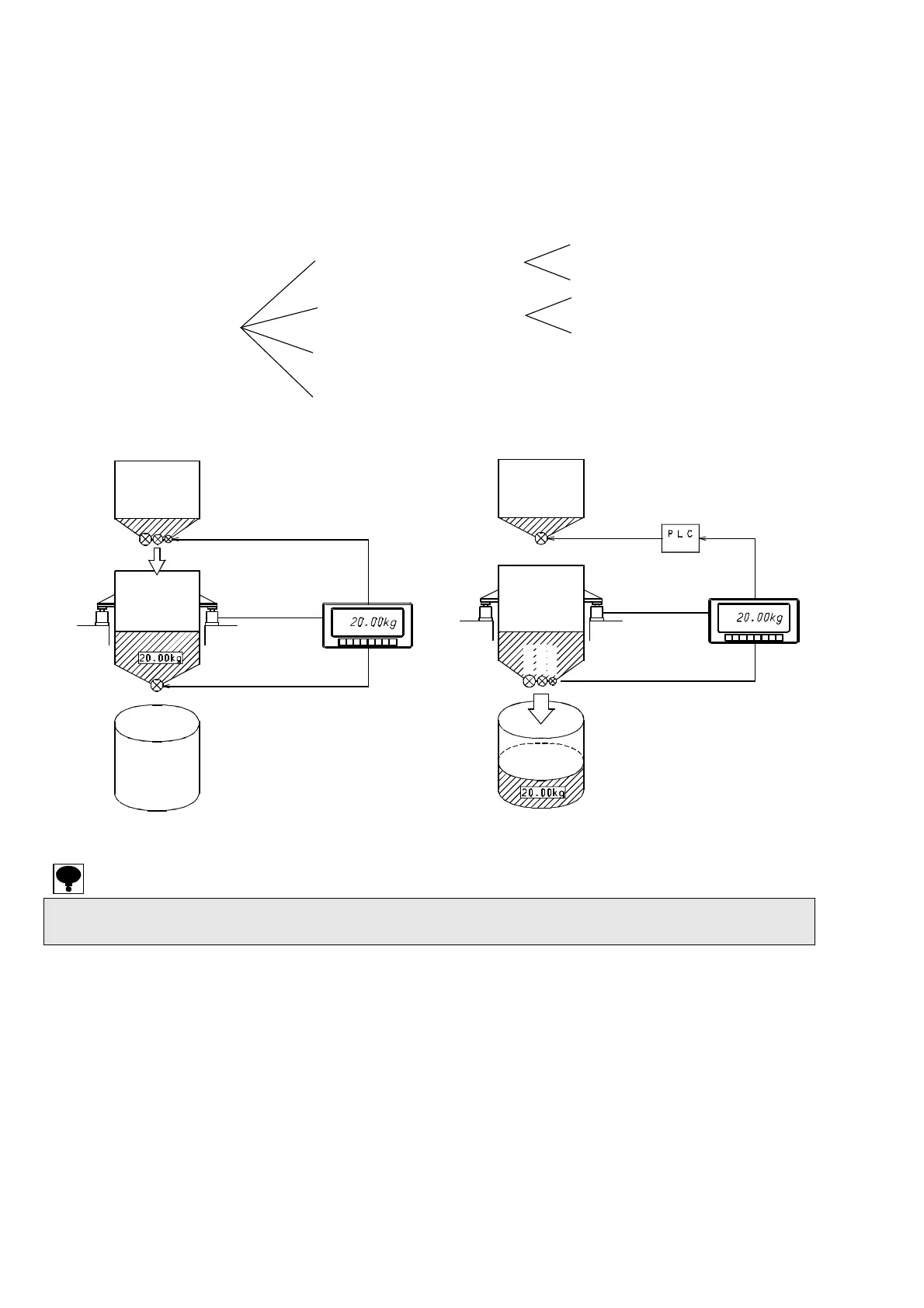

Examp le for measuring by discharge mode
Raw material
Discharge gate
Batch gate
Container
Lode cell
Discharge
Example for measuring by batch mode
Full･Medium･Dribble flow
Measurement hopper
