Minelab F3 Instructions

F3 INSTRUCTOR NOTES
Minelab Countermine Division Safety Through Excellence
8
P0616-A
Electronics
Pack
Lock
Lever
Battery
Pack
Upper
Shaft

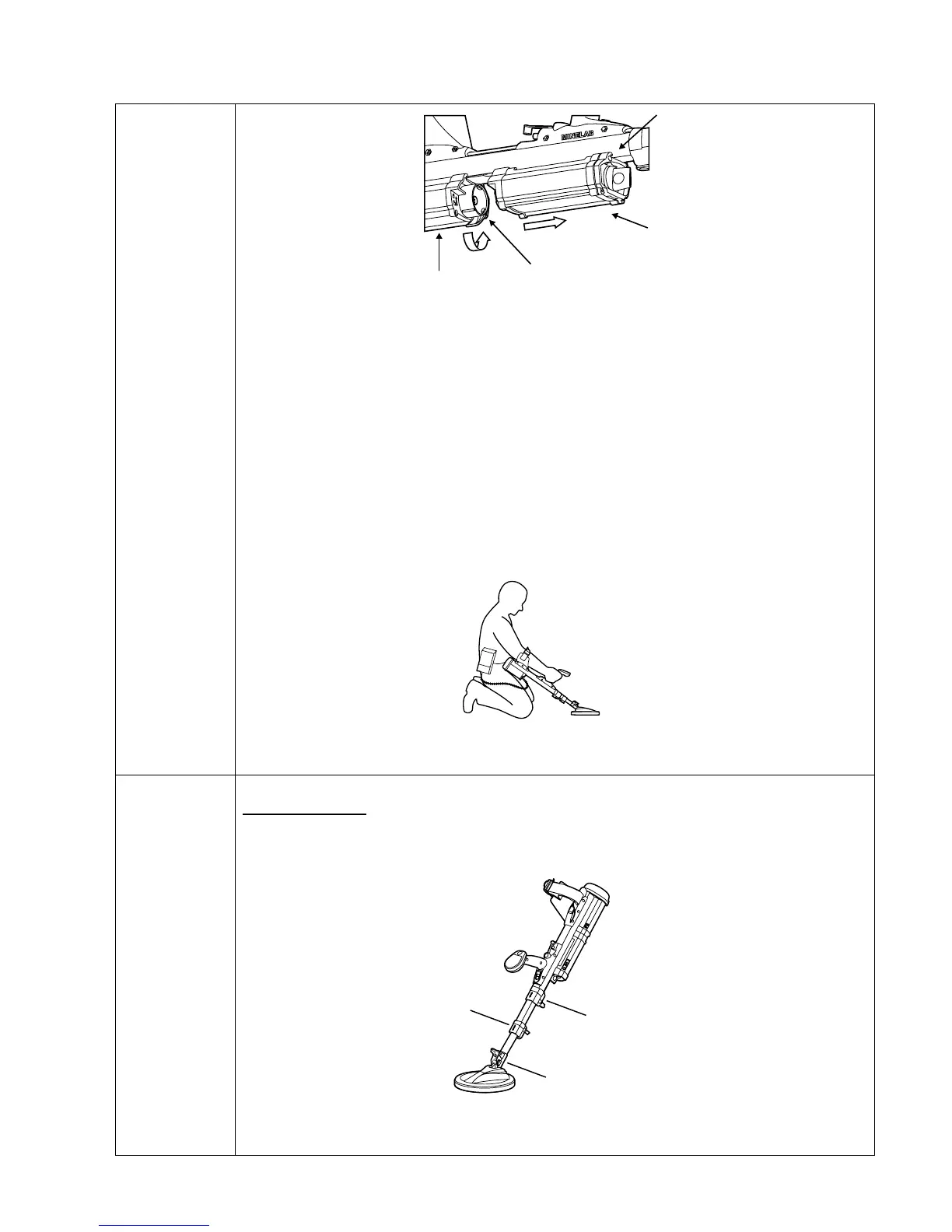

o Slowly slide the Battery Pack towards the Electronics Pack until
the connector is firmly engaged. Secure the Battery Pack by
rotating the Lock Lever in a clockwise motion into the locked
position.
o If required, the Battery Pack can be separated from the Upper
Shaft thereby reducing the overall weight of the detector. Using
the bayonet connectors at each end of the Extension Cable
connect the cable to the Battery Pack and feed the cable through
the base of the Battery Pack Bag before connecting to the
Electronics Pack. The Battery Pack Bag can then be clipped onto
a belt worn by the operator.
P0653-A
Nine
F3 Preparation
• Extend Middle and Lower Shafts to suit demining Position
Upper
Camlock
Middle
Camlock
Lower
Camlock
P0617-A
o Open the Lower Camlock and rotate the coil to the desired
position. The normal operating position of the coil is in line with the
shaft
. However, the coil can also be positioned at right angles to

Minelab F3 Specifications

General

Brand	Minelab
Model	F3
Category	Metal Detector
Language	English
