Minelab GPX 5000 Quick Start Guide

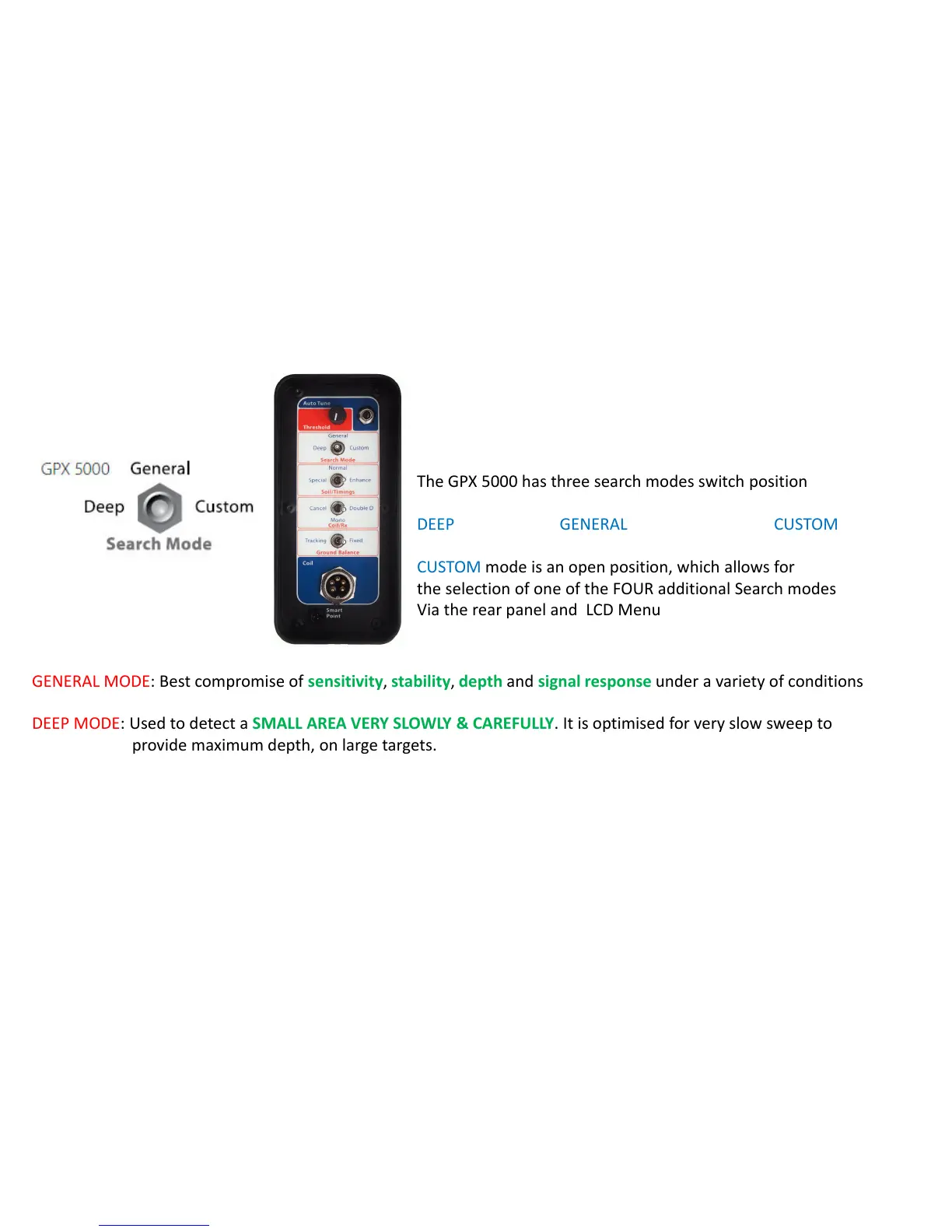

The GPX 5000 has three search modes switch position
DEEP GENERAL CUSTOM
CUSTOM mode is an open position, which allows for
the selection of one of the FOUR additional Search modes
Via the rear panel and LCD Menu
GENERAL MODE: Best compromise of sensitivity, stability, depth and signal response under a variety of conditions
DEEP MODE: Used to detect a SMALL AREA VERY SLOWLY & CAREFULLY. It is optimised for very slow sweep to
provide maximum depth, on large targets.

Minelab GPX 5000 Specifications

General

Technology	MPS, DVT & SETA
Ground Balance	Automatic and Manual
Discrimination	Iron Reject
Display	LCD
Battery Life	Up to 12 hours
Coil	11" Double-D coil
Audio Output	Built-in speaker, headphone jack
Battery	Lithium-ion rechargeable battery
Length	1100 mm - 1300 mm (43.3" - 51.2")
Waterproof	Coil is waterproof; control box is not
Target Identification	Audio only
Weight	2.4 kg (5.3 lbs) including battery
Headphone Jack	6.35 mm (1/4")
