Minelab GPX 5000 Quick Start Guide

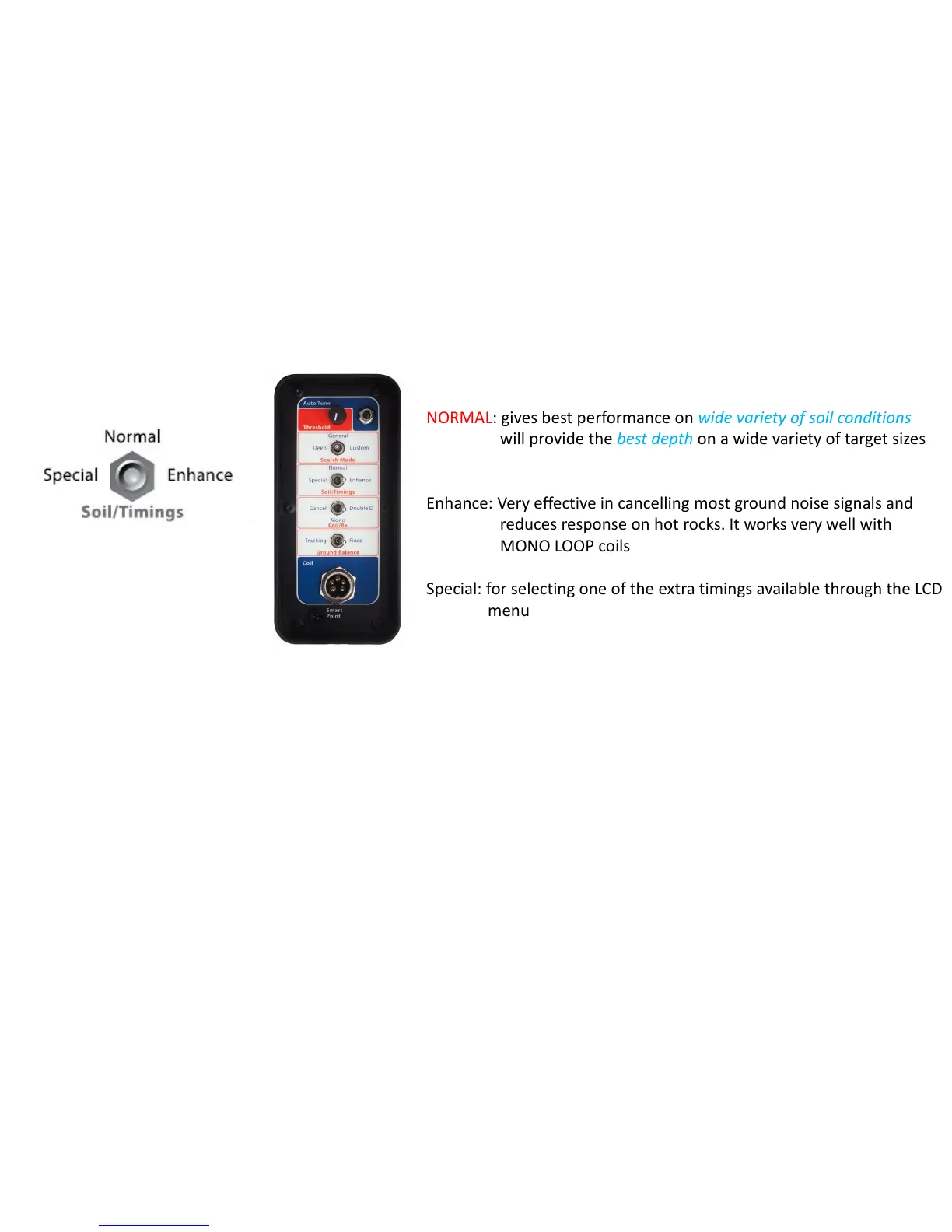

NORMAL: gives best performance on wide variety of soil conditions
will provide the best depth on a wide variety of target sizes
Enhance: Very effective in cancelling most ground noise signals and
reduces response on hot rocks. It works very well with
MONO LOOP coils
Special: for selecting one of the extra timings available through the LCD
menu

Minelab GPX 5000 Specifications

General

Technology	MPS, DVT & SETA
Ground Balance	Automatic and Manual
Discrimination	Iron Reject
Display	LCD
Battery Life	Up to 12 hours
Coil	11" Double-D coil
Audio Output	Built-in speaker, headphone jack
Battery	Lithium-ion rechargeable battery
Length	1100 mm - 1300 mm (43.3" - 51.2")
Waterproof	Coil is waterproof; control box is not
Target Identification	Audio only
Weight	2.4 kg (5.3 lbs) including battery
Headphone Jack	6.35 mm (1/4")
