Fuses
Safety information
WARNING
Incorrect and repaired fuses can overload
electrical lines and components. There is a risk
of fire. Never attempt to repair a blown fuse.
Do not replace a nonworking fuse with a sub‐
stitute of another color or amperage rating.◀
Replacing a fuse
The fuses are located in the passenger floor
area under the dashboard.
Plastic tweezers and information on the fuse
types and locations are stored in the fuse box.
1.

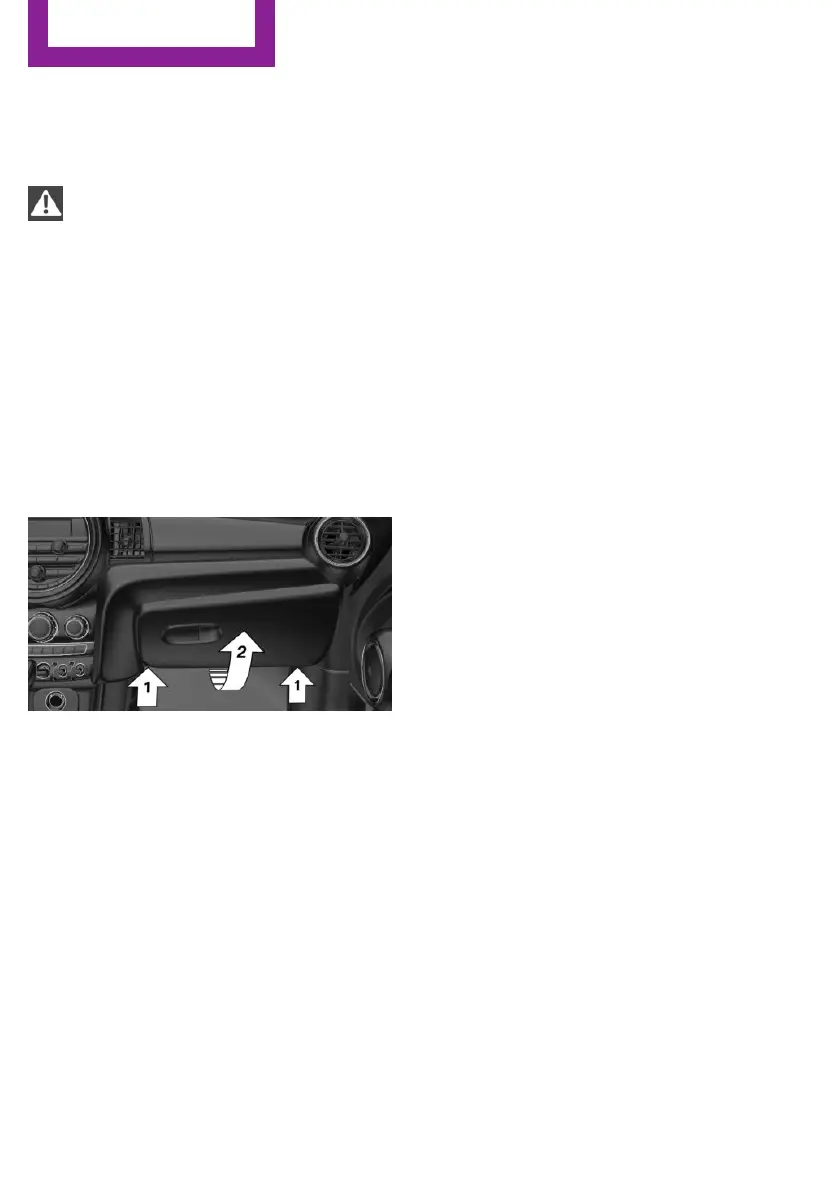

To open, loosen screws, arrow 1.
2. Fold down the fuse holder, arrow 2.
3. Replace the fuse in question.
4. The installation is done in reverse order
from the removal.
