4 HARDWARE CONNECTIVITY
4.1 DIGITAL INPUT
Connect a single digital source to the optical (TOSLINK) connector. Thanks to its asynchronous sample rate
convertor (ASRC), all sample rates between 44.1 and 192 kHz are accepted.
Note: the digital input accepts only a stereo PCM digital signal. It does not accept encoded or multichannel
digital audio (such as Dolby Digital or DTS).
4.2 ANALOG INPUTS AND OUTPUTS

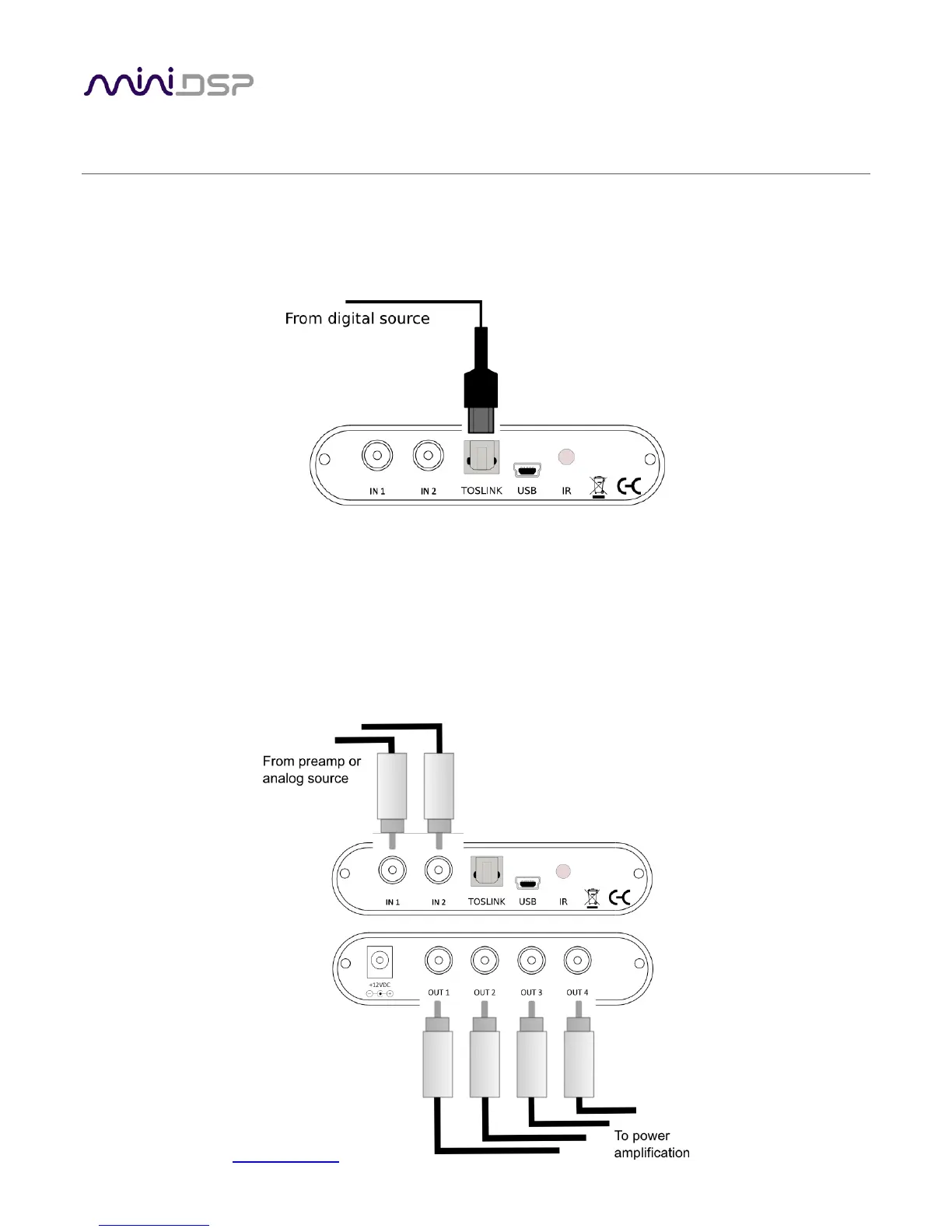

Connect an analog source or preamplifier to the RCA connectors on the front panel, and connect the four analog
outputs to power amplification or subwoofer(s). Be sure to take careful note of the channel numbering shown in
this diagram and on the rear panel.
