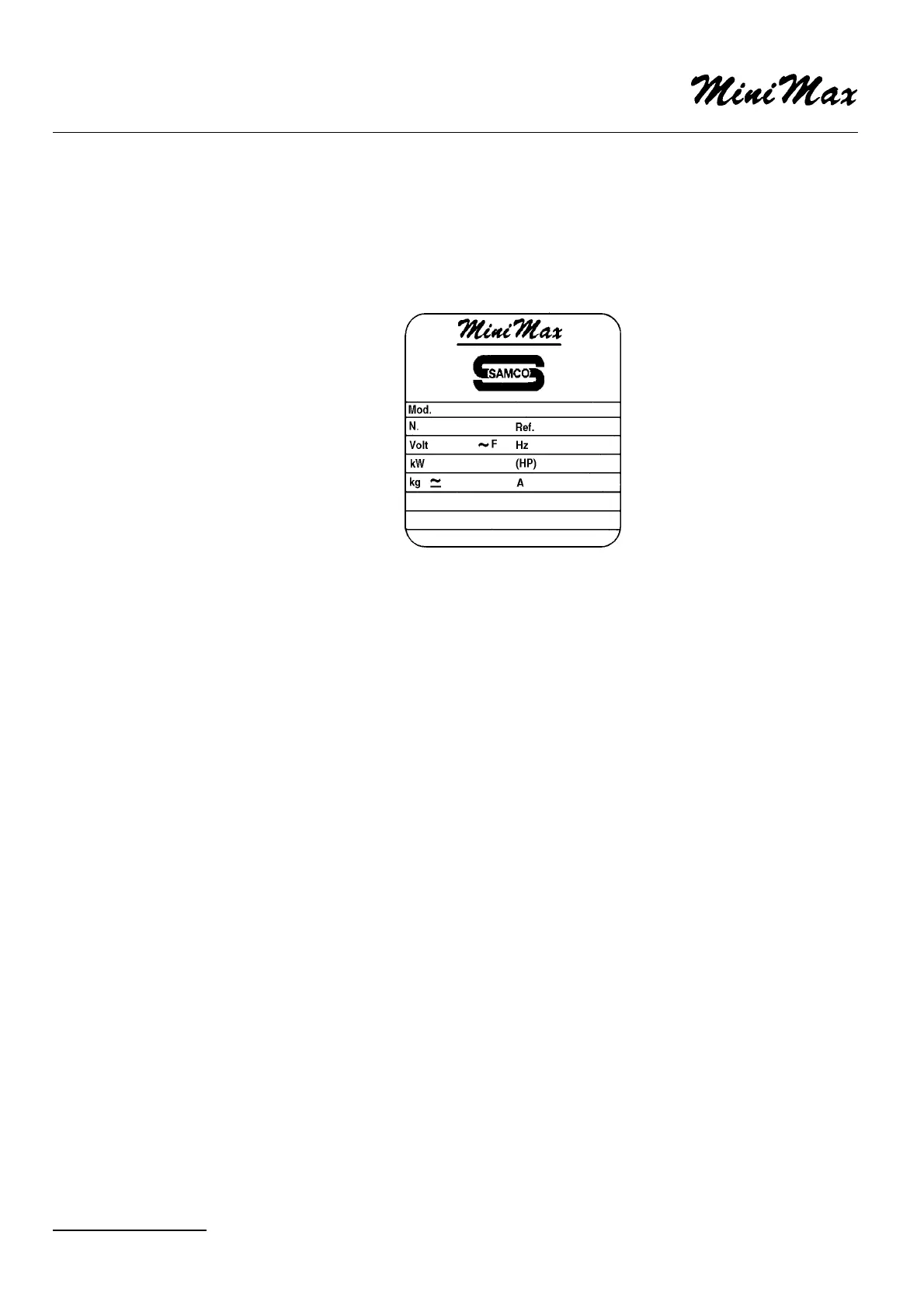

Machine data are punched on the metallic plate applied to the side of the machine frame.
Mod. Machine model
N. Serial number
Ref. Internal reference
Volt Voltage (V)
- Phase number
Hz Frequency (Hz)
kW Installed power
kg Gross weight
A Electric input (Ampere)
1-41-4
1-41-4
1-4
CONDITIONS FORESEEN FOR THE USE AND PROHIBITIONSCONDITIONS FORESEEN FOR THE USE AND PROHIBITIONS
CONDITIONS FORESEEN FOR THE USE AND PROHIBITIONSCONDITIONS FORESEEN FOR THE USE AND PROHIBITIONS
CONDITIONS FORESEEN FOR THE USE AND PROHIBITIONS
Working permitted: profiling, not-through profiling, shaping.
Material which may be processed:solid wood, plywood, chipboards, fiber panels; the panels may
be coated with laminate or finishing material and eventually strips are glued to their edges.
DIMENSION OF WORKPIECE TO BE MILLEDDIMENSION OF WORKPIECE TO BE MILLED
DIMENSION OF WORKPIECE TO BE MILLEDDIMENSION OF WORKPIECE TO BE MILLED
DIMENSION OF WORKPIECE TO BE MILLED
Min. piece size for profiling operation:
Thickness 8mm - Width 8 mm - Length 220 mm
Max. size of solid wood piece for profiling operation:
Thickness 250 mm - Width 250 mm - Length 1000 mm
in case of longer pieces use rest tables
TOOLS WHICH MAY BE USEDTOOLS WHICH MAY BE USED
TOOLS WHICH MAY BE USEDTOOLS WHICH MAY BE USED
TOOLS WHICH MAY BE USED
The machine has been designed to use only tools in accordance with prEN 847-1 norm, suitable for
the material and for manual feed.
By manual feed we mean not only the guide of the piece by hand but also by a sliding table or a feeder.
Features of tools for manual feed:
- max. chip thickness 1,1 mm
- tool shape round
- chip exhaust space narrow
The relation between tool and rotation speed is explained in cap. 7-4.
