FAN MOTOR
ASSEMBLY
FLYWHEEL SCREW
FIG. 15
INSTALLING THE FLYWHEEL

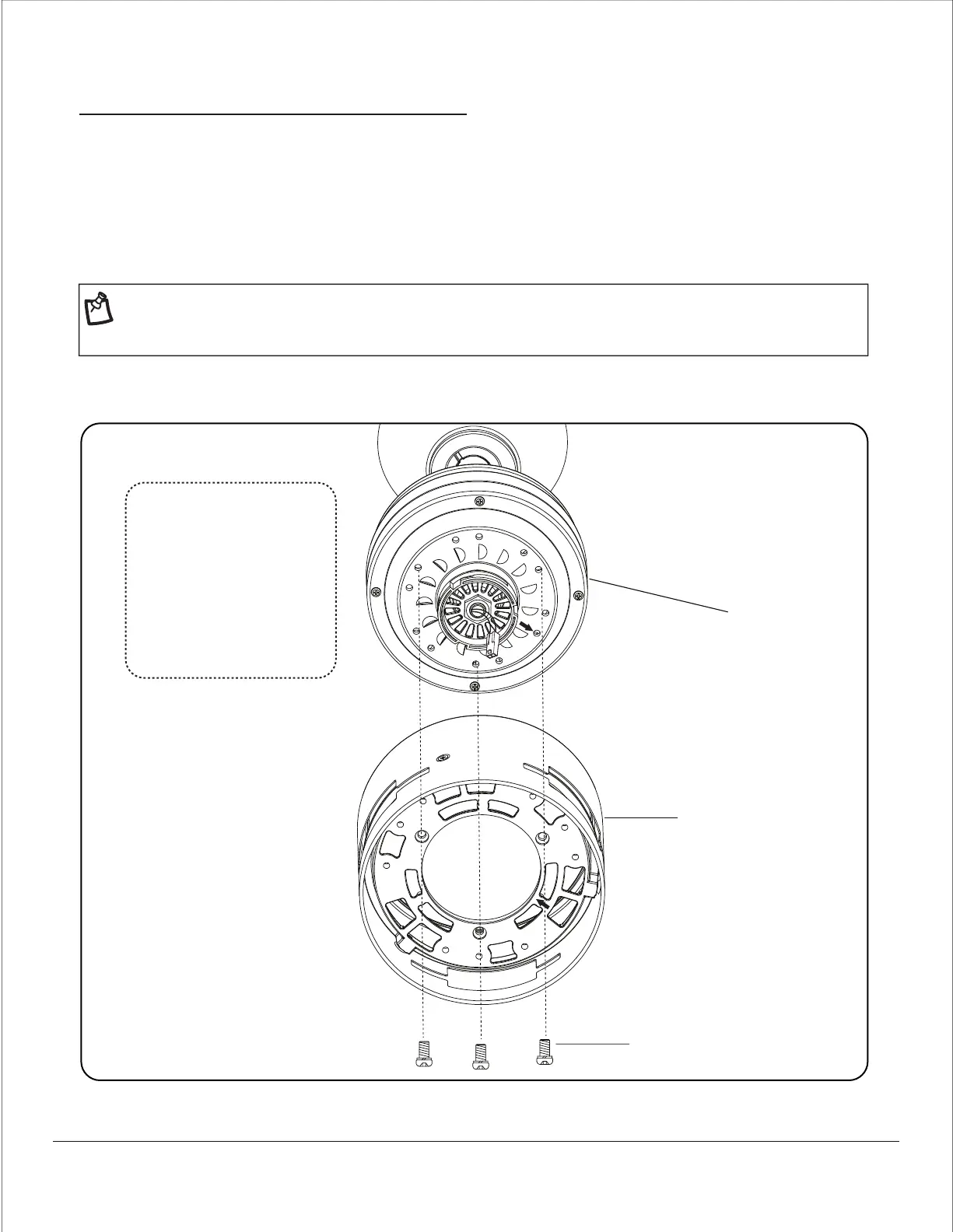

Tighten the flywheel onto the bottom of fan motor assembly by using the three flywheel screws. (Fig.15)
FLYWHEEL
IMPORTANT: Please follow the instruction manual and DO NOT use the wrong screws in the step process. The
blade screws are longer than the flywheel screws therefore DO NOT use blade screws to install the flywheel
by mistake and damage the motor.
IMPORTANT: Please follow
the instruction manual and
DO NOT use the wrong
screws in the step process.
The blade screws are longer
than the flywheel screws
therefore DO NOT use blade
screws to install the flywheel
by mistake and damage the
motor.
Pay attention to the arrow labels on the fan motor assembly and the flywheel. Start from this label and align the three
holes on the flywheel to the three holes on the fan motor assembly.
