Minka Ormond - Installing the Fan Blades; Installing the 16 W LED Assembly

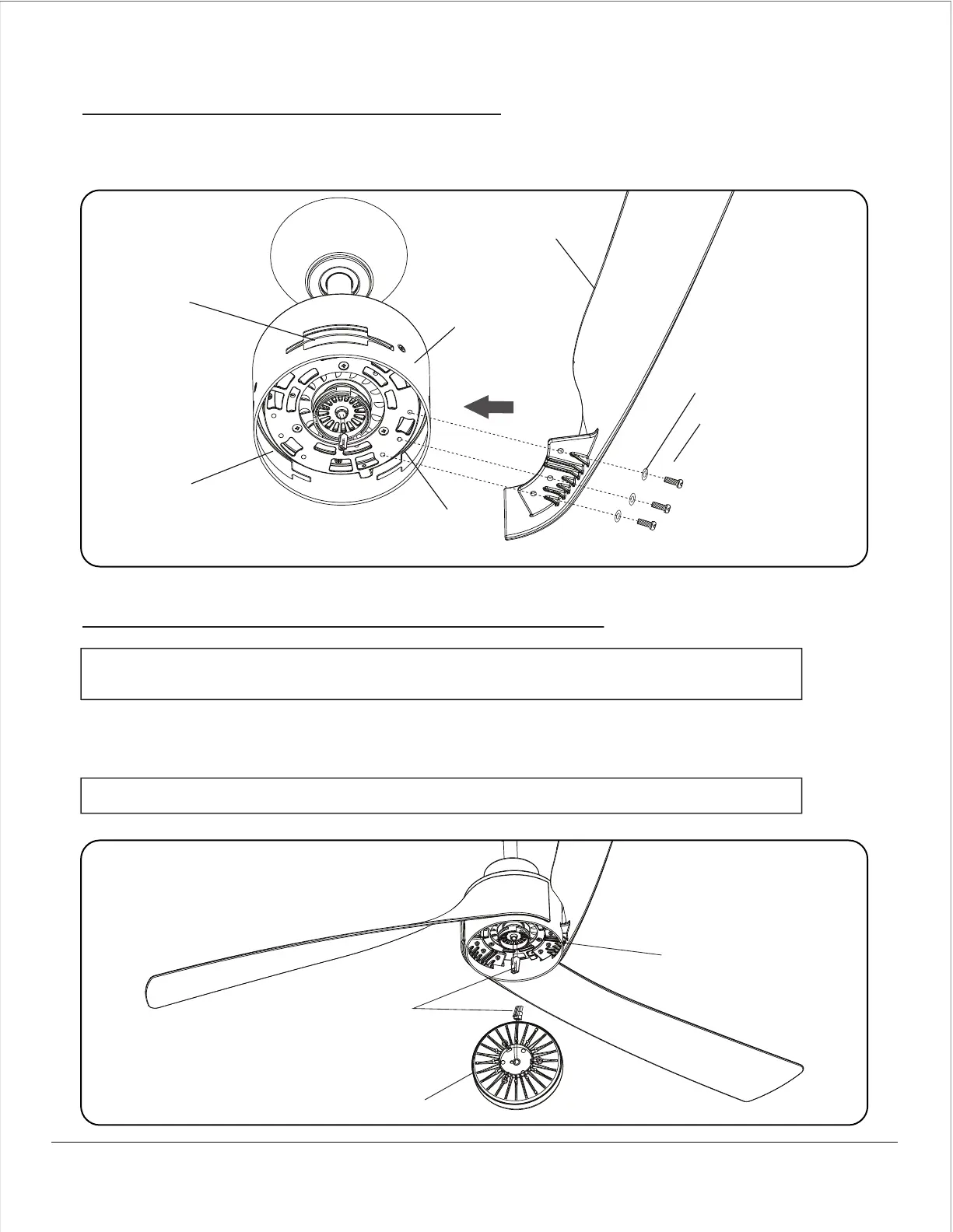

Insert the fan blade into the slot of flywheel and tighten the fan blade by using the three blade screws and the three metal
washers securely. Repeat same process for the other two blades. (Fig.16)
INSTALLING THE 16W LED ASSEMBLY
16W LED ASSEMBLY
11
WIRE
CONNECTIONS
SWITCH BOX
FIG. 16
FIG. 17
Step 1. While holding the 16W LED assembly under your fan, firmly snap the wire connection plugs together.
Step 2. Attach the 16W LED assembly to the switch box by twisting tightly.
NOTE: This is an integrated LED light kit assembly and can not be disassembled to prevent electronic shock.
CAUTION: To Reduce The Risk Of Electric Shock, Disconnect The Electrical Supply Circuit To The Fan
Before Installing The Light Kit.
FLYWHEEL
BLADE
METAL WASHER
BLADE SCREW
SLOT ON THE
FLYWHEEL
SLOT ON THE
FLYWHEEL
SLOT ON THE
FLYWHEEL
INSTALLING THE FAN BLADES
