10

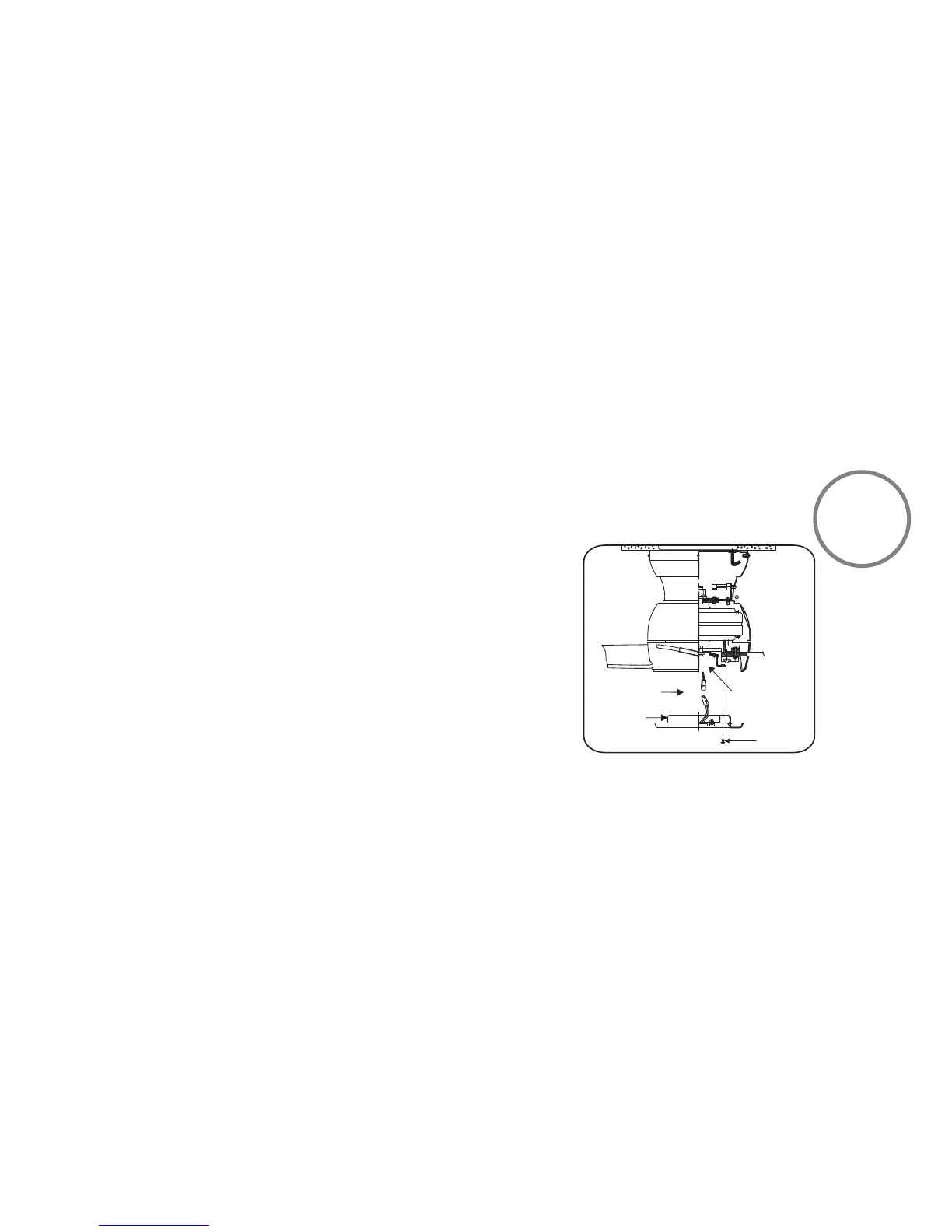

Fig 12
SCREWS
CONNECTORS
LED LIGHT KIT
INSTALLING THE LED LIGHT KIT
CAUTION: Before starting installation, make sure power is turned off at the circuit breaker.
CAUTION: The light source is designed for this specific application and can overheat if serviced by
unrtained personnel. If any servicing is required, the product should be returned to an authorized
service facility for examination or repair.
Step 1. Remove 1 of 3 screws from the mounting plate and loosen the other 2 screws. (Do not
remove)
Step 2. While holding the LED light kit under the fan motor assembly, make the 2-pin wire
connections: (Fig. 12)
- White to white - Black to black
Step 3. Place the key holes in the LED light kit over the two mounting screws previously loosened
from the mounting plate. Turn the LED light kit until the LED light kit locks in place at the narrow
section of the key holes. Secure by tightening the two screws previously loosened and the one
previously removed. (Fig. 12)
MOUNTING
PLATE
