minnkotamotors.com | 5
©2016 Johnson Outdoors Marine Electronics, Inc.
INSTALLING THE ULTERRA
Your new Ulterra comes with everything you’ll need to directly install it to the boat. This motor can be directly mounted to the
boat or it may be coupled with a Minn Kota quick release bracket for ease of mounting and removal. For installation with a quick
release bracket, refer to the installation instructions provided with the bracket. For compatible quick release mounting bracket,
please visit minnkotamotors.com. To install the motor directly to the boat, please follow the instructions provided in this manual.
Please review the parts list, mounting considerations and tools needed for installation prior to getting started. For additional
product support and to locate your nearest dealer, please visit minnkotamotors.com.

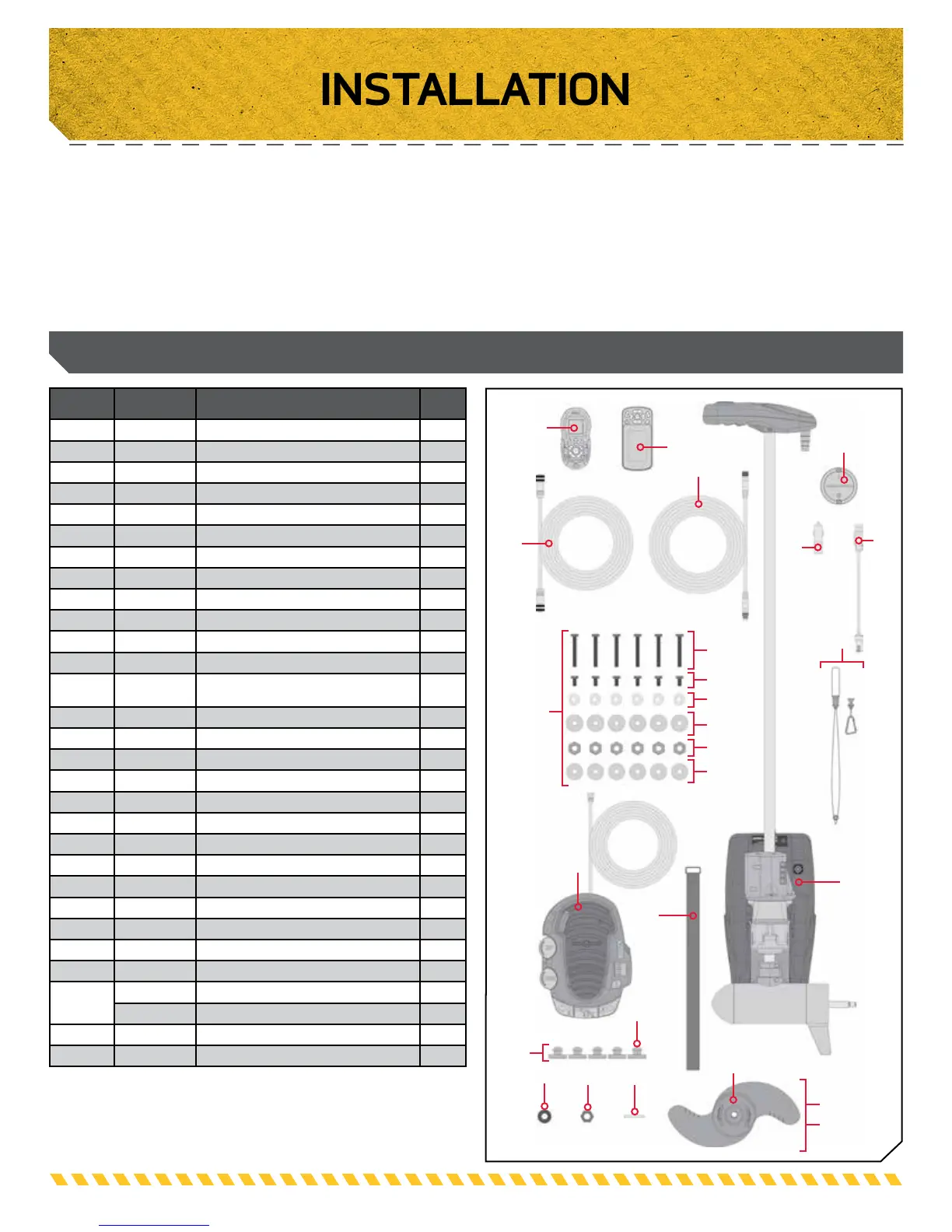

INSTALLATION PARTS LIST
10
11
16
17
15
13
14
6
7
8
19 20 18
21
1
9
22
4
5
3
12
BB
CC
DD
AA
2
Item /
Assembly
Part # Description Qty.
1
✖
MOTOR ASSEMBLY
1
AA
2994859
BAG ASY-TERROVA/V2,RUB.BUMPERS
1
2
2325110
PAD, FOOTPEDAL
5
BB
2994917
BAG ASSY, ULTERRA MTG HARDWARE
1
3
2203430
SCREW-1/4-20 X 2.0 HHCS SS
6
4
2203431
SCREW-1/4-20 X 0.5 HHCS SS
6
5
2201725
WASHER-CLIPPED, 1/4", 1.00" OD
6
6
2261713
WASHER-1/4 FLAT 18-8 SS
6
7
2263103
NUT-1/4-20 NYLOCK SS
6
8
2301720
WASHER-MOUNTING - RUBBER
6
9
2203800 STRAP, HOLD DOWN
1
10 2994075 t
REMOTE ASSEMBLY, IPILOT
1
11 2994076 t
REMOTE ASSEMBLY LINK
TOUCHSCREEN
1
p
2397101 t MANUAL, QUICK REF., iPILOT 1.6 1
p
2397103 t MANUAL-QUICK REF., iPILOT 3.0 1
12 2390800 t
LANYARD, REMOTE W/ CARABINER
1
13
2373241 t CABLE, USB REMOTE CHARGER LINK
1
14
2375901 t ADAPTER, USB DC POWER LINK
1
15
2996400 t
HEADING SENSOR SEMBLY 1
16
490389-1 t CABLE, ETH (M12-M-M12-F, 30'
1
17
2211415 CABLE-EXTENSION, PD/AP 110"
1
CC
1378132 80# THRUST PROP KIT
1
DD
1378160 112# THRUST PROP KIT
1
18
2262658 PIN-DRIVE 1" X 3/16" S/S
1
19
2091701 WASHER-PROP (LARGE) MAX101
1
20
2093101 NUT-PROP,NYLOC,LG,MX101 3/8 SS
1
21
2331160 PROP-WW2 (4") w/ADP.RING
1
2341160 PROP-WW2 (4.5) w/ADP.RING
1
p
2207113 MANUAL, INSTALL GUIDE, ULTERRA
1
22
2994740 FOOT PEDAL ASSY, ULTERRA
1
p Not shown on Parts Diagram.
✖ This part is included in an assembly and cannot be ordered individually.
t Only available with models factory installed with i-Pilot or i-Pilot Link.
