MINN KOTA PRECISION MK106PC User Manual

minnkotamotors.com | 23
©2015 Johnson Outdoors Marine Electronics, Inc.
ITEM QTY DESCRIPTION
1 1 SERIAL NUMBER DECAL-CORD
2 4 RUBBER MOUNTING PAD - ROUND
3 4 RUBBER MOUNTIN PAD - SQUARE
4 2 GROMMET
5 1 GROMMET
6 2 OUTPUT CORD TWO COND. 16AWG
7 1 INPUT CORD 18AWG
8 2 BOARD ASSEMBLY
9 1 BOARD POTTING
10 1 INPUT WARNING LABEL
9
8
2
3
6
13
10
7
14
1
12
11
15
17
4
5
16
19
18
20
MK212PC / MK220PC
This page provides Minn Kota® WEEE compliance instructions. Charger can not be disassembled,
but the cords can be cut and removed. For more information about where you should dispose
of your waste equipment for recycling and recovery and/or your European Union member state
requirements, please contact your dealer or distributor from which your product was purchased.
Tools required, but not limited to: wire cutters.
ITEM QTY DESCRIPTION
11 1 BANK 1 DECAL
12 1 BANK 2 DECAL
13 1 BATTERY SELECT OVERLAY
14 1 DECAL
15 1 ERROR CODE DECAL
16 1 WARNING DECAL
17 1 COVER PC. CHARGERS TWO BANK
18 1 AC BOARD CONNECTION 18AWG
19 1 FERRITE BEAD
20 2 FERRITE BEAD

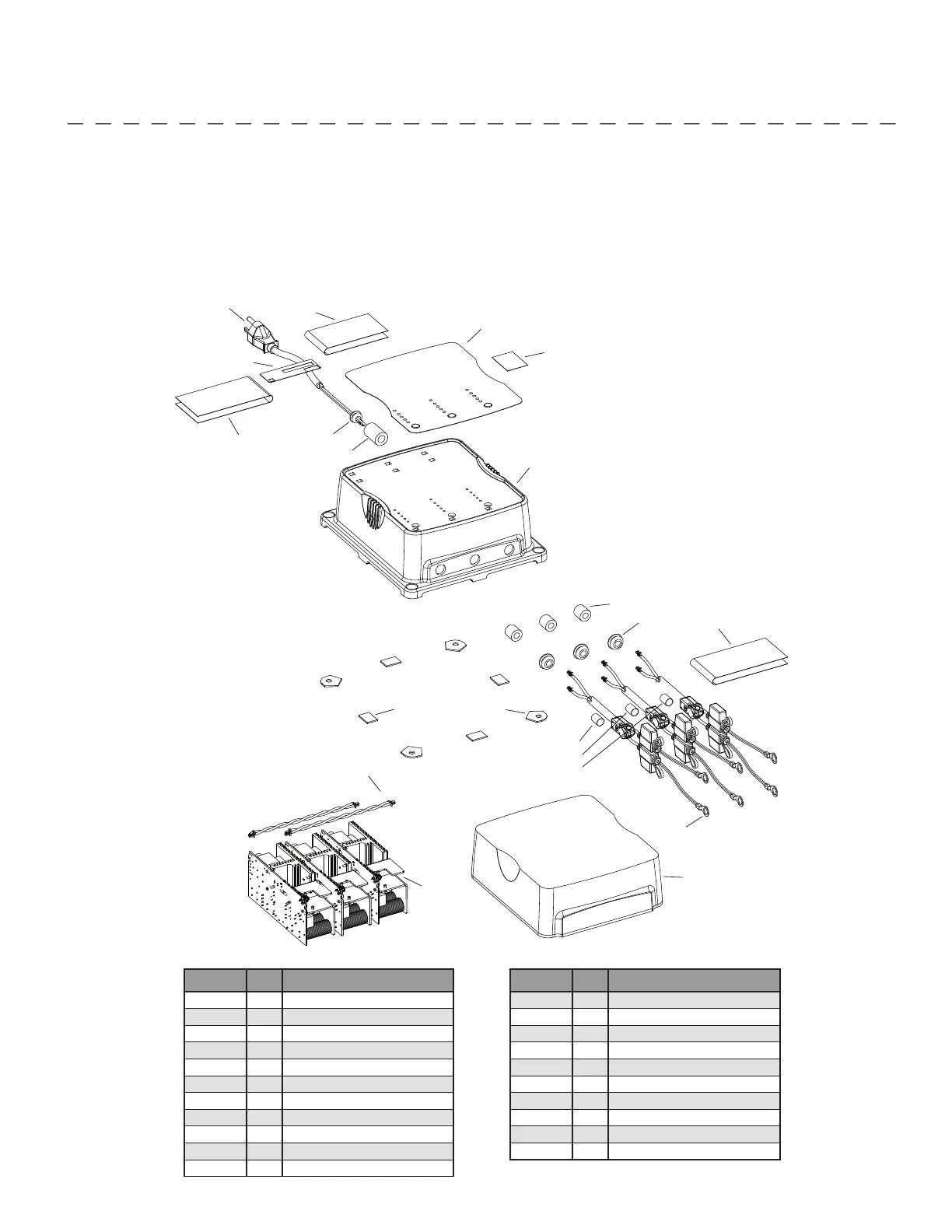

PARTS DIAGRAM & LIST
ITEM QTY DESCRIPTION
1 1 SERIAL NUMBER DECAL-CORD
2 4 RUBBER MOUNTING PAD - ROUND
3 2 RUBBER MOUNTIN PAD - SQUARE
4 1 GROMMET
5 1 GROMMET
6 3 OUTPUT CORD TWO COND. 16AWG
7 1 INPUT CORD 18AWG
8 1 BOARD ASSEMBLY
9 1 BOARD POTTING
10 1 INPUT WARNING LABEL
11 1 BANK 1 DECAL
MK318PC / MK330PC
This page provides Minn Kota® WEEE compliance instructions. Charger can not be
disassembled, but the cords can be cut and removed. For more information about where
you should dispose of your waste equipment for recycling and recovery and/or your
European Union member state requirements, please contact your dealer or distributor
from which your product was purchased.
Tools required, but not limited to: wire cutters.
ITEM QTY DESCRIPTION
12 1 BANK 2 DECAL
13 1 BANK 3 DECAL
14 1 BATTERY SELECT OVERLAY
15 1 DECAL
16 1 ERROR CODE DECAL
17 1 WARNING DECAL
18 1 COVER PC. CHARGERS TWO BANK
19 2 AC BOARD CONNECTION
20 1 FERRITE BEAD
21 3 FERRITE BEAD
9
8
2
3
6
10
7
14
11
12
13
15
17
4
5
16
19
18
20
21
1
