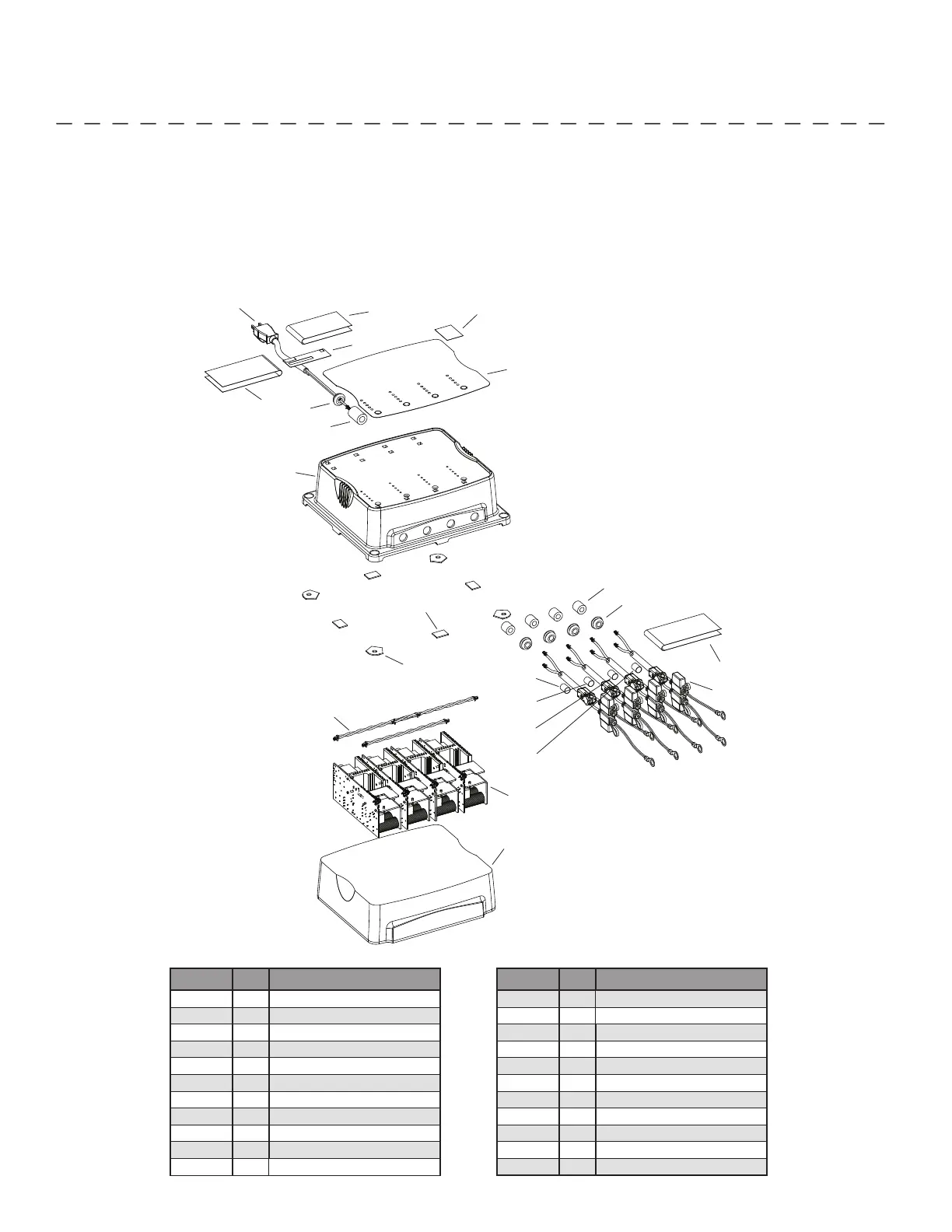

PARTS DIAGRAM & LIST
ITEM QTY DESCRIPTION
1 1 SERIAL NUMBER DECAL-CORD
2 1 GROMMET
3 4 RUBBER MOUNTING PAD - ROUND
4 4 RUBBER MOUNTIN PAD - SQUARE
5 4 GROMMET
6 4 OUTPUT CORD TWO COND. 16AWG
7 1 INPUT CORD 18AWG
8 1 BOARD ASSEMBLY
9 1 BOARD POTTING
10 1 INPUT WARNING LABEL
11 1 BANK 1 DECAL
MK440PC
This page provides Minn Kota® WEEE compliance instructions. Charger can not be
disassembled, but the cords can be cut and removed. For more information about where
you should dispose of your waste equipment for recycling and recovery and/or your
European Union member state requirements, please contact your dealer or distributor
from which your product was purchased.
Tools required, but not limited to: wire cutters.
ITEM QTY DESCRIPTION
12 1 BANK 2 DECAL
13 1 BANK 3 DECAL
14 1 BANK 4 DECAL
15 1 BATTERY SELECT OVERLAY
16 1 DECAL
17 1 ERROR CODE DECAL
18 1 WARNING DECAL
19 1 COVER PC. CHARGERS TWO BANK
20 3 AC BOARD CONNECTION
21 1 FERRITE BEAD
22 4 FERRITE BEAD
9
8
2
3
6
10
7
1
15
17
4
5
16
19
18
20
21
11
12
13
14
22
