INSTALLING THE RIPTIDE POWERDRIVE

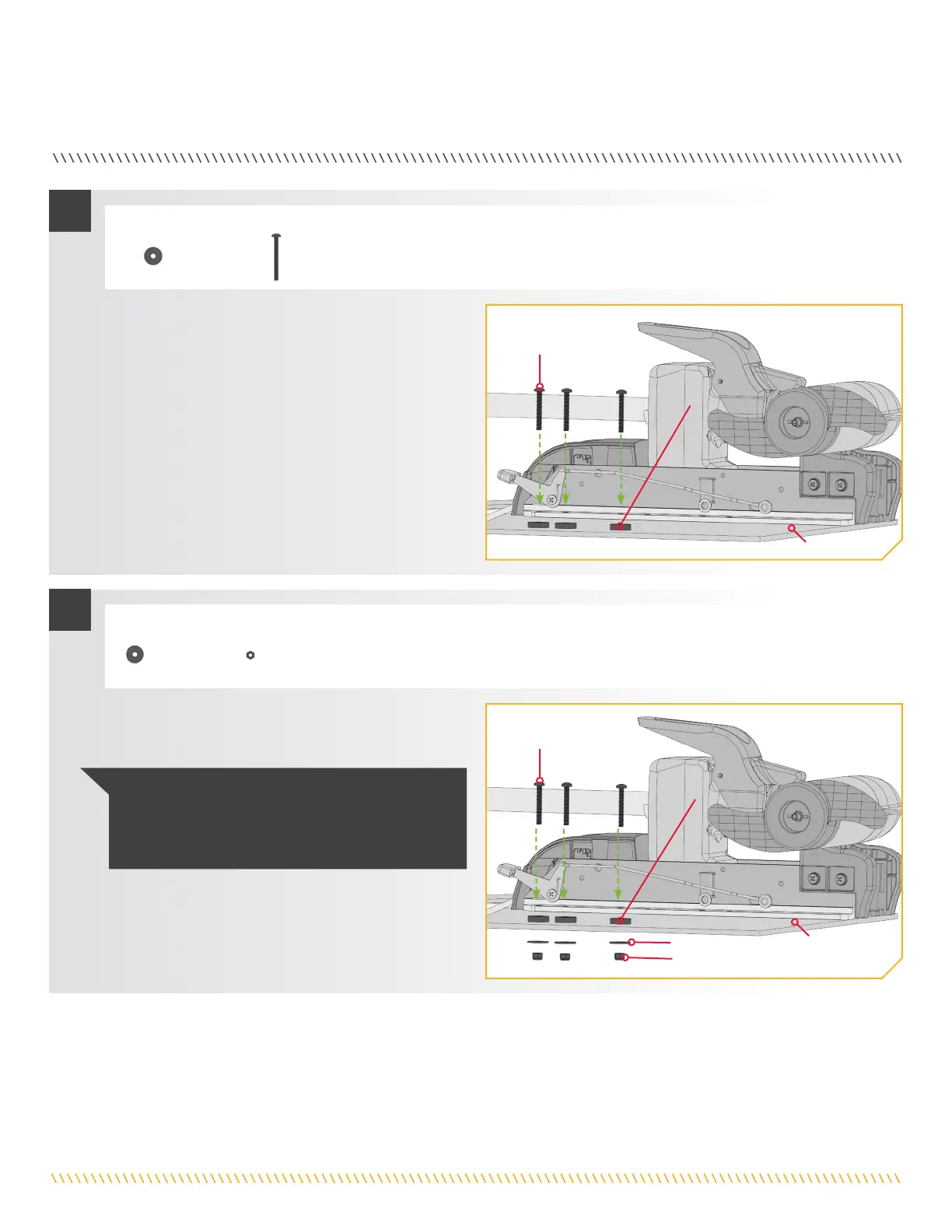

k. Put a 1/4-20 x 3-1/2" (Item #1) Mounting Bolt in
each of the drilled locations. The Mounting Bolt
should pass through the Base Extrusion and the
boat deck. If the Rubber Washers (Item #4) are
used, they should sit between the Base Extrusion
and boat deck. Make sure to secure the motor with
screws on each side of the Base Extrusion.
ITEM(S) NEEDED
#1 x 6
#4 x 6
7
l. Place a Flat Washer (Item #2) and then a Nylock Nut
(Item #3) at the end of each Mounting Bolt as shown
and secure. Make sure all hardware is secure.
#2 x 6 #3 x 6
NOTICE: To prevent seizing of the stainless steel
hardware, do not use high speed installation tools.
Wetting the screws or applying an anti-seize may help
prevent seizing.
8
ITEM(S) NEEDED
Mounting Bolt
Rubber WasherRubber Washer
Boat DeckBoat Deck
Mounting Bolt
Rubber WasherRubber Washer
Nylock Nut
Flat Washer
Boat DeckBoat Deck
