INSTALLING THE RIPTIDE ULTERRA
NOTICE: To prevent seizing of the stainless steel
hardware, do not use high speed installation tools.
Wetting the screws or applying an anti-seize may
help prevent seizing.
NOTICE: The Long Bolts, Flat Washers and Nylock
Nut are not used when installing the Riptide Ulterra
with a Quick Release Bracket.
Power Tilt
Mounting Slots
Clipped
Washer
Quick Release Bracket
Hex Head Bolt
#2 x 3 #5 x 3 #4 x 3
#6 x 3 #3 x 3
ITEM(S) NEEDED

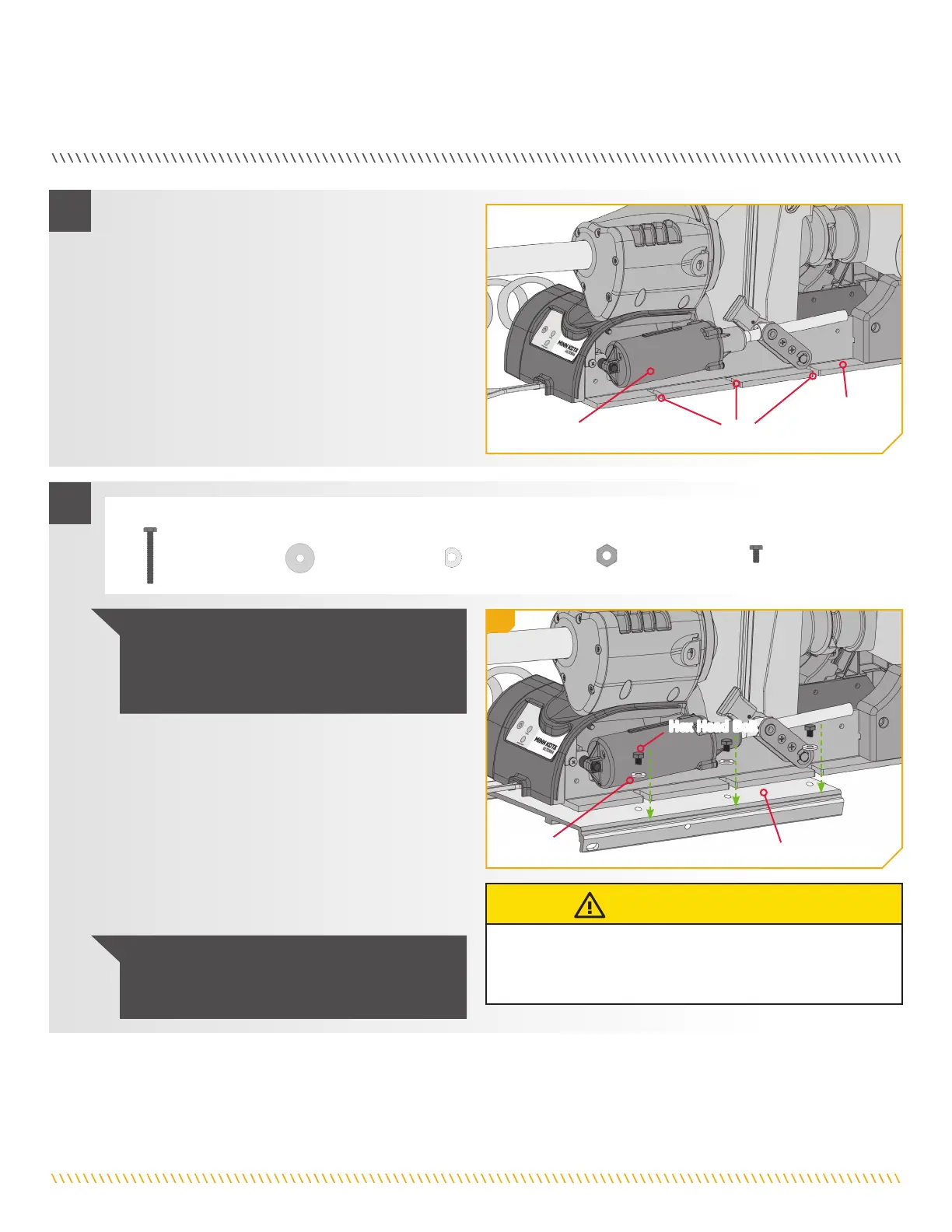

m. Mount the motor to the boat using the provided
hardware. Place the installation hardware for the
side of the Motor where the Power Tilt is located
first. This is the opposite side of the Base Extrusion
from where the Extension Damper was removed.
The base of the Motor where the Power Tilt is
located has Mounting Slots and the side where the
Extension Damper is located has Mounting Holes.
n. If installing with a Quick Release Bracket, install
the motor with the Hex Head Bolts (Item #3)
and Clipped Washers (Item #4). Orientate the
Clipped Washers so that the flat side of the washer
is towards the Base Extrusion. The Bolt should
pass through the Clipped Washer and into a
Quick Release Bracket. Leave at least 1/4" space
between the Hex Head Bolt and Clipped Washer in
order to slide the Base Extrusion under the Clipped
Washer and into place.
Base Extrusion
8
9
CAUTION
Use extra care to avoid pinching and damaging the sensor wires
that run along side of the Base Extrusion when installing and
tightening the motor mounting bolts.
